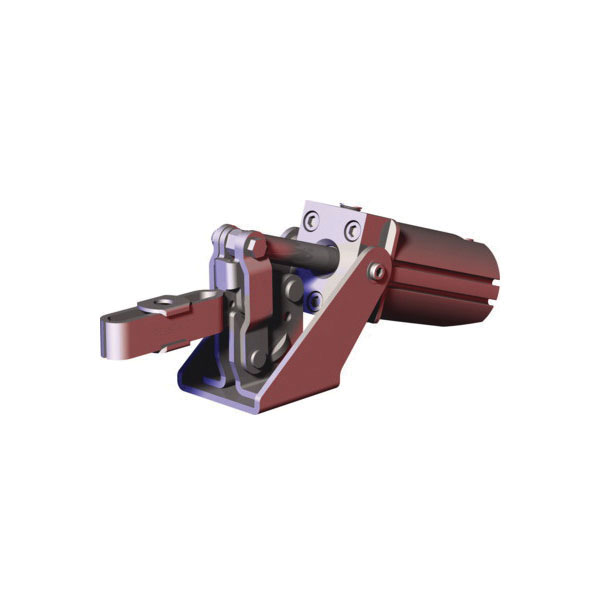

DESTACO 807-UE Medium Duty Standard Pneumatic Toggle Clamp, 1.26 in Cylinder Bore, 375 lbf Max Force, Surface Mount
DESTACO 807-UE Medium Duty Standard Pneumatic Toggle Clamp, 1.26 in Cylinder Bore, 375 lbf Max Force, Surface Mount
DESTACO 807-UE Medium Duty Standard Pneumatic Toggle Clamp, 1.26 in Cylinder Bore, 375 lbf Max Force, Surface Mount
- Brand: DESTACO
- Mfr# : 807-UE
- Item # : DST 807-UE
- UPC #: 697437580672
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates need for external flow controls
- Pneumatic version of 207 manual Toggle Clamp
- 807-U-LC replacement clamp assembly
DESCRIPTION
Pneumatic version of our manual clamp models 207-U and 207-S. Pneumatic cylinder features built in flow control for smooth operation and magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
DESTACO Pneumatic Toggle Clamp, Medium Duty Standard, Series: 807, 1.26 in Cylinder Bore, 375 lbf Maximum Force, 103 deg Swivel, G-1/8 Port, 145 psi Pressure, -14 to 194 deg F, Surface Mounting, 9.33 in L x 2.26 in W x 3 in H Dimensions
SPECIFICATIONS
| Type | : Medium Duty Standard |
| Series | : 807 |
| Cylinder Bore Size | : 1.26 in |
| Maximum Force | : 375 lbf |
| Swivel Angle | : 103 deg |
| Port Size | : G-1/8 |
| Pressure Rating | : 145 psi |
| Temperature Rating | : -14 to 194 deg F |
| Mounting Type | : Surface |
| Dimensions | : 9.33 in L x 2.26 in W x 3 in H |
APPLICATION INFO
| Application | : Assembly and Welding |
| Country of Origin | : US |
