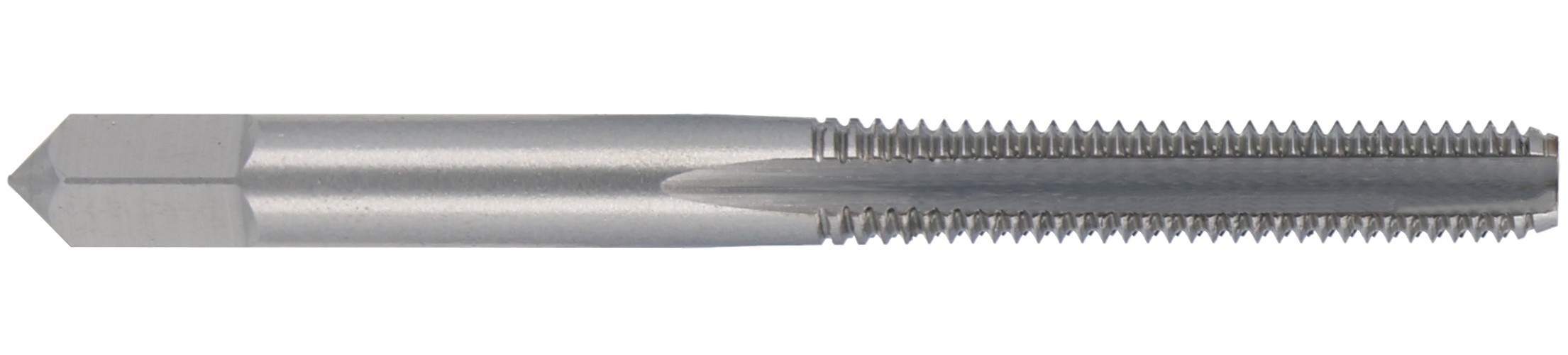

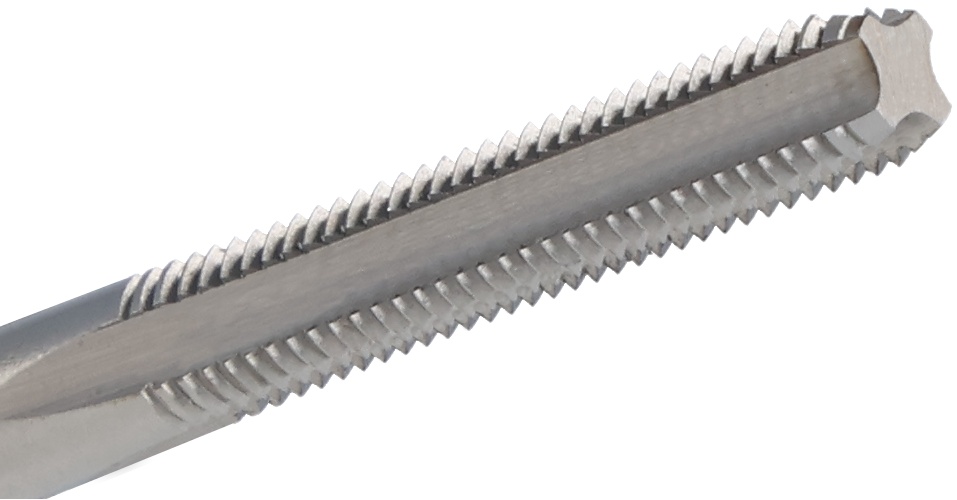

Cle-Line® C63211 0403M General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, M4x0.7 Thread, D4 Thread Limit, Bottoming Chamfer, 4 Flutes, Uncoated, HSS
Cle-Line® C63211 0403M General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, M4x0.7 Thread, D4 Thread Limit, Bottoming Chamfer, 4 Flutes, Uncoated, HSS
Cle-Line® C63211 0403M General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, M4x0.7 Thread, D4 Thread Limit, Bottoming Chamfer, 4 Flutes, Uncoated, HSS
- Brand: Cle-Line®
- Mfr# : C63211
- Item # : GRE C63211
- UPC #: 697334632115
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Bright finish adds lubricity and is ideal for drilling in non-ferrous materials like aluminum
DESCRIPTION
The CLE-LINE 0403M general-purpose metric straight-flute hand tap features high-speed steel (HSS) construction with a bright finish and bottoming chamfer, delivering accurate threading performance in steel, cast iron, and aluminum.
Cle-Line® Straight Flute Hand Tap, General Purpose Standard, Series: 0403M, Measurement System: Metric, Ground Thread Standard, M4x0.7 Thread, Bottoming Chamfer, 4 Flutes, HSS, Uncoated, Right Hand Cutting Direction, 19.05 mm Thread Length, 53.97 mm Overall Length, 4.27 mm Shank Diameter, Cast Iron, Steel and Non-Ferrous Materials Material Application, D4 Thread Limit
SPECIFICATIONS
| Type | : General Purpose Standard |
| Series | : 0403M |
| Measurement System | : Metric |
| Thread Size | : M4x0.7 |
| Chamfer Type | : Bottoming |
| Number of Flutes | : 4 |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Cutting Direction | : Right Hand |
| Thread Length | : 19.05 mm |
| Overall Length | : 53.97 mm |
| Shank Diameter | : 4.27 mm |
| Material Application | : Cast Iron, Steel and Non-Ferrous Materials |
| Thread Limit | : D4 |
APPLICATION INFO
| Standard/Approvals | : USCTI 302 |
| Application | : For bottoming hole and maintenance applications |
| Country of Origin | : CN |
