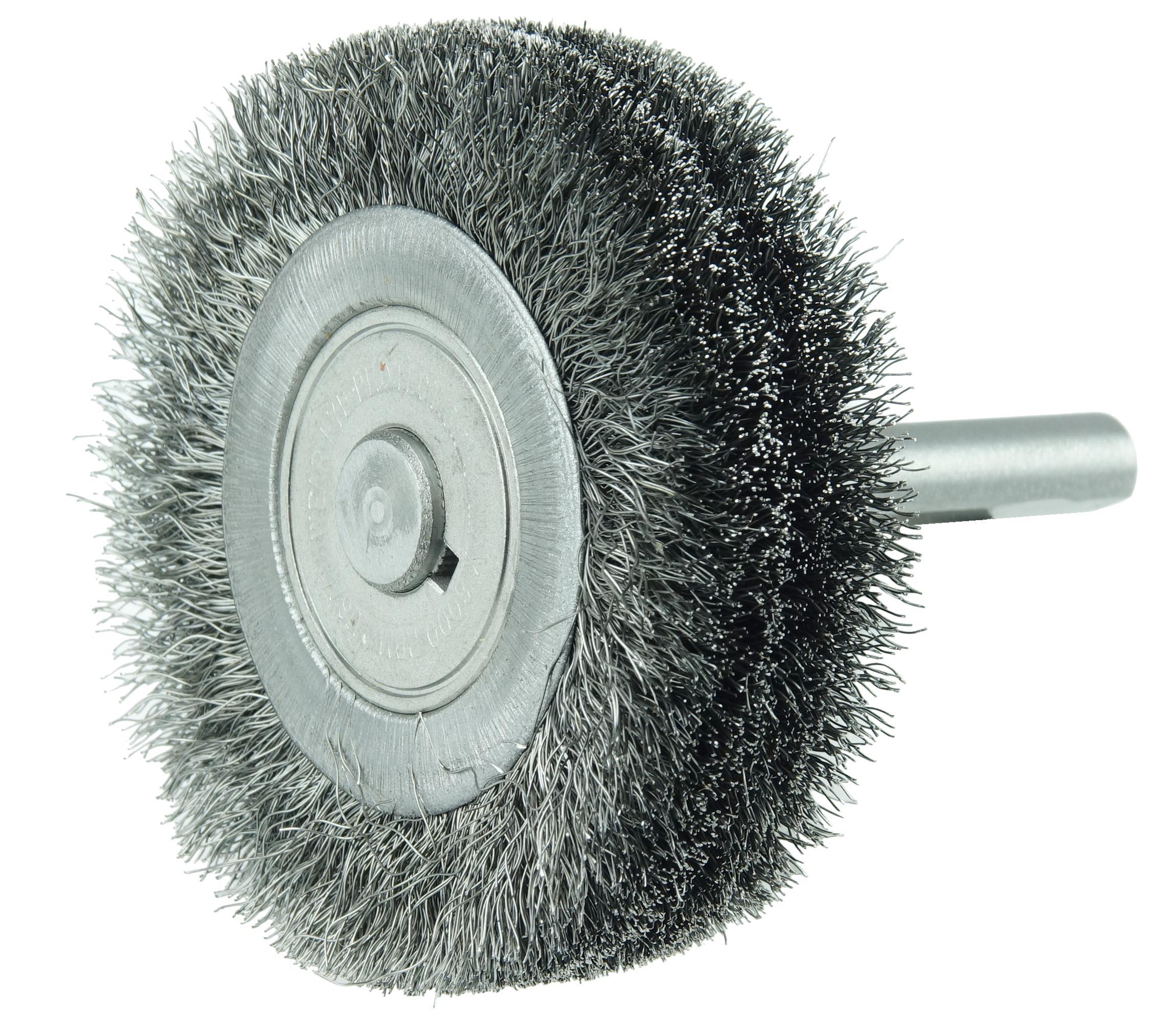

Bore-Rx™ 17218 Crosshole Wheel Brush, 3 in Dia Brush, 1 in W Face, 0.008 in Dia Crimped Filament/Wire
Bore-Rx™ 17218 Crosshole Wheel Brush, 3 in Dia Brush, 1 in W Face, 0.008 in Dia Crimped Filament/Wire
Bore-Rx™ 17218 Crosshole Wheel Brush, 3 in Dia Brush, 1 in W Face, 0.008 in Dia Crimped Filament/Wire
- Brand: Bore-Rx™
- Mfr# : 17218
- Item # : WEI 17218
- UPC #: 012382172183
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Crimped wire wheels with a permanently-attached 1/4 in stem or shank are primarily intended for use on high speed die grinders
- Although they can also be mounted onto a drill, the speed and power of that tool will light weight the effectiveness of the brush
- Featuring Weiler's solid ring construction, these radial wheels are available in heat-treated steel, type 302 stainless steel and brass wire
DESCRIPTION
Weiler® crimped wire Bore-Rx™ brushes are designed for automated use in CNC machining centers and dedicated equipment. They are densely filled for high aggression and long tool life and feature a 3/8 in diameter steel stem with a flat for use in a collet or end mill holder. Bore-Rx™ brushes are ideal tools for removing burrs from internal edges. Since they can eliminate manual deburring operations, these internal brushing tools help to improve part to part consistency and reduce direct labor costs. Bore-Rx™ brushes are available in sizes ranging from 3/4 to 4 in Dia and they are designed to be interpolated within bore sizes that are larger than the brush diameter.
Bore-Rx™ Wheel Brush, Crosshole, 3 in Brush Dia, 1 in Face Width, Crimped Filament/Wire, 0.008 in Filament/Wire Diameter, Stainless Steel Fill, 6000 rpm Maximum, Stem Attachment, 3/8 in Shank Dia
SPECIFICATIONS
| Type | : Crosshole |
| Brush Diameter | : 3 in |
| Face Width | : 1 in |
| Filament/Wire Type | : Crimped |
| Filament/Wire Diameter | : 0.008 in |
| Fill Material | : Stainless Steel |
| Maximum Speed | : 6000 rpm |
| Attachment Type | : Stem |
| Shank Diameter | : 3/8 in |
APPLICATION INFO
| Standard/Approvals | : ANSI B165.1|CSA Approved |
| Application | : For deburring internal edges |
| Country of Origin | : US |
