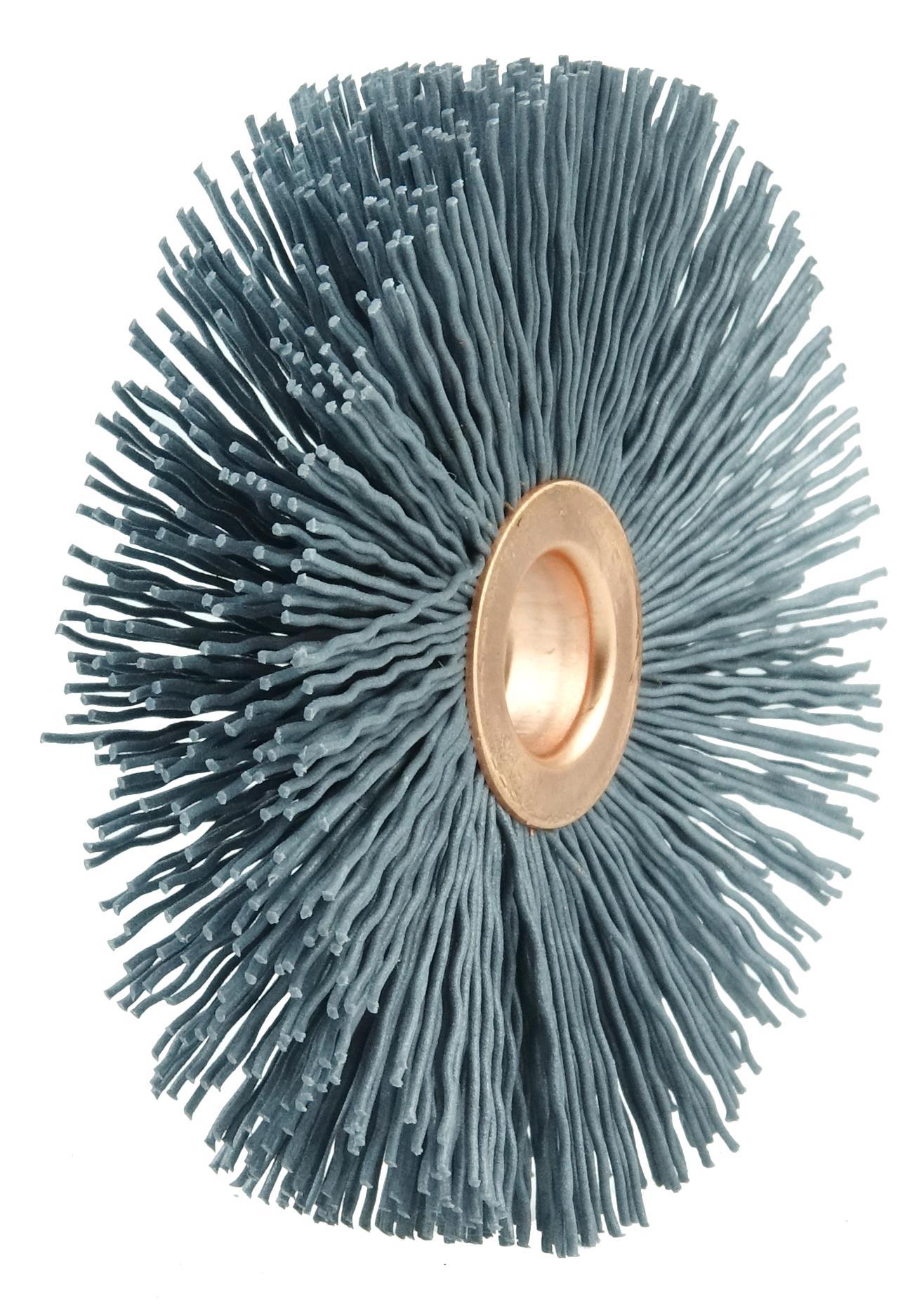

Nylox® 16263 Small Diameter Carbide Burr, 3 in Dia Brush, 1/2 in W Face, 0.04 in Dia Crimped/Round Filament/Wire, 1/2 in Arbor Hole
Nylox® 16263 Small Diameter Carbide Burr, 3 in Dia Brush, 1/2 in W Face, 0.04 in Dia Crimped/Round Filament/Wire, 1/2 in Arbor Hole
Nylox® 16263 Small Diameter Carbide Burr, 3 in Dia Brush, 1/2 in W Face, 0.04 in Dia Crimped/Round Filament/Wire, 1/2 in Arbor Hole
- Brand: Nylox®
- Mfr# : 16263
- Item # : WEI 16263
- UPC #: 012382162634
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Weiler's small diameter crimped wire wheels feature a plain arbor hole for use on a variety of portable tools and stationary machines
- Featuring Weiler's solid ring construction, these radial brushes are available in heat-treated steel, type 302 stainless steel and brass wire for use in a wide variety of applications
DESCRIPTION
Weiler® offers the widest assortment of small diameter radial wheels for addressing recesses and internal features, or delivering a targeted brushing action to a specific area on a part. Small diameter Burr-Rx™ wheels feature Weiler® advanced black ceramic grain filament which delivers up to a 400% greater edge cutting action in comparison to traditional silicon carbide and aluminum oxide filaments for the fastest, most aggressive deburring action for minimum cycle times and maximum media life.
Nylox® Carbide Burr, Small Diameter, 3 in Brush Dia, 1/2 in Face Width, 1/2 in Arbor Hole Size, Crimped/Round Filament/Wire, 0.04 in Filament/Wire Diameter, Nylon/Silicon Carbide Fill, 1 in Trim Length, 10000 rpm Maximum, Unthreaded Arbor Attachment, 1/2 in Shank Dia
SPECIFICATIONS
| Type | : Small Diameter |
| Brush Diameter | : 3 in |
| Face Width | : 1/2 in |
| Arbor Hole Size | : 1/2 in |
| Filament/Wire Type | : Crimped/Round |
| Filament/Wire Diameter | : 0.04 in |
| Fill Material | : Nylon/Silicon Carbide |
| Trim Length | : 1 in |
| Maximum Speed | : 10000 rpm |
| Attachment Type | : Unthreaded Arbor |
| Shank Diameter | : 1/2 in |
APPLICATION INFO
| Standard/Approvals | : ANSI B165.1|PROP65: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov|CSA Approved |
| Application | : For addressing recesses and internal features, delivering a targeted brushing action, deburring keyways, slots and cross hole intersections, aerospace, honing and finishing of cylindrical bores |
| Country of Origin | : US |
