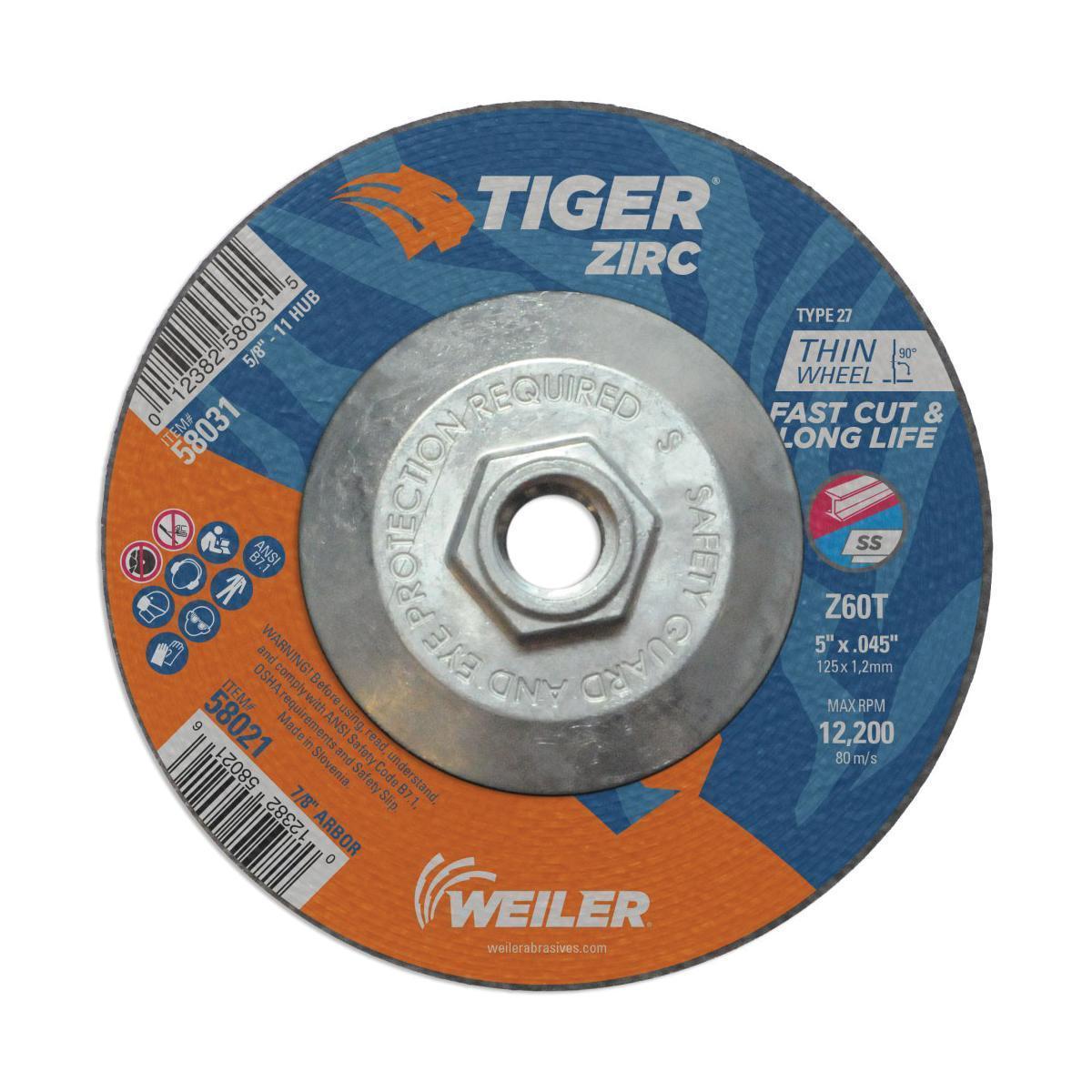

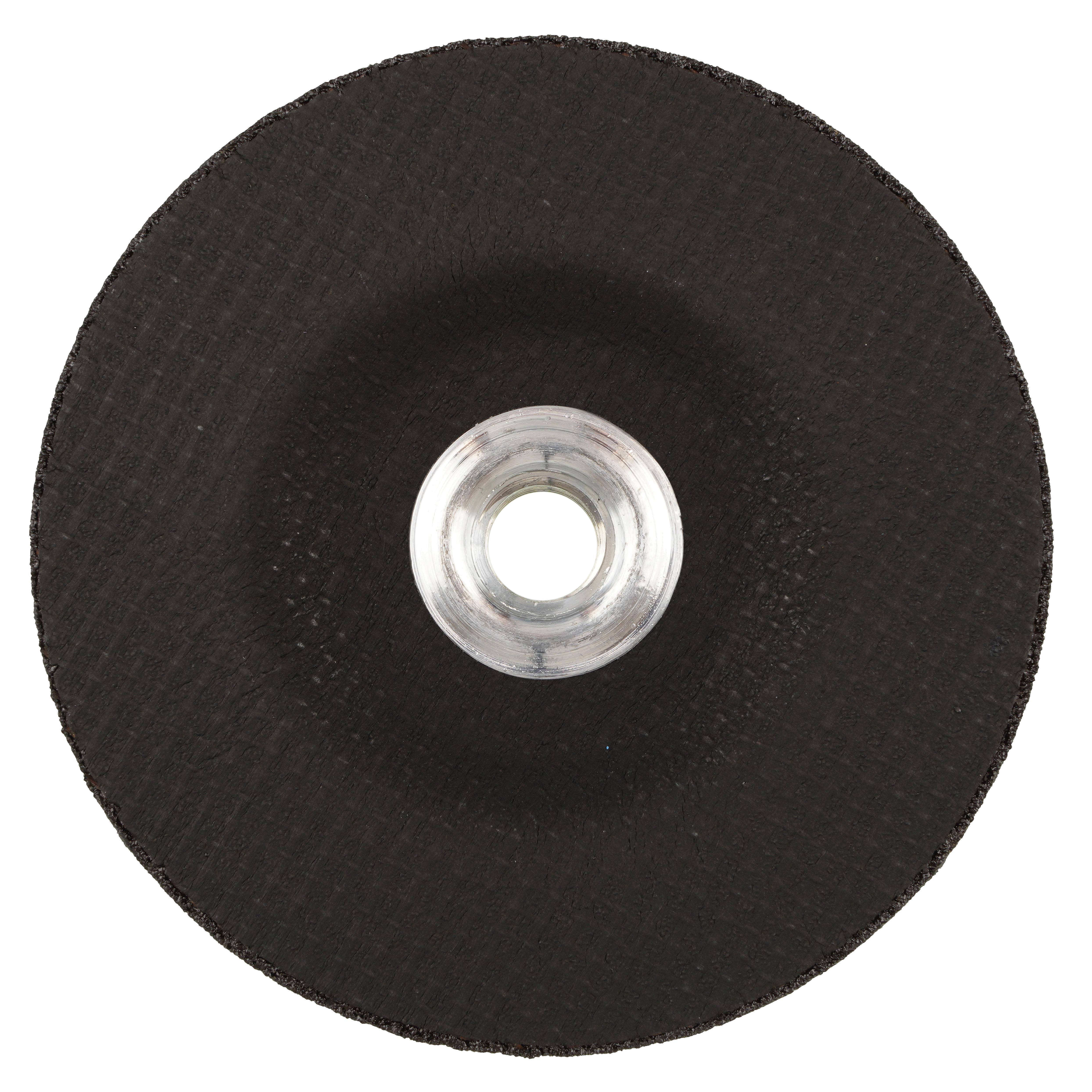

Tiger® Zirc 58031 Fast Cut Long Life High Performance Cutting Wheel, 5 in Dia x 0.045 in THK

Tiger® Zirc 58031 Fast Cut Long Life High Performance Cutting Wheel, 5 in Dia x 0.045 in THK

Tiger® Zirc 58031 Fast Cut Long Life High Performance Cutting Wheel, 5 in Dia x 0.045 in THK


  • Brand: Tiger® Zirc
  • Mfr# : 58031
  • Item # : WEI 58031
  • UPC #: 012382580315
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Weiler_58030_Catalog.pdf

FEATURES

  • Self-sharpening zirconia alumina grains deliver a fast cut rate for the full life of the wheel
  • Longer wheel life reduces change-overs and delivers more cuts
  • Optimum Use Line helps maximize wheel life, improving productivity and sustainability
  • Dual fiberglass reinforcement provides added strength for peace of mind when cutting
  • Smooth outer layer reduces friction for a smooth cut and less kickback
  • Small 5/8 in - 11 nutted metal hub allows for more usable surface area of the wheel in addition to providing quick spin-on, spin-off changeover

DESCRIPTION

Tiger® Zirc 5 in type 27 depressed center Cutting Wheel cut faster and last longer so you get proven productivity at an exceptional total cost. The self-sharpening zirconia alumina grain retain a high cut rate throughout the life of the wheel while a hard bond delivers long wheel life for heavy duty application. The flat profile of the wheel in combination with depressed center allow for a wide range of grinding angle (0 to 45). The 0.045 in wheel thickness is ideal for cutting tube, bar stock and large cross section with a right angle grinder. 5/8-11 UNC nutted metal hub allow for quick spin-on, spin-off changeover and eliminate cross threading or sticking to spindle due to heat build up. These wheel are designed for hardcore metal fabrication professional who need a high performance solution when cutting steel, structural steel and iron.

Tiger® Zirc Cutting Wheel, Fast Cut Long Life High Performance, 5 in Wheel Diameter, 0.045 in Wheel, Hub Connector, Z60T Grade, Wheel Type Number: Type 27, 12200 rpm Maximum, Hard/Resin Bond, Applicable Materials: Iron/Metal/Structural Steel, 5/8-11 UNC Center Hole Thread, Reinforced: Yes, Specifications Met: ANSI B7.1

SPECIFICATIONS

Type      :    Fast Cut Long Life High Performance
Wheel Diameter      :    5 in
Wheel Thickness      :    0.045 in
Connector Type      :    Hub
Grade      :    Z60T
Wheel Type Number      :    Type 27
Maximum Speed      :    12200 rpm
Bond Type      :    Hard/Resin
Applicable Materials      :    Iron/Metal/Structural Steel
Center Hole Thread Size      :    5/8-11 UNC
Reinforced      :    Yes
Specifications Met      :    ANSI B7.1

APPLICATION INFO

Application      :    Fabrication, Metal Fabrication, Pipeline, Shipbuilding, Steel Construction Industries, Grinder and Long Wheel Life On Heavy Duty Applications
Country of Origin      :    SI
