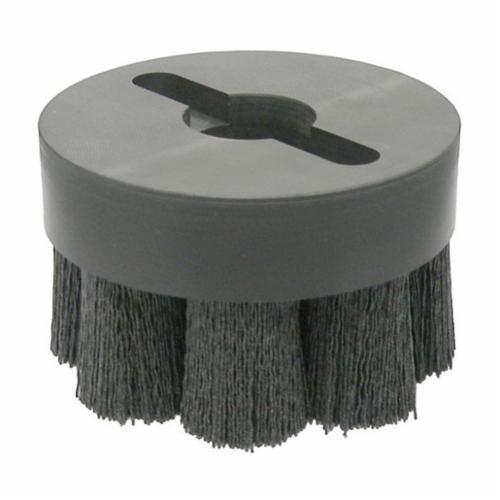

Bore-Rx™ 86113 Crimped Round Shell Mill Holder Straight Disc Brush, 4 in Dia Brush, 1-1/4 in Center Hole, 0.043 in Dia Filament/Wire, Ceramic Fill
Bore-Rx™ 86113 Crimped Round Shell Mill Holder Straight Disc Brush, 4 in Dia Brush, 1-1/4 in Center Hole, 0.043 in Dia Filament/Wire, Ceramic Fill
Bore-Rx™ 86113 Crimped Round Shell Mill Holder Straight Disc Brush, 4 in Dia Brush, 1-1/4 in Center Hole, 0.043 in Dia Filament/Wire, Ceramic Fill
- Brand: Bore-Rx™
- Mfr# : 86113
- Item # : WEI 86113
- UPC #: 012382861131
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Manufactured using a tufted filament configuration
- Longer trim length provides increased aggression, greater conformability and longer product life
- 400% greater edge cutting action compared to traditional silicon carbide, designed to mount directly to a standard shell mill holder
DESCRIPTION
Bore-Rx™, 86113, Disc Brush, Crimped Round Shell Mill Holder Straight, 4 in Diameter Brush, 1-1/4 in Center Hole, 0.043 in Dia Filament/Wire, Ceramic Fill, 1-1/2 in Trim Length, 2500 rpm Maximum, Fine Grade, 120 Grit
SPECIFICATIONS
| Type | : Crimped Round Shell Mill Holder Straight |
| Brush Diameter | : 4 in |
| Center Hole Size | : 1-1/4 in |
| Filament/Wire Diameter | : 0.043 in |
| Fill Material | : Ceramic |
| Trim Length | : 1-1/2 in |
| Maximum Speed | : 2500 rpm |
| Grade | : Fine |
| Grit | : 120 |
APPLICATION INFO
| Standard/Approvals | : ANSI B165.1|CSA Approved |
| Application | : Blending Tool Marks After Machining or Grinding, Deburring Face-Milled Casting or Forgings, Deburring Flat Surfaces on Machines Components and Improving Texture Characteristics on Machines or Ground Surfaces |
| Country of Origin | : MX |
