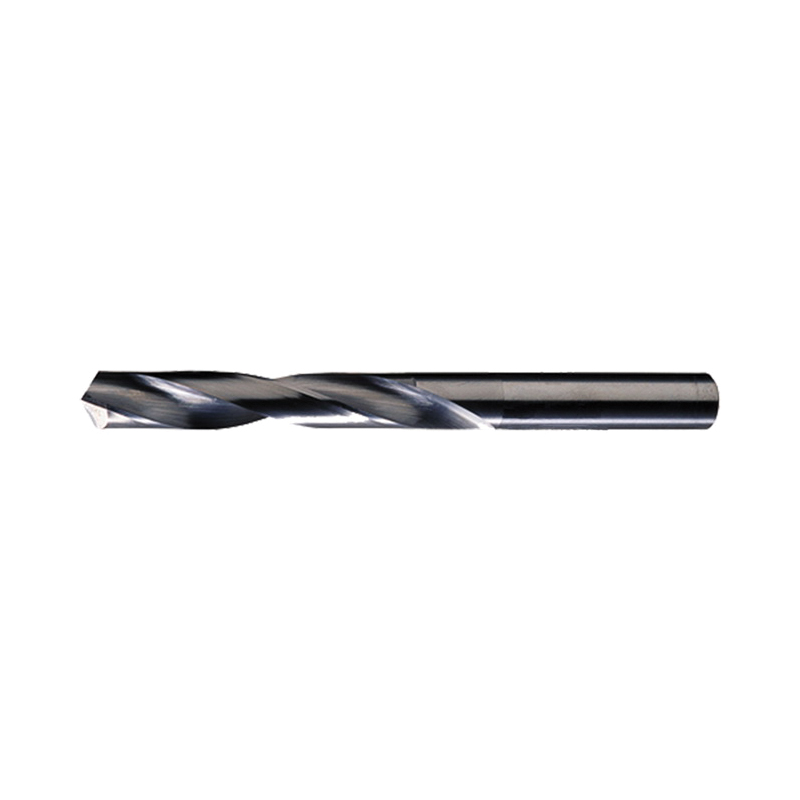

Cleveland® C47634 1727 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 118 deg Point, Carbide, Uncoated
Cleveland® C47634 1727 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 118 deg Point, Carbide, Uncoated
Cleveland® C47634 1727 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 118 deg Point, Carbide, Uncoated
- Brand: Cleveland®
- Mfr# : C47634
- Item # : GRE C47634
- UPC #: 697334476344
- Min. Order Qty: :
- Qty. Interval: :
SDS
FEATURES
- Bright finish adds lubricity and is ideal for drilling in non-ferrous materials like aluminum
- Solid carbide drills have the ability to retain hardness and a sharp edge at high temperatures
- 118 conventional point for rapid penetration
- Carbide drills are run at higher speeds than standard High Speed Steel drills
DESCRIPTION
The CLEVELAND 1727 is a heavy-duty carbide drill with a bright finish, featuring a 118° four-facet point and a low helix design that delivers efficient performance at two to three times the SFM of standard high-speed steel drills.
Cleveland® Jobber Length Drill Bit, Heavy Duty, Series: 1727, Imperial, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 3 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 1-3/4 in Flute Length, 7/32 in Dia x 1-1/4 in L Shank, Straight Shank, 118 deg Point, 4-Facet Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, Uncoated, Applicable Materials: Cast Iron, Non-Ferrous Metals and Stainless Steel
SPECIFICATIONS
| Type | : Heavy Duty |
| Series | : 1727 |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Fraction | : 7/32 in |
| Drill Size - Decimal Inch | : 0.2188 in |
| Overall Length | : 3 in |
| Cutting Depth | : 5XD |
| Number of Flutes | : 2 |
| Flute Type | : Right Spiral |
| Flute Length | : 1-3/4 in |
| Shank Size | : 7/32 in Dia x 1-1/4 in L |
| Shank Type | : Straight |
| Point Angle | : 118 deg |
| Point Type | : 4-Facet |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : Carbide |
| Through Coolant (Yes/No) | : No |
| Material | : Carbide |
| Finish | : Uncoated |
| Applicable Materials | : Cast Iron, Non-Ferrous Metals and Stainless Steel |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : General Applications |
| Country of Origin | : US |
