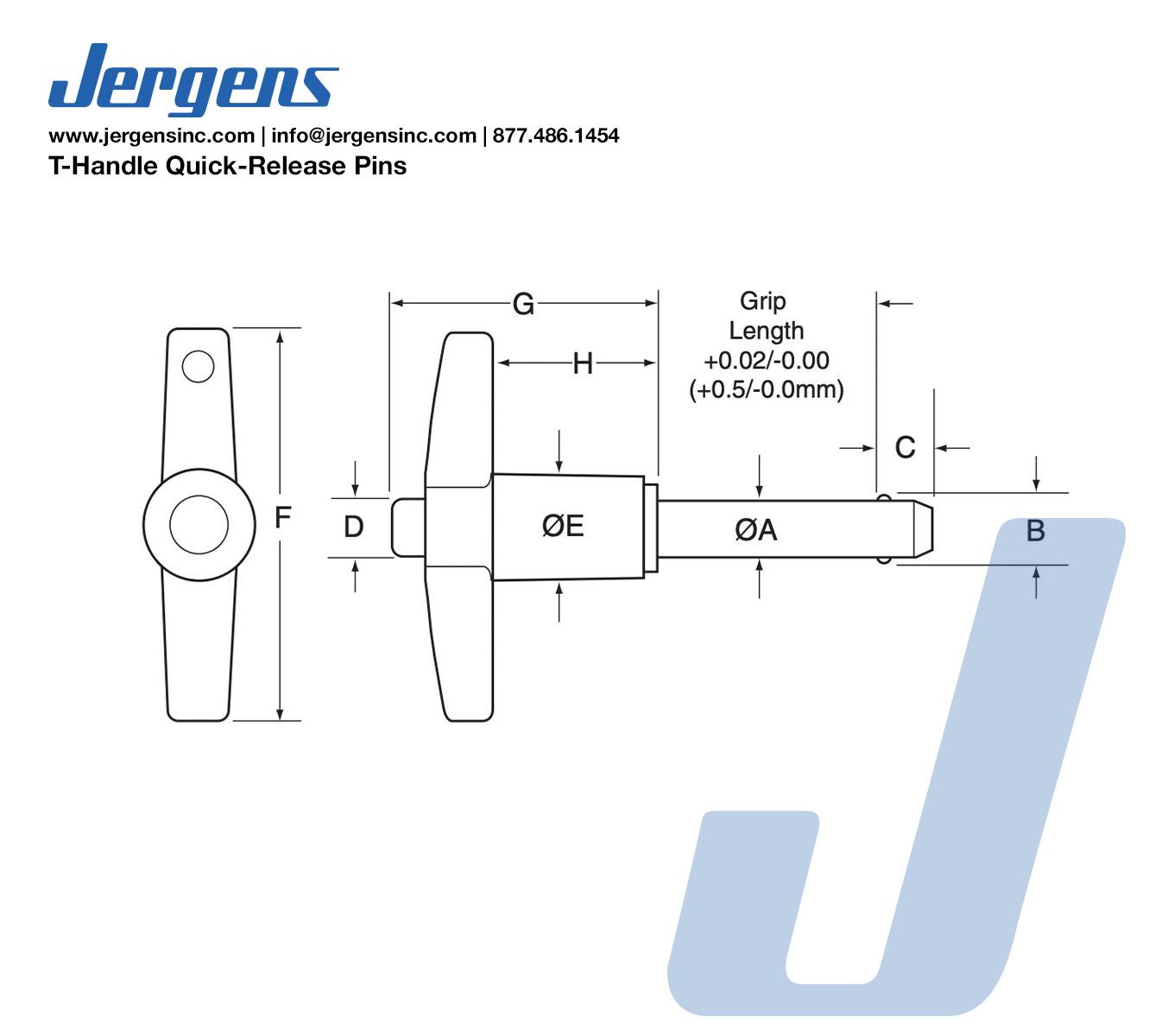

Jergens® 851054 Quick-Release Pin, 12 mm Dia, T-Handle Handle, Anodized Aluminum/Cast Aluminum/17-4 PH Heat Treated Stainless Steel

Jergens® 851054 Quick-Release Pin, 12 mm Dia, T-Handle Handle, Anodized Aluminum/Cast Aluminum/17-4 PH Heat Treated Stainless Steel

Jergens® 851054 Quick-Release Pin, 12 mm Dia, T-Handle Handle, Anodized Aluminum/Cast Aluminum/17-4 PH Heat Treated Stainless Steel


  • Brand: Jergens®
  • Mfr# : 851054
  • Item # : JER 851054
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Jergens_803000_Catalog.pdf

DESCRIPTION

Jergens T-Handle Kwik-Lok® Pins provide a firm, even grip for smooth comfortable operation. The stainless steel construction and smart engineering of our Kwik-Lok® Pins resist corrosion in harsh environments. Experience quick, easy positive engagement and high holding strengths for applications requiring frequent, repetitive use.Material:Handle: Black Cast AluminumButton: Blue Anodized AluminumPin Body: Heat Treated 17-4 PH Stainless SteelSPECS: MS17985 & NAS1333-NAS1343Includes hole and split ring for easy attachment of optional lanyardNote:May be ordered with (4) locking balls for additional locking element tensile strength.Special materials, grip length, and longer C dimensions upon request.Lead times may vary on non-stock items. If requesting large quantities or high volume please contact customer service via [email protected] or (866) 594-5565. For a self-service alternative, try our Quick Quote form!

Jergens®, 851054, Quick-Release Pin, 12 mm Diameter, T-Handle, Anodized Aluminum/Cast Aluminum/17-4 PH Heat Treated Stainless Steel, 144 kN Double Shear Minimum, Cast Aluminum Handle, 50 mm Usable Length

SPECIFICATIONS

Diameter      :    12 mm
Handle Type      :    T-Handle
Material      :    Anodized Aluminum/Cast Aluminum/17-4 PH Heat Treated Stainless Steel
Double Shear Minimum      :    144 kN
Handle Material      :    Cast Aluminum
Usable Length      :    50 mm

APPLICATION INFO

Application      :    For applications requiring frequent, repetitive use
Country of Origin      :    US
