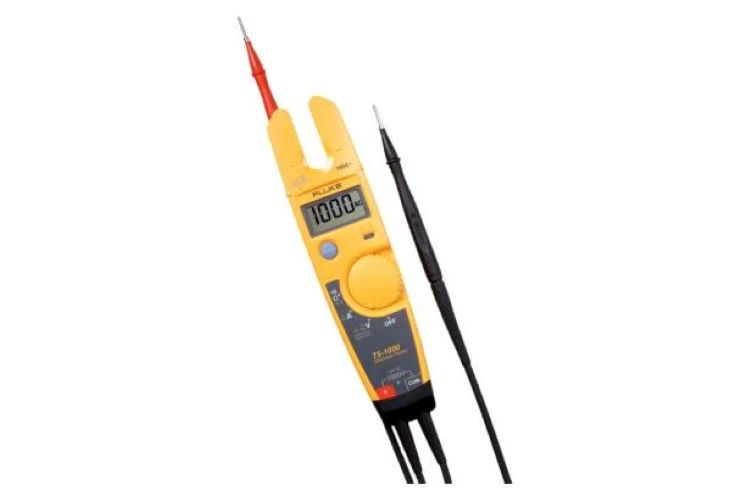

Fluke® T5-1000-USA Electrical Tester Clamp Meter With Open Jaw, 100 A, 1000 V AC, 50/60 Hz

Fluke® T5-1000-USA Electrical Tester Clamp Meter With Open Jaw, 100 A, 1000 V AC, 50/60 Hz

Fluke® T5-1000-USA Electrical Tester Clamp Meter With Open Jaw, 100 A, 1000 V AC, 50/60 Hz


  • Brand: Fluke®
  • Mfr# : T5-1000-USA
  • Item # : FLU T5-1000-USA
  • UPC #: 095969053112
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fluke_T5-1000-USA_Catalog.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fluke_T5-1000-USA_Instruction_Installation_Manual.pdf

DESCRIPTION

Electrical tester with OpenJaw™ current, 1000 V and 4 mm detachable probes. The Fluke® T5 electrical testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw™ current lets you check current up to 100 A - without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach™ test probes are customized for National electric standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt.

Fluke® Clamp Meter, Electrical Tester, 100 A, 1000 V AC Electrical Rating, 50/60 Hz Frequency, 3% +/-3 Counts at 50/60 Hz AC Current Accuracy, 1.5% +/-2 Digits, 1% +/- 1 Digits Voltage Accuracy, 14 to 122 deg F Operating, 10.51 x 2.99 x 2.01 in Dimensions, Hard Plastic

SPECIFICATIONS

Type      :    Electrical Tester
Electrical Ratings      :    100 A, 1000 V AC
Frequency Rating      :    50/60 Hz
AC Current Accuracy      :    3% +/-3 Counts at 50/60 Hz
Voltage Accuracy      :    1.5% +/-2 Digits, 1% +/- 1 Digits
Operating Temperature      :    14 to 122 deg F
Dimensions      :    10.51 x 2.99 x 2.01 in
Material      :    Hard Plastic

APPLICATION INFO

Standard/Approvals      :    UL Listed|CSA Certified|VDE Approved|ECCN: 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation
Application      :    For measuring voltage, continuity and current

Documents

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fluke_T5-1000-USA_Catalog.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fluke_T5-1000-USA_Instruction_Installation_Manual.pdf
