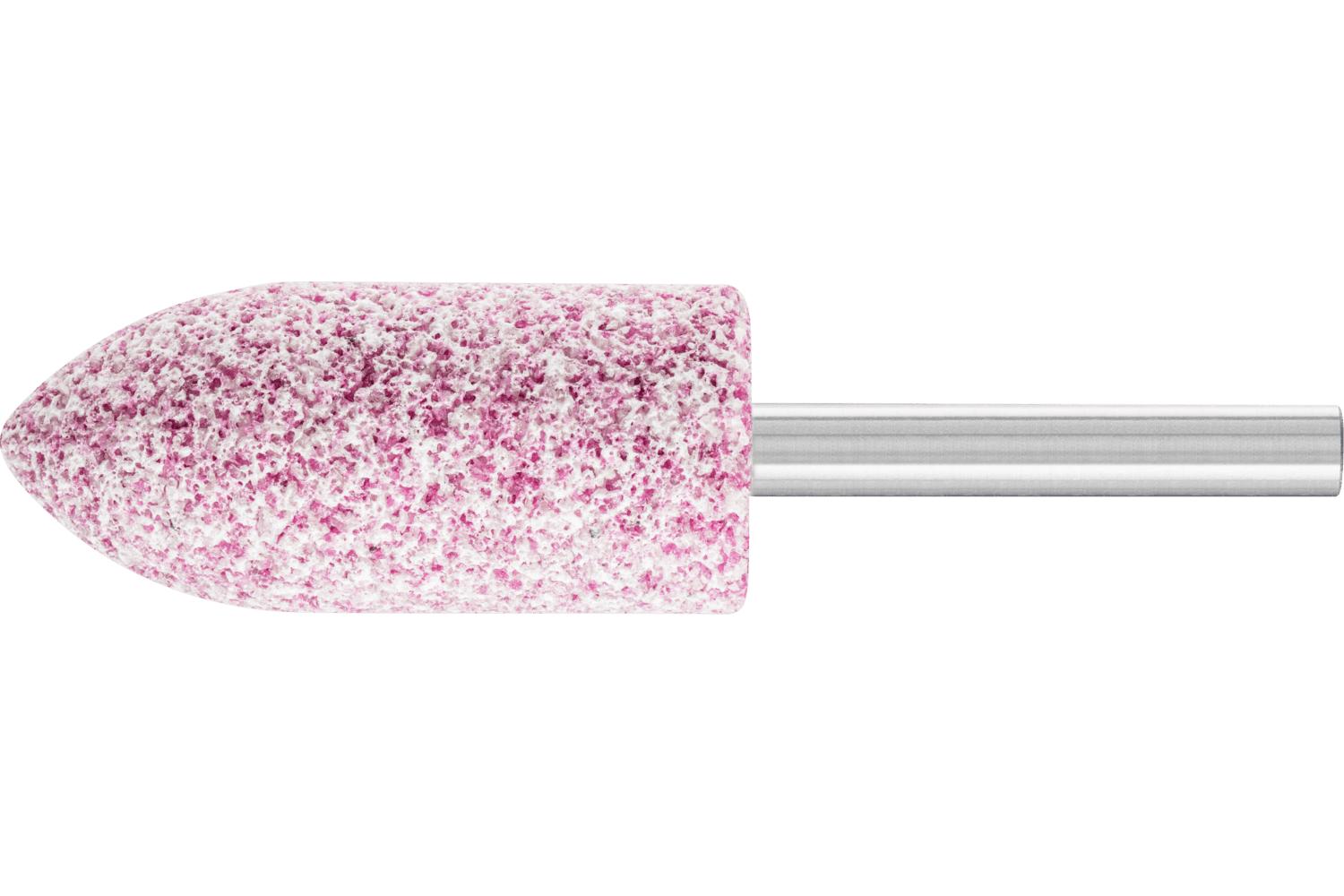

PFERD 39105047 A Series Mounted Point, A11 Point, 7/8 in Dia x 2 in L Head, 1/4 in Dia Shank
PFERD 39105047 A Series Mounted Point, A11 Point, 7/8 in Dia x 2 in L Head, 1/4 in Dia Shank
- Brand: PFERD
- Mfr# : 39105047
- Item # : PFD 31060
- UPC #: 097758310604
- Min. Order Qty: :
- Qty. Interval: :
Catalog
VIDEO LINK
FEATURES
- Hardness grade M mounted points are made of a mix of dark red and white aluminum oxide grit in a vitrified bond
- Hardness grade M tools are ideal for general use on steel surfaces, providing high abrasive and stock removal rates
- High stock removal rate reduces grinding time and labor costs
- Cost reductions are achieved despite increased tool consumption, since the reduction in labor costs more than compensates tool costs
DESCRIPTION
PFERD offers a very extensive range of vitrified-bonded and resinoid-bonded mounted points and other grinding tools. Designed to meet individual grinding application needs,these products come in a broad range of grain types, grit sizes, hardness grades and shapes. The mounted points are manufactured on automated, state-of-the-art production lines to high standards of dimensional accuracy and stability, consistent quality and close tolerances.
PFERD Mounted Point, Series: A Series, A11 Point Shape Code, 7/8 in Head Dia, 2 in Head Length, 1/4 in Shank Dia, 1-1/2 in Shank Length, M Density/Hardness, 30 Grit, Extra Coarse Grade, Aluminum Oxide Abrasive, 19860 rpm Maximum, Vitrified Porous Bond, High Speed Steel and Steel Abrading Application
SPECIFICATIONS
| Series | : A Series |
| Point Shape Code | : A11 |
| Head Diameter | : 7/8 in |
| Head Length | : 2 in |
| Shank Diameter | : 1/4 in |
| Shank Length | : 1-1/2 in |
| Density/Hardness | : M |
| Grit | : 30 |
| Grade | : Extra Coarse |
| Abrasive Material | : Aluminum Oxide |
| Maximum Speed | : 19860 rpm |
| Bond Type | : Vitrified Porous |
| Abrading Application | : High Speed Steel and Steel |
APPLICATION INFO
| Standard/Approvals | : ANSI B7.1-2000|CSA Approved |
| Application | : For grinding of high speed steel components and weld dressing on steel structures |
| Country of Origin | : DE |
