PFERD 21728000 Tree Bur, Radius End, Tree Head, 1/2 in Dia Head, 1 in L of Cut, 2-3/4 in OAL, OMNI Cut

PFERD 21728000 Tree Bur, Radius End, Tree Head, 1/2 in Dia Head, 1 in L of Cut, 2-3/4 in OAL, OMNI Cut

PFERD 21728000 Tree Bur, Radius End, Tree Head, 1/2 in Dia Head, 1 in L of Cut, 2-3/4 in OAL, OMNI Cut


  • Brand: PFERD
  • Mfr# : 21728000
  • Item # : PFD 28000
  • UPC #: 097758280006
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PFERD_26557_Catalog.pdf

FEATURES

  • Performance line omni cut for versatile use
  • Significantly better stock removal rate than burs with a conventional double cut
  • Saves money and time with its very high stock removal rate on key materials
  • Comfortable working with reduced vibration and less noise

DESCRIPTION

PFERD produces an extensive range of top quality carbide burs and bi-metal hole saws. PFERD burs deliver very high stock removal performance over their entire service life, providing outstanding results in minimal time. With the innovative OMNI cut, PFERD has developed unique burs for versatile use on key materials such as steel and cast steel, stainless steel (INOX), non-ferrous metals and cast iron. The OMNI cut offers all the benefits of the tried-and-tested double cut, but its stock removal rate is up to 30% higher for steel. It enables comfortable working with reduced vibration and less noise. They also offer significant time savings and a high economic value.

PFERD Tree Bur, Radius, 1/2 in Head Dia, 1 in Length of Cut, 2-3/4 in Overall Length, Tree Head Shape, INOX Cut Type, 1/4 in Shank Dia, Carbide Head, Applicable Materials: Hard Aluminum Alloys, Bronze, Other Non-Ferrous Metals, Hard Non-Ferrous Metal, Stainless Steel (INOX), Case-Hardened Steels, Steel, Cast Steel, Hardened, Heat-Treated Steels Over 1200 N/sq-mm (Over 38 HRC), Steels up to 700 N/sq-mm (< 220 HB), Steel Materials with a Hardness Over 54 HRC, Annealed Cast Iron, Titanium, Titanium Alloys, White Annealed Cast Iron (GTW, GJMW), Tool Steels and Zinc, SF-5 Industry Specification

SPECIFICATIONS

End Type      :    Radius
Head Diameter      :    1/2 in
Length of Cut      :    1 in
Overall Length      :    2-3/4 in
Head Shape      :    Tree
Cut Type      :    INOX
Shank Diameter      :    1/4 in
Head Material      :    Carbide
Applicable Materials      :    Hard Aluminum Alloys, Bronze, Other Non-Ferrous Metals, Hard Non-Ferrous Metal, Stainless Steel (INOX), Case-Hardened Steels, Steel, Cast Steel, Hardened, Heat-Treated Steels Over 1200 N/sq-mm (Over 38 HRC), Steels up to 700 N/sq-mm (< 220 HB), Steel Materials with a Hardness Over 54 HRC, Annealed Cast Iron, Titanium, Titanium Alloys, White Annealed Cast Iron (GTW, GJMW), Tool Steels and Zinc
Industry Specification      :    SF-5

APPLICATION INFO

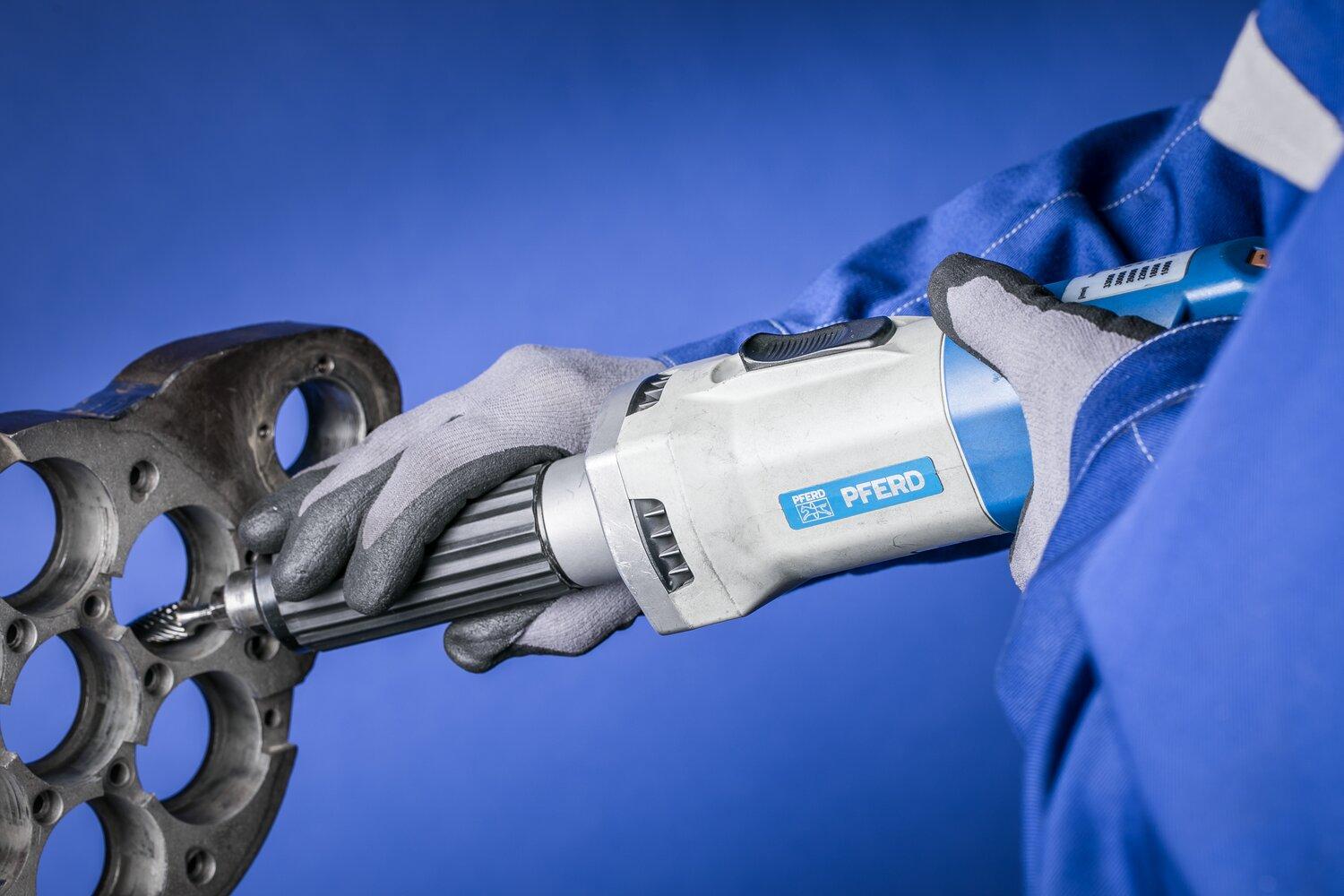

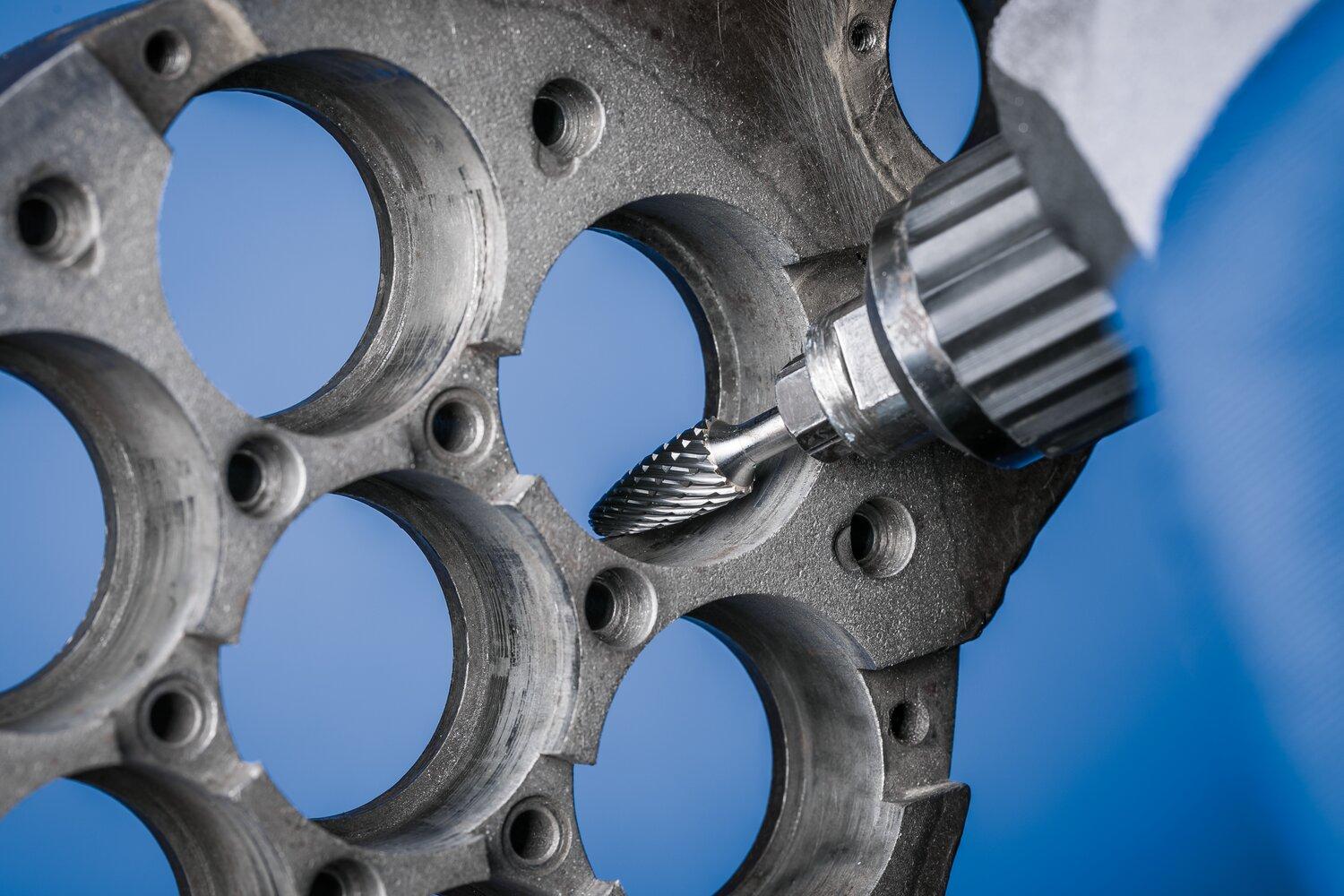

Application      :    Milling Out, Weld Dressing, Deburring, Cutting Out Holes, Surface Work, Milling, Flexible Shaft Drive, Straight Grinder, Robot, Stationary and Machine Tool
Country of Origin      :    DE
