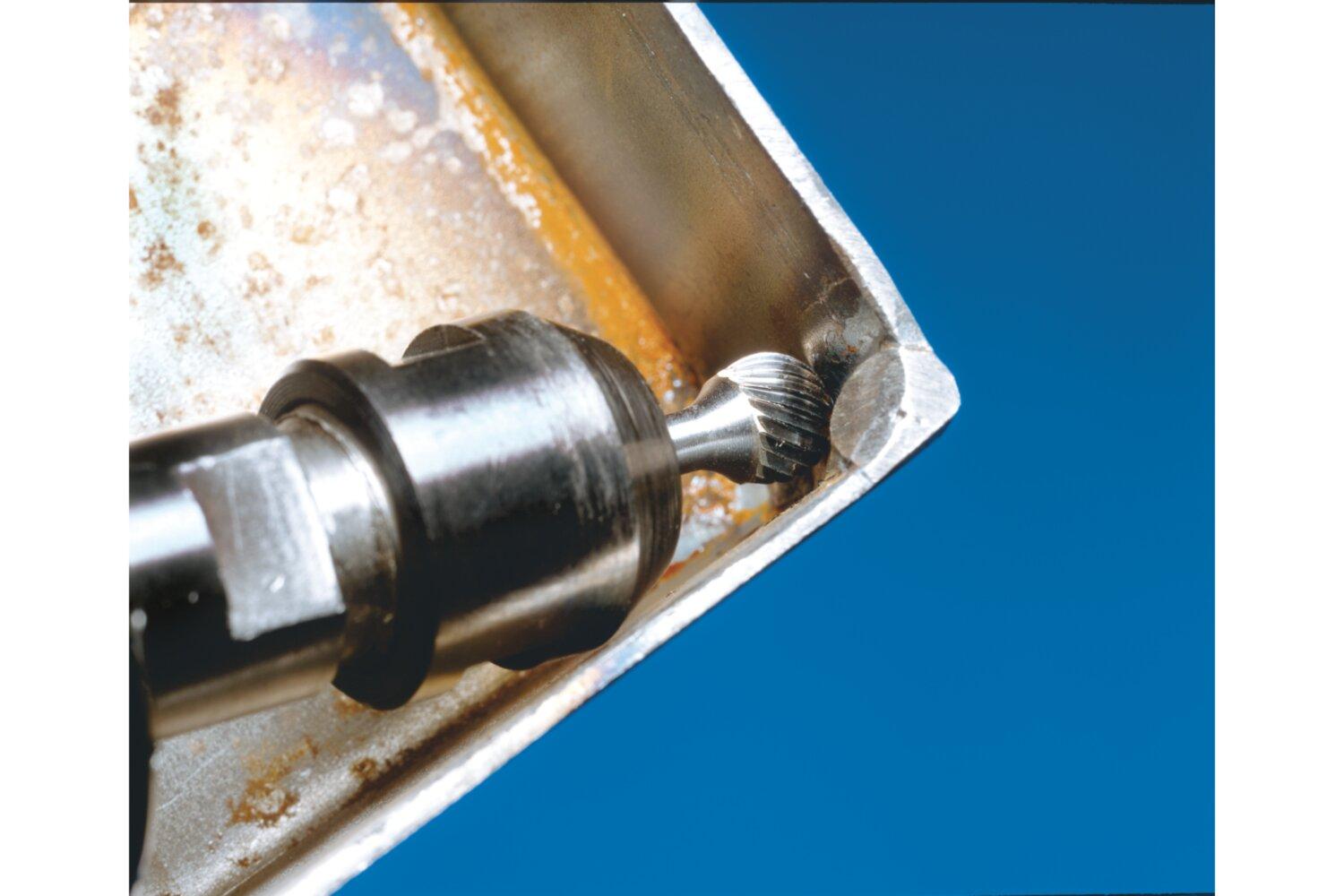

PFERD 21722244 High Performance Line TOUGH Cut Premium Grade Carbide Burr, Ball Head, 1/2 in Dia Head, 7/16 in L of Cut, 2-3/16 in OAL, Double Cut
PFERD 21722244 High Performance Line TOUGH Cut Premium Grade Carbide Burr, Ball Head, 1/2 in Dia Head, 7/16 in L of Cut, 2-3/16 in OAL, Double Cut
PFERD 21722244 High Performance Line TOUGH Cut Premium Grade Carbide Burr, Ball Head, 1/2 in Dia Head, 7/16 in L of Cut, 2-3/16 in OAL, Double Cut
- Brand: PFERD
- Mfr# : 21722244
- Item # : PFD 22244
- UPC #: 097758222440
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Innovative, special cuts providing exceptional impact-resistance
- These extremely durable, high performance cut patterns minimize tooth chipping, breakage, splintering and burr head failures
- The 3R and 3RS cuts can be used on materials up to 55 HRC
- Their extremely high impact-resistance means that they are perfectly suited for use as long shank variants
- Coarse and aggressive machining with high stock removal, even at low rpm
DESCRIPTION
PFERD produces an extensive range of top quality carbide burs and bi-metal hole saws. PFERD burs deliver very high stock removal performance over their entire service life, providing outstanding results in minimal time.
PFERD Carbide Burr, Premium Grade, Series: High Performance Line TOUGH Cut, 1/2 in Head Dia, 7/16 in Length of Cut, 2-3/16 in Overall Length, Ball Head Shape, Double Cut Type, 1/4 in Shank Dia, 1-3/4 in Shank Length, Tungsten Carbide Head, Bright Head Coating, 24000 rpm Maximum, Applicable Materials: Cast Iron, Cast Steel and Steel, SD-5 Industry Specification
SPECIFICATIONS
| Type | : Premium Grade |
| Series | : High Performance Line TOUGH Cut |
| Head Diameter | : 1/2 in |
| Length of Cut | : 7/16 in |
| Overall Length | : 2-3/16 in |
| Head Shape | : Ball |
| Cut Type | : Double |
| Shank Diameter | : 1/4 in |
| Shank Length | : 1-3/4 in |
| Head Material | : Tungsten Carbide |
| Head Coating | : Bright |
| Maximum Speed | : 24000 rpm |
| Applicable Materials | : Cast Iron, Cast Steel and Steel |
| Industry Specification | : SD-5 |
APPLICATION INFO
| Standard/Approvals | : PROP65: California to cause cancer. www.P65Warnings.ca.gov/product |
| Application | : Contouring, Bore Deburring and Build-Up Welding Preparations |
| Country of Origin | : DE |
