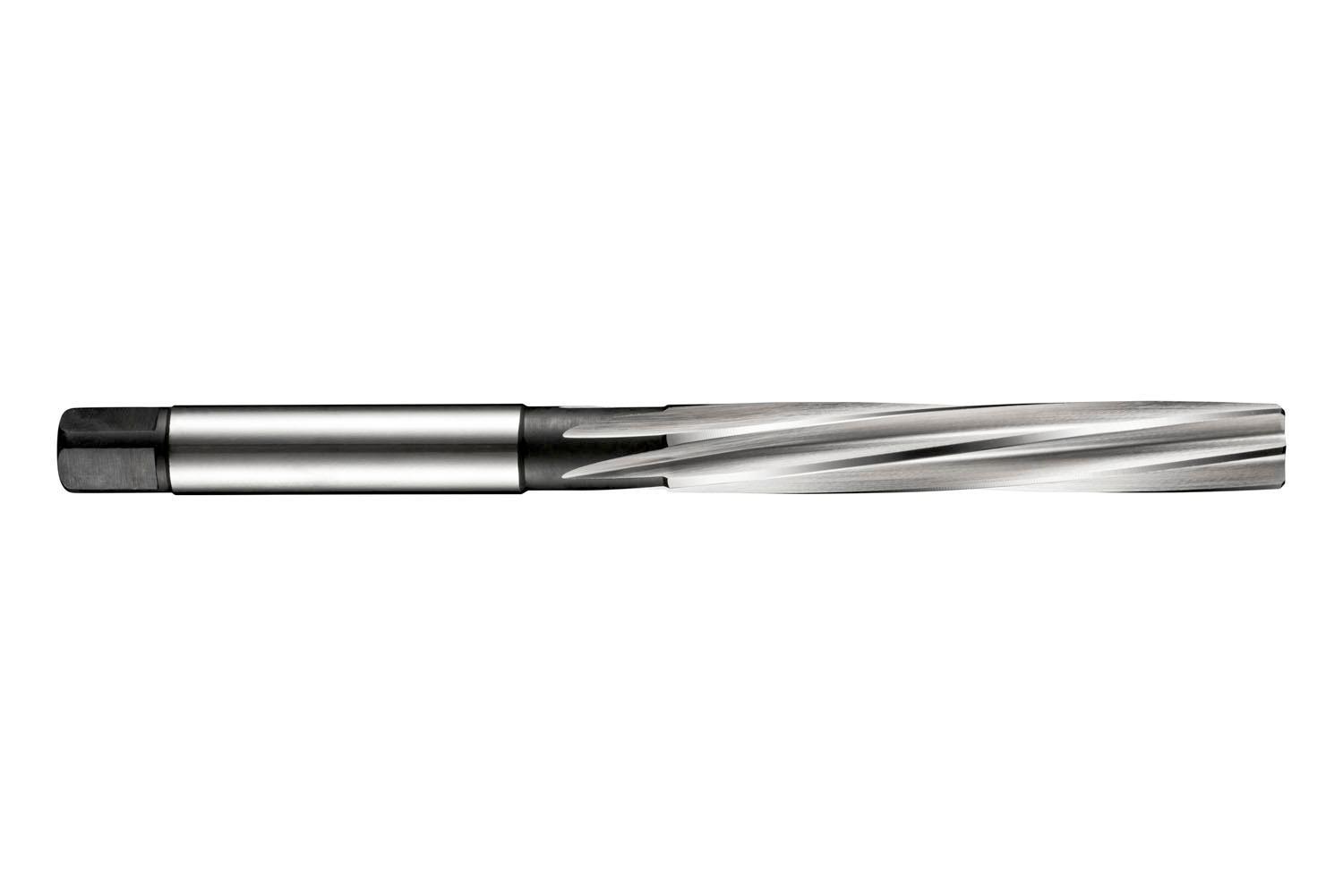

Dormer 5986291 B100 Cylindrical Maintenance Dormer Hand Reamer, 16 mm Dia x 175 mm OAL, Square Shank, Spiral Flute
Dormer 5986291 B100 Cylindrical Maintenance Dormer Hand Reamer, 16 mm Dia x 175 mm OAL, Square Shank, Spiral Flute
Dormer 5986291 B100 Cylindrical Maintenance Dormer Hand Reamer, 16 mm Dia x 175 mm OAL, Square Shank, Spiral Flute
- Brand: Dormer
- Mfr# : 5986291
- Item # : DPT 0048573
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- High speed steel provides good wear resistance and can be used in general purpose applications
- Spiral flute reamers are used in blind and through hole operations
- They are able to bridge interrupted cuts
- Standard reamers are constructed with a fixed diameter
- They are used only for holes that have a diameter equal to the reamer
- Widely used by hand for the final sizing of drilled holes
- The square on the shank allows it to be held in either a tap wrench or a vise depending on whether it is the reamer or the part that is rotating
- A long starting taper allows for ease of entry and accurate alignment
DESCRIPTION
Dormer Dormer Hand Reamer, Cylindrical Maintenance, Series: 2230M, 16 mm Dia, 175 mm Overall Length, Square Shank, 8 Flutes, Spiral Flute, 87 mm Flute Length, HSS, Uncoated, Right Hand Cutting, Applicable Materials: Ferrous and Non-Ferrous Materials
SPECIFICATIONS
| Type | : Cylindrical Maintenance |
| Series | : B100 |
| Diameter | : 16 mm |
| Overall Length | : 175 mm |
| Shank Type | : Square |
| Number of Flutes | : 8 |
| Flute Type | : Spiral |
| Flute Length | : 87 mm |
| Material | : HSS |
| Finish | : Uncoated |
| Cutting Direction | : Right Hand |
| Applicable Materials | : Ferrous and Non-Ferrous Materials |
APPLICATION INFO
| Standard/Approvals | : DIN 206 |
| Country of Origin | : DE |
