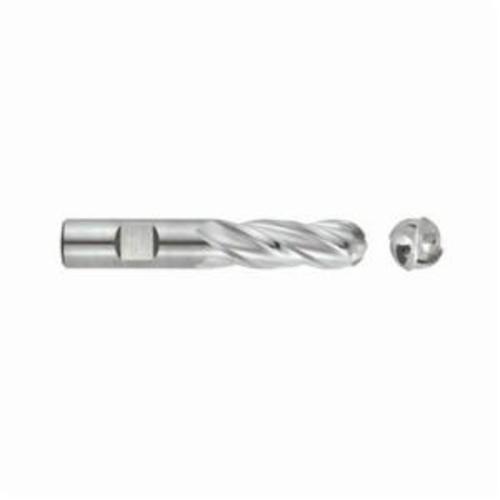

Seco Niagara Cutter N67272 SPB540 Ball End Center Cutting Long Length Single End End Mill, 3/8 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/4 in OAL, Uncoated
Seco Niagara Cutter N67272 SPB540 Ball End Center Cutting Long Length Single End End Mill, 3/8 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/4 in OAL, Uncoated
Seco Niagara Cutter N67272 SPB540 Ball End Center Cutting Long Length Single End End Mill, 3/8 in Dia Cutter, 1-1/2 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/4 in OAL, Uncoated
- Brand: Seco
- Mfr# : N67272
- Item # : NIA N67272
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
- Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
- 90 deg cutting edge
- 1.562 in L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- Ball nose end mills create contoured surfaces
- Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
- D - Cylindrical tool shape
DESCRIPTION
Seco Niagara Cutter End Mill, Ball End Center Cutting Long Length Single End, Series: SPB540, 3/8 in Diameter Cutter, 3-1/4 in Overall Length, 1-1/2 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: SPB540-0.375-D4-B.3-Z4, ISO Code: SPB540.375D4B.3Z4, M42 8% Cobalt, Uncoated
SPECIFICATIONS
| Type | : Ball End Center Cutting Long Length Single End |
| Series | : SPB540 |
| Cutter Diameter | : 3/8 in |
| Overall Length | : 3-1/4 in |
| Length of Cut | : 1-1/2 in |
| Number of Flutes | : 4 |
| Flute Type | : Spiral |
| Shank Diameter | : 3/8 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 30 deg |
| Shank Type | : Weldon Flat |
| ANSI Code | : SPB540-0.375-D4-B.3-Z4 |
| ISO Code | : SPB540.375D4B.3Z4 |
| Material | : M42 8% Cobalt |
| Finish | : Uncoated |
APPLICATION INFO
| Application | : For profiling and contouring in all materials |
| Country of Origin | : US |
