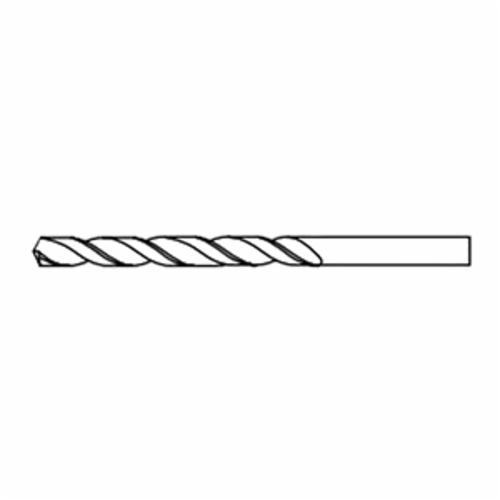

Cleveland® C09661 950E General Purpose Regular Helix Extra Length Drill, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 8 in OAL, HSS

Cleveland® C09661 GRE C09661

Cleveland® C09661 950E General Purpose Regular Helix Extra Length Drill, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 8 in OAL, HSS

Cleveland® C09661 950E General Purpose Regular Helix Extra Length Drill, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 8 in OAL, HSS

  • Brand: Cleveland®
  • Mfr# : C09661
  • Item # : GRE C09661
  • UPC #: 697334096610
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • HSS provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
  • Oxide prevents chip building, galling and welding on the work piece

DESCRIPTION

Cleveland® Extra Length Drill, General Purpose Regular Helix, Series: 950E, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 8 in Overall Length, 5-1/2 in Cutting Depth, 2 Flutes, Spiral Flute, 5-1/2 in Flute Length, 3/16 in Shank, Straight Shank, 118 deg Point, K-Notched/Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide/Steam Oxide, Applicable Materials: Alloy Tool Steel, Carbon Steel, Cast Iron, Low Carbons, Stainless Steel and Ferrous Metals, Specifications Met: ASME B94.11M, No Through Coolant

SPECIFICATIONS

Type      :    General Purpose Regular Helix
Series      :    950E
Drill Size - Fraction      :    3/16 in
Drill Size - Decimal Inch      :    0.1875 in
Overall Length      :    8 in
Cutting Depth      :    5-1/2 in
Number of Flutes      :    2
Flute Type      :    Spiral
Flute Length      :    5-1/2 in
Shank Size      :    3/16 in
Shank Type      :    Straight
Point Angle      :    118 deg
Point Type      :    K-Notched/Radial
Cutting Direction      :    Right Hand
Cutting Edge Material      :    HSS
Material      :    HSS
Finish      :    Black Oxide/Steam Oxide
Applicable Materials      :    Alloy Tool Steel, Carbon Steel, Cast Iron, Low Carbons, Stainless Steel and Ferrous Metals
Specifications Met      :    ASME B94.11M
Through Coolant (Yes/No)      :    No

APPLICATION INFO

Application      :    For long reach and deeper drilling depth
