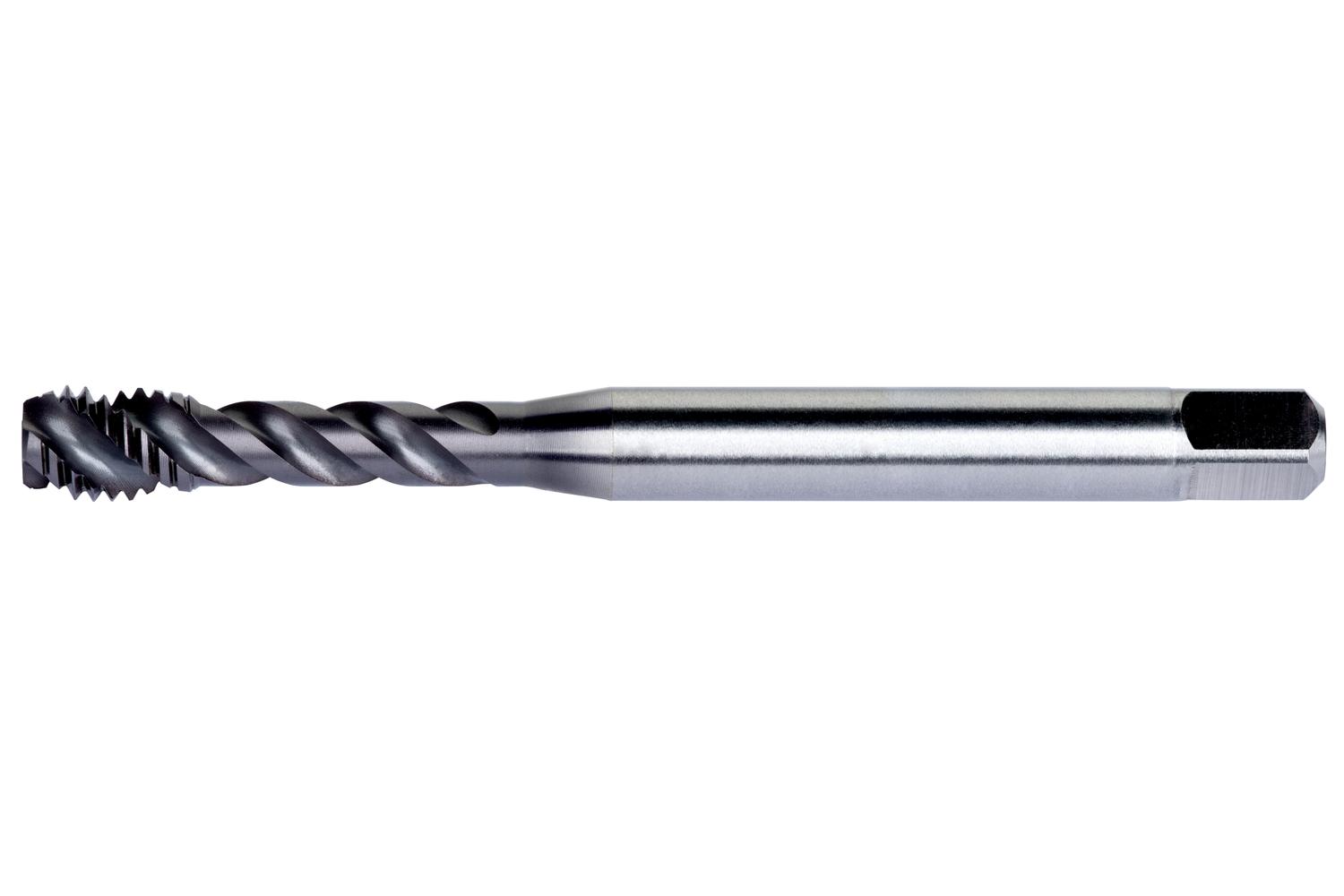

Dormer 8464246 E698 Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, Semi-Bottoming Chamfer, (3) Flutes, TiCN Coated, HSS-E
Dormer 8464246 E698 Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, Semi-Bottoming Chamfer, (3) Flutes, TiCN Coated, HSS-E
Dormer 8464246 E698 Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, Semi-Bottoming Chamfer, (3) Flutes, TiCN Coated, HSS-E
- Brand: Dormer
- Mfr# : 8464246
- Item # : DPT 8464246
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- DIN Thread Pitch Diameter Tolerance Zone (with increased pitch diameter)
- Blind Hole Application
- 2.5-D Usable Tool Depth to Diameter Ratio
- High Speed Cobalt Powder Metal Tool Material
- Semi-Bottoming Tap Chamfer (2 - 3 Pitch Lead)
- Spiral Flute Geometry
- 48 deg Helix Angle (Flute)
- Right Hand Rotation / Cutting
DESCRIPTION
Dormer, 8464246, Flute Tap, Spiral, Series: E698, Measurement System: Metric, Coarse Thread Standard, M8x1.25 Thread, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, TiCN Coated, Right Hand Cutting Direction, 0.512 in Thread Length, 3.54 in Overall Length, 0.318 in Shank Diameter, Steel/Cast Steel/Stainless Steel/Non-Ferrous Metals Material Application

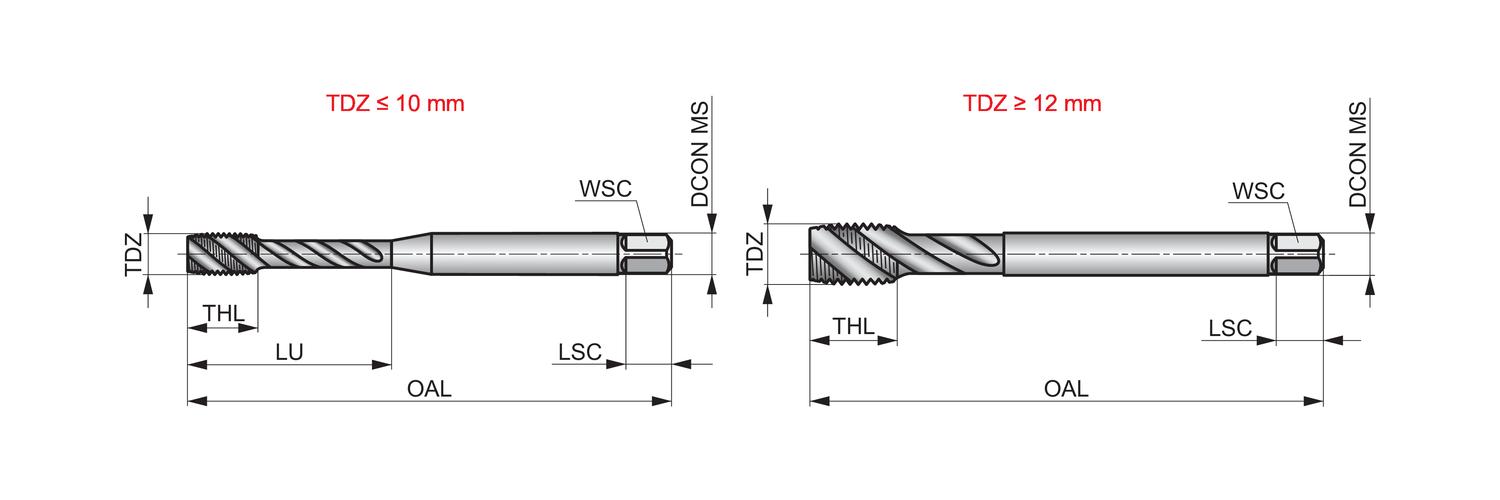

SPECIFICATIONS
| Type | : Spiral |
| Series | : E698 |
| Measurement System | : Metric |
| Thread Standard | : Coarse |
| Thread Size | : M8x1.25 |
| Chamfer Type | : Semi-Bottoming |
| Number of Flutes | : 3 |
| Material | : HSS-E |
| Finish/Coating | : TiCN Coated |
| Cutting Direction | : Right Hand |
| Thread Length | : 0.512 in |
| Overall Length | : 3.54 in |
| Shank Diameter | : 0.318 in |
| Flute Direction | : Right Hand |
| Material Application | : Steel/Cast Steel/Stainless Steel/Non-Ferrous Metals |
APPLICATION INFO
| Standard/Approvals | : DIN/ANSI Standard |
| Country of Origin | : BR |
