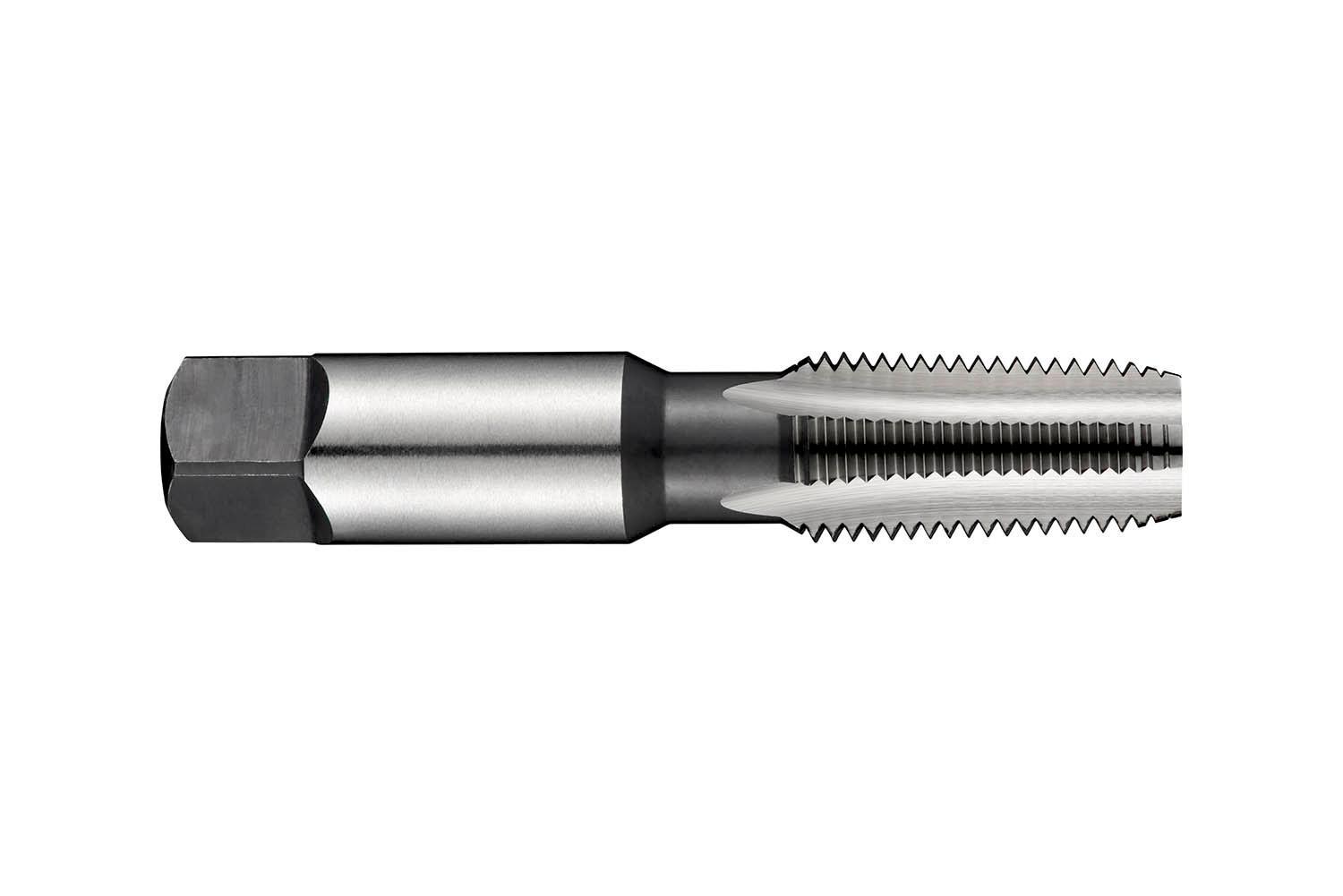

Dormer 5977622 E710 Straight Flute Pipe Tap, 1/2-14 Thread
Dormer 5977622 E710 Straight Flute Pipe Tap, 1/2-14 Thread
- Brand: Dormer
- Mfr# : 5977622
- Item # : DPT 5977622
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Medium hook for multi-material tapping
- Generally used for pipe fittings and couplings in most ferrous and non-ferrous materials
- The nominal size of a pipe tap is that of the pipe fitting to be tapped and not the actual size of the tap
- NPT threads require the use of a sealant such as teflon tape or pipe compound to ensure a tight joint
- Tin coating increases surface hardness and improves tool life
DESCRIPTION
Dormer Pipe Tap, Straight Flute, Series: E710, Measurement System: Imperial, 1/2-14 Thread, NPT Thread Standard, Semi-Bottoming Chamfer, 35 mm Thread Length, 100 mm Overall Length, 4 Flutes, Right Hand Cutting Direction, 17.5 mm Shank Diameter, 18 mm Tap Drill, 13.1 mm Square, HSS, Bright, Medium Hook
SPECIFICATIONS
| Type | : Straight Flute |
| Series | : E710 |
| Measurement System | : Imperial |
| Thread Size | : 1/2-14 |
| Thread Standard | : NPT |
| Chamfer Type | : Semi-Bottoming |
| Thread Length | : 35 mm |
| Overall Length | : 100 mm |
| Number of Flutes | : 4 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 17.5 mm |
| Tap Drill Size | : 18 mm |
| Square Size | : 13.1 mm |
| Material | : HSS |
| Finish/Coating | : Bright |
| Hook Type | : Medium |
APPLICATION INFO
| Standard/Approvals | : ANSI B94.9|CSA Approved |
| Application | : For through or blind holes and general purpose applications |
| Country of Origin | : BR |
