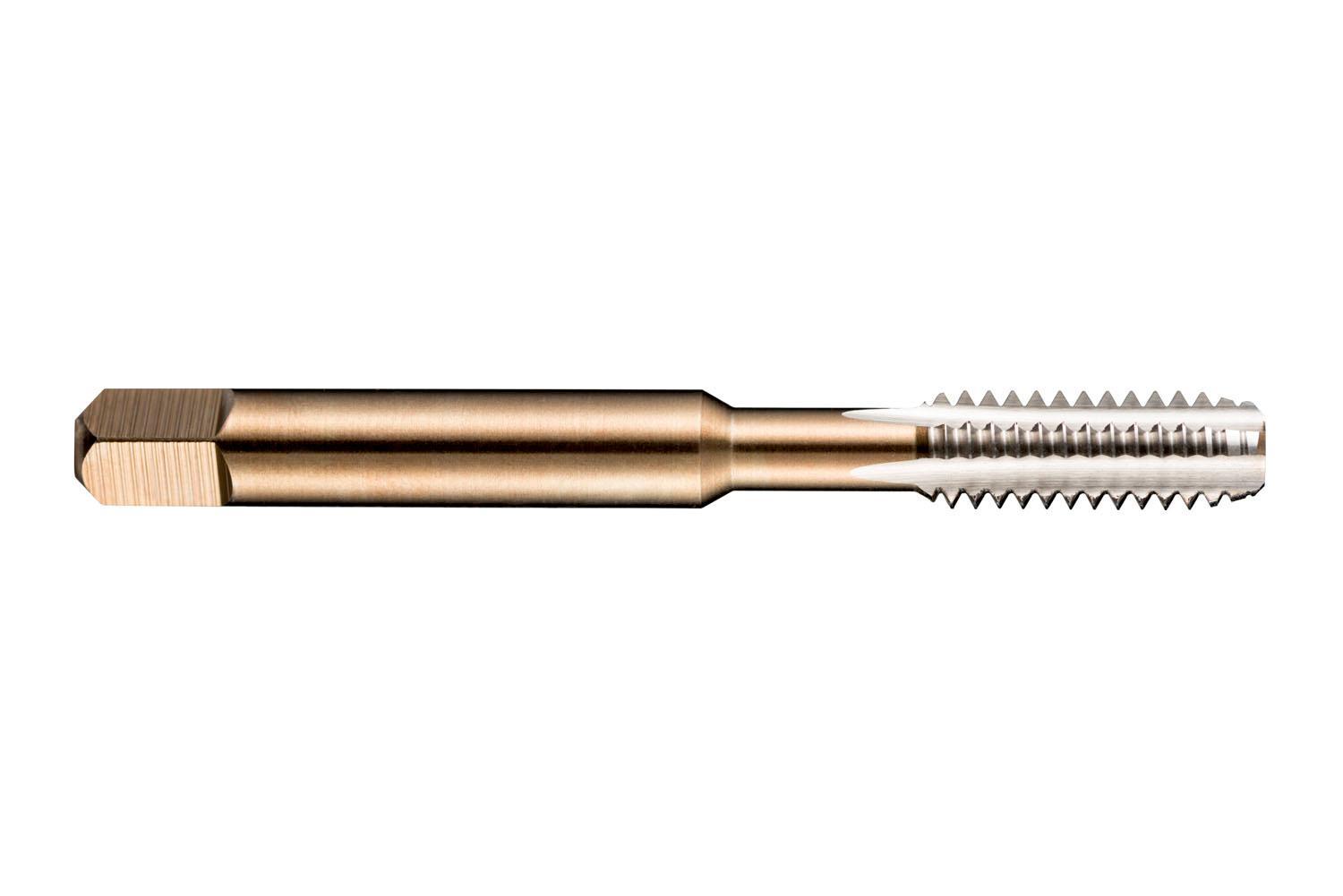

Dormer 5976780 E513 General Purpose Dormer Straight Flute Machine Tap, Right Hand Cutting, M14x1.5 Thread, Bottoming Chamfer, 4 Flutes, Bright, HSS
Dormer 5976780 E513 General Purpose Dormer Straight Flute Machine Tap, Right Hand Cutting, M14x1.5 Thread, Bottoming Chamfer, 4 Flutes, Bright, HSS
Dormer 5976780 E513 General Purpose Dormer Straight Flute Machine Tap, Right Hand Cutting, M14x1.5 Thread, Bottoming Chamfer, 4 Flutes, Bright, HSS
- Brand: Dormer
- Mfr# : 5976780
- Item # : DPT 5976780
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
DESCRIPTION
Dormer Dormer Straight Flute Machine Tap, General Purpose, Series: 452, Measurement System: Metric, Fine, M14x1.5, Bottoming Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 6H, Right Hand Cutting, 24 mm Thread Length, 95 mm Overall Length, 11.2 mm Shank Dia, Steel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application
SPECIFICATIONS
| Type | : General Purpose |
| Series | : E513 |
| Measurement System | : Metric |
| Thread Standard | : Fine |
| Thread Size | : M14x1.5 |
| Chamfer Type | : Bottoming |
| Number of Flutes | : 4 |
| Material | : HSS |
| Finish/Coating | : Bright |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |
| Thread Length | : 24 mm |
| Overall Length | : 95 mm |
| Shank Diameter | : 11.2 mm |
| Material Application | : Steel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials |
APPLICATION INFO
| Standard/Approvals | : ISO 529 |
| Application | : For through or blind hole applications |
| Country of Origin | : BR |
