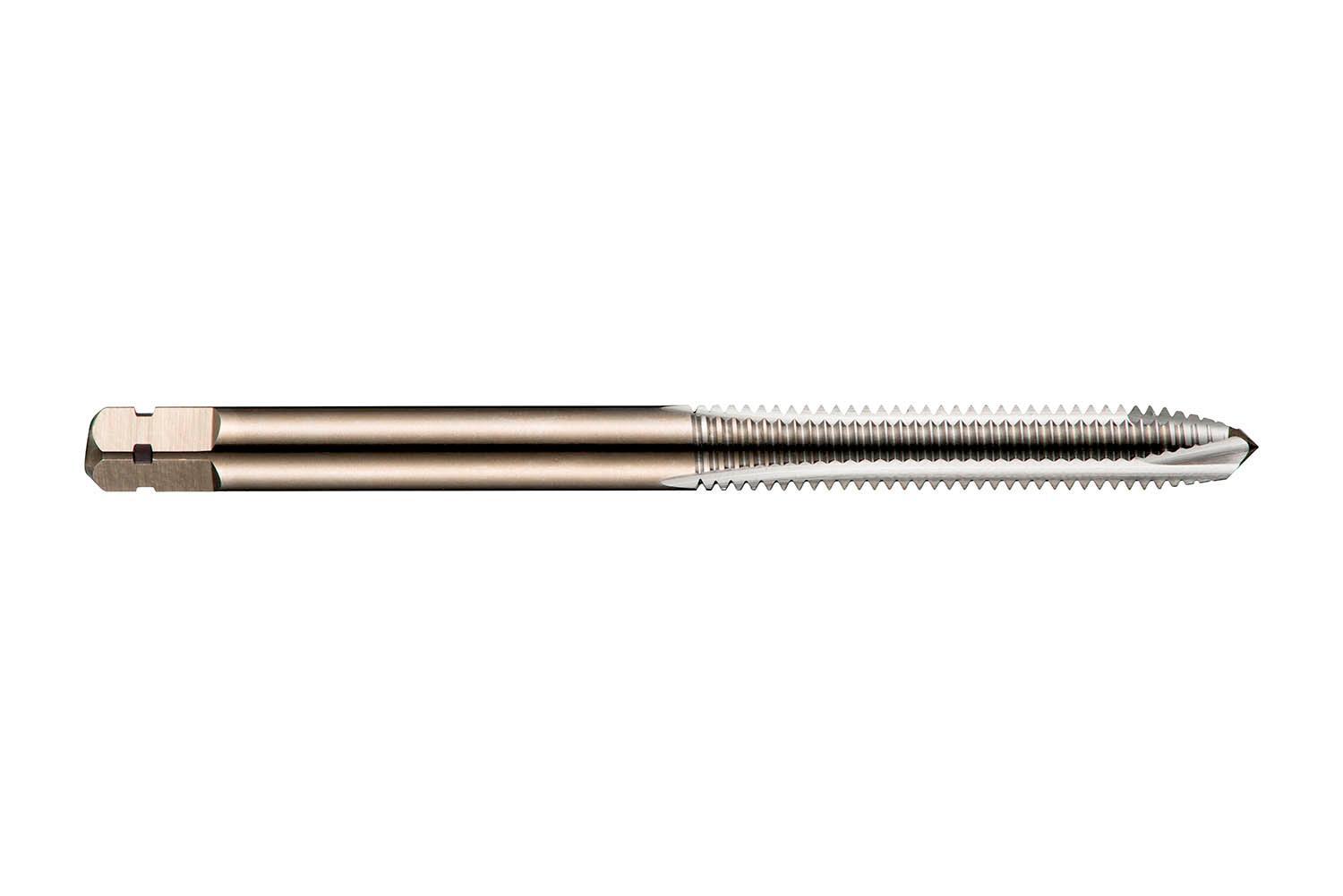

Dormer 5974461 E005 Spiral Point Tap, Right Hand Cutting, M5x0.8 Thread, D4 Thread Limit, Plug Chamfer, 2 Flutes, Bright/Bronze Oxide, HSS-E
Dormer 5974461 E005 Spiral Point Tap, Right Hand Cutting, M5x0.8 Thread, D4 Thread Limit, Plug Chamfer, 2 Flutes, Bright/Bronze Oxide, HSS-E
Dormer 5974461 E005 Spiral Point Tap, Right Hand Cutting, M5x0.8 Thread, D4 Thread Limit, Plug Chamfer, 2 Flutes, Bright/Bronze Oxide, HSS-E
- Brand: Dormer
- Mfr# : 5974461
- Item # : DPT 5974461
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Premium substrate for through hole tapping in tough or abrasive materials
- Bronze oxide body and shank reduces rust and corrosion
- Bright finish flutes improve chip flow in soft and non-ferrous materials
DESCRIPTION
Dormer Spiral Point Tap, Series: E005, Measurement System: Metric, Coarse, M5x0.8, Plug Chamfer, 2 Flutes, HSS-E, Bright/Bronze Oxide, Class of Fit: 6H, Right Hand Cutting, 0.43 in Thread Length, 2-3/8 in Overall Length, 0.194 in Shank Dia, Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, D4 Thread Limit
SPECIFICATIONS
| Series | : E005 |
| Measurement System | : Metric |
| Thread Standard | : Coarse |
| Thread Size | : M5x0.8 |
| Chamfer Type | : Plug |
| Number of Flutes | : 2 |
| Material | : HSS-E |
| Finish/Coating | : Bright/Bronze Oxide |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |
| Thread Length | : 0.43 in |
| Overall Length | : 2-3/8 in |
| Shank Diameter | : 0.194 in |
| Material Application | : Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials |
| Thread Limit | : D4 |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved |
| Application | : For through hole and multi applications |
| Country of Origin | : BR |
