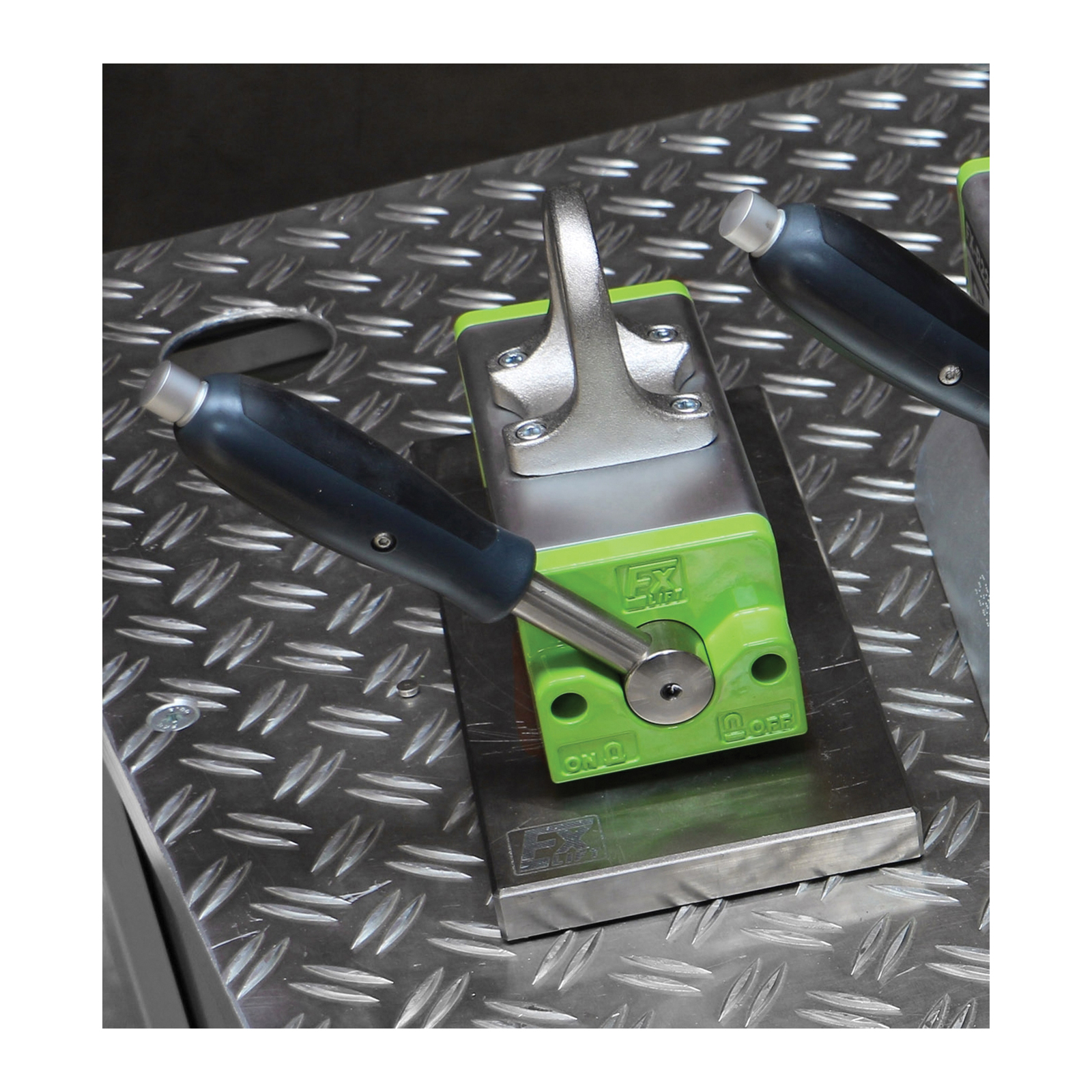

These on/off permanent lifts offer strength in a lightweight, compact package. Each line of lifting magnets in the FX family of products has been specifically designed for maximum performance by user application. The size, shape and dimension of the parts you'll primarily be lifting whether flat, curved or circular shaped will determine the best FX lift magnet for you. On all magnets in the series, the unique handle design only requires a 90 deg rotation to either engage or disengage the magnet (versus the 120 deg or even 180 deg required on most on/off lifting magnets), making it easy for operators to use in applications where the magnet is lifting something from inside a bin or a deep trough. The handle also features a positive lock-on/lock-off mechanism that requires the operator to manually switch between the two states. This prevents the handle from being turned only partially on or from being accidentally bumped to the "off" position and dropping the load pre-maturely.

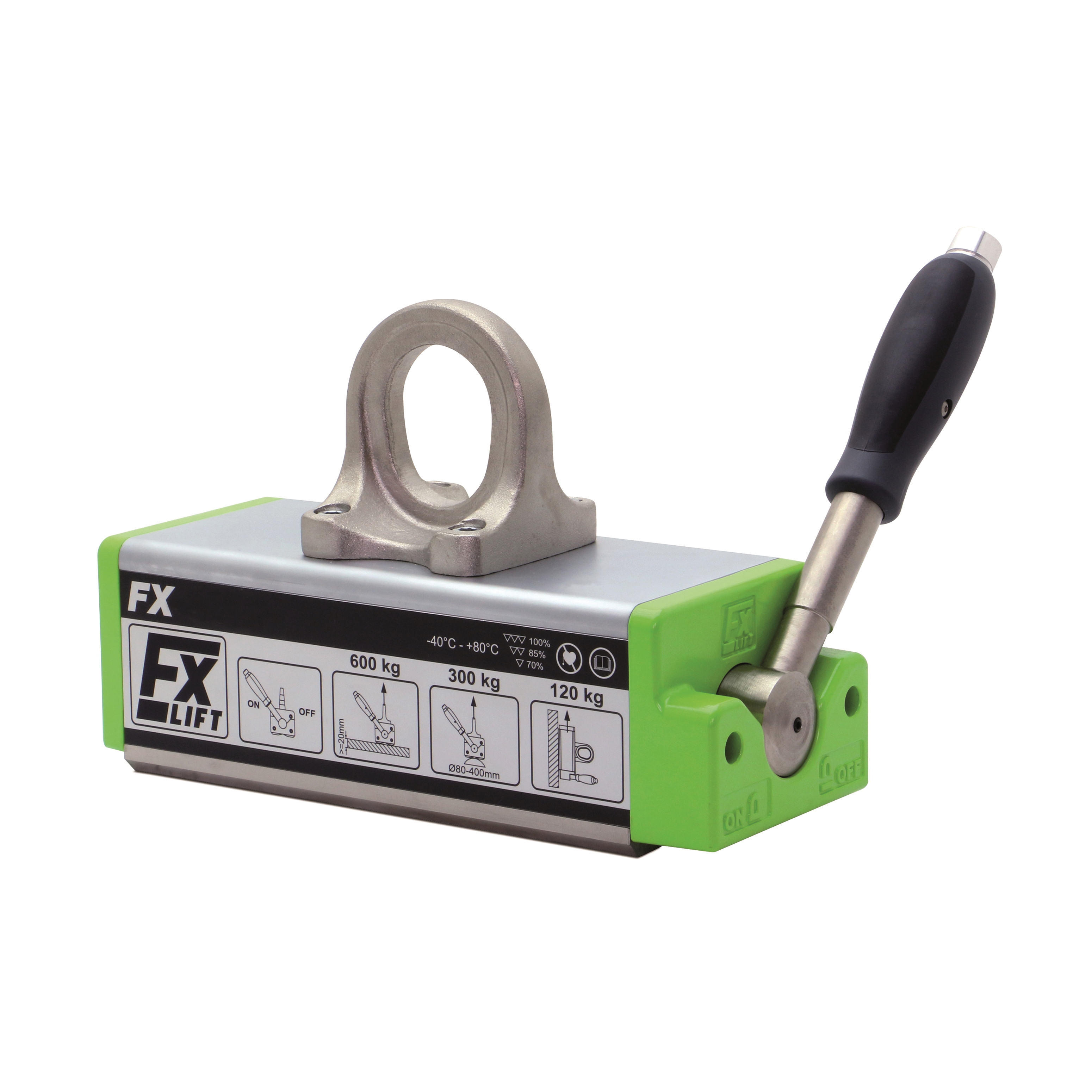

MAG-MATE® Lift Magnet, Permanent Rare Earth Universal, Series: FX Series, 330 lb Load, Locking On/Off Magnet Activation, 2.3 in Magnet Height, 2-1/2 in Magnet Width, 4-3/4 in Magnet Length, 5.3 in Handle Length, 1 in W x 1.6 in H x 0.4 in THK Bail, 180 deg F Maximum Heat Resistant, 6.3 in L x 4 in H Dimensions
