MAG-MATE® PowerLift® PNL0800 Permanent Rare Earth Lifting Magnet, 800 lb Load, 7-7/8 in L x 8-7/8 in H, Locking On/Off Magnet Activation, Neodymium, 8 in L Handle

MAG-MATE® PNL0800 IMI PNL0800

MAG-MATE® PowerLift® PNL0800 Permanent Rare Earth Lifting Magnet, 800 lb Load, 7-7/8 in L x 8-7/8 in H, Locking On/Off Magnet Activation, Neodymium, 8 in L Handle

MAG-MATE® PowerLift® PNL0800 Permanent Rare Earth Lifting Magnet, 800 lb Load, 7-7/8 in L x 8-7/8 in H, Locking On/Off Magnet Activation, Neodymium, 8 in L Handle

  • Brand: MAG-MATE®
  • Mfr# : PNL0800
  • Item # : IMI PNL0800
  • UPC #: 682241264306
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MAG_MATE_PNL0250_Catalog.pdf

FEATURES

  • Handle locks in both On and Off position

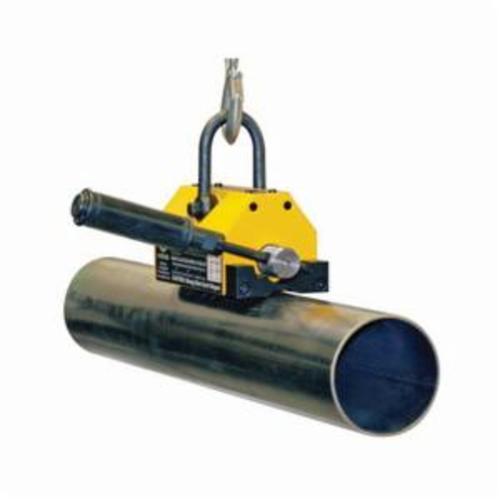

  • Lifts flat or round loads
  • Easy internal manual release does not contact the load
  • RFID enabled
  • 3:1 design factor
  • On/Off permanent rare earth magnet
  • Yellow color

DESCRIPTION

These compact, yet powerful, Rare Earth lift magnets are designed for lifting thick, non-flexing steel. They can be used on flat or round surfaces and contain an internal release on/off device that does not contact or damage the surface of the part being lifted. Permanent magnetic lifts also eliminate the fear of dropping the load being lifted due to power failures.

MAG-MATE® PowerLift® Lifting Magnet, Permanent Rare Earth, 800 lb Load, Locking On/Off, Neodymium, 3-7/8 in Magnet Height, 3-5/8 in Magnet Width, 6-5/8 in Magnet Length, 8 in Handle Length, 1/2 in H x 2-3/8 in W x 1-3/4 in THK Bail, 180 deg F Maximum Heat Resistant Temperature, 7-7/8 in L x 8-7/8 in H

SPECIFICATIONS

Type      :    Permanent Rare Earth
Load Capacity      :    800 lb
Magnet Activation      :    Locking On/Off
Magnet Material      :    Neodymium
Magnet Height      :    3-7/8 in
Magnet Width      :    3-5/8 in
Magnet Length      :    6-5/8 in
Handle Length      :    8 in
Bail Size      :    1/2 in H x 2-3/8 in W x 1-3/4 in THK
Maximum Heat Resistant Temperature      :    180 deg F
Dimensions      :    7-7/8 in L x 8-7/8 in H

APPLICATION INFO

Standard/Approvals      :    ASME B30.20|PROP65: Some of our products may contain chemicals known to the state of California to cause cancer or reproductive harm. www.P65Warning.ca.gov
Country of Origin      :    CN
