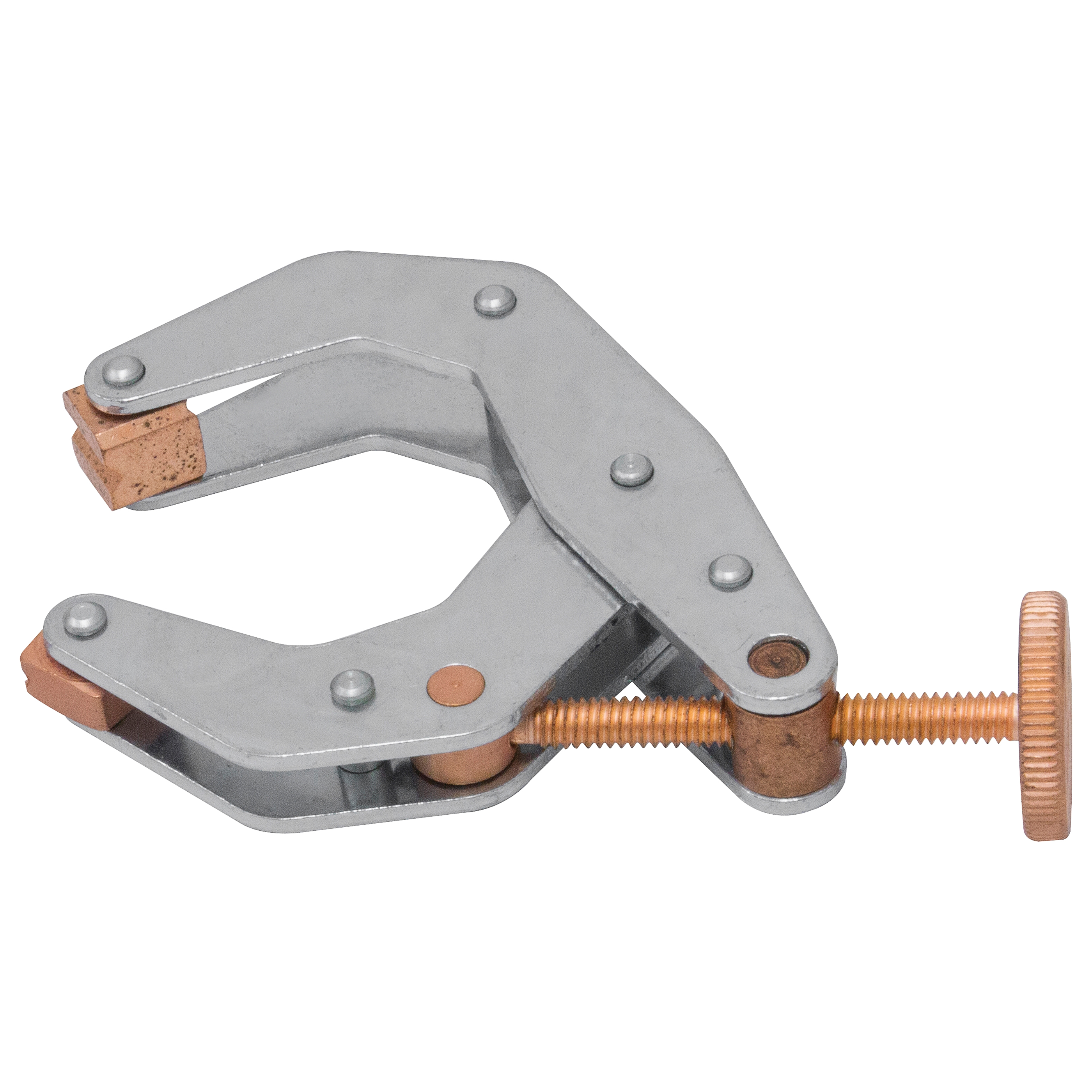

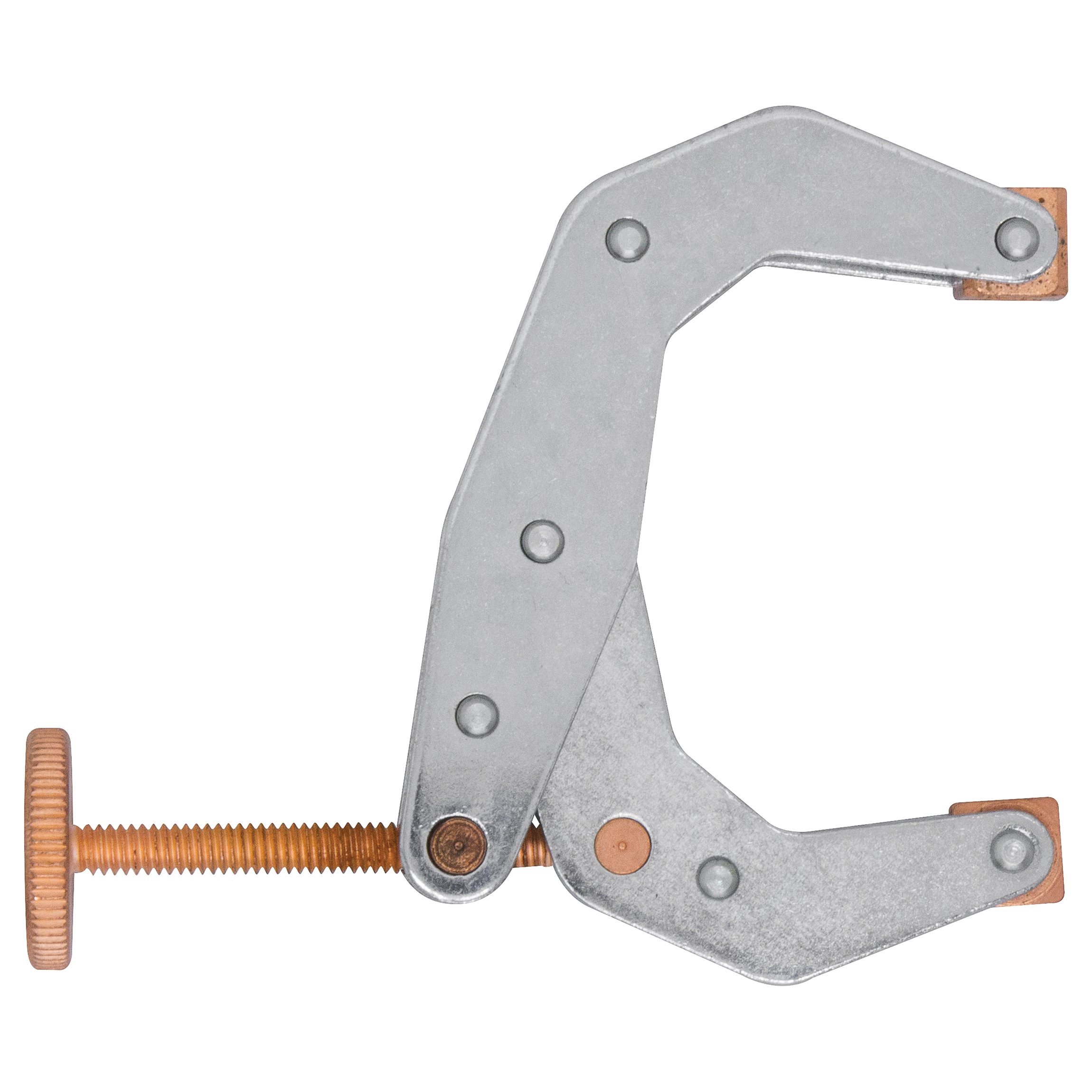

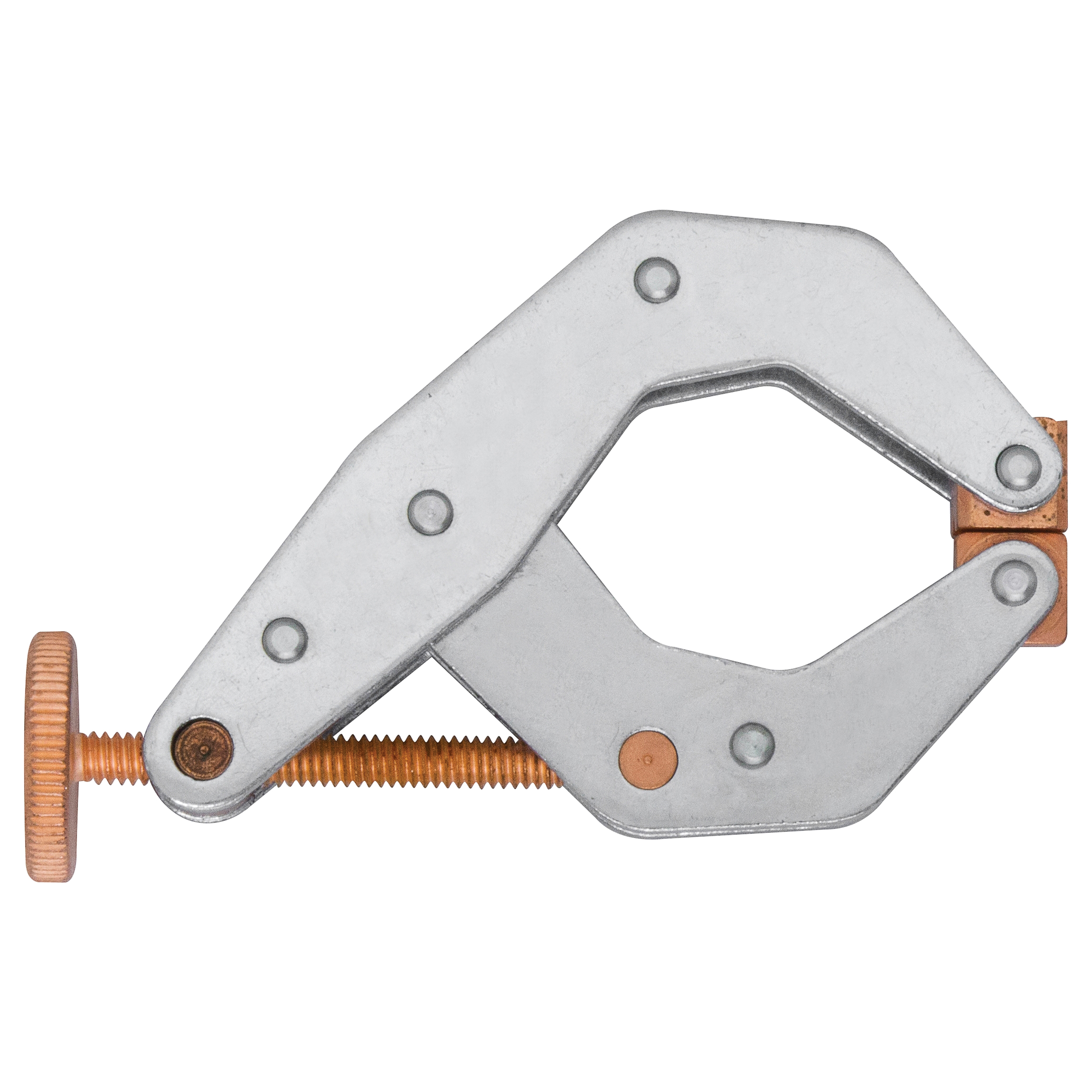

Kant-Twist® K025RD Deep Reach Round Handle Cantilever Clamp With Copper Plated Jaw, Screw and T-Handle, 1-3/4 in Opened x 1-13/16 in Closed D Throat, 2-1/2 in Clamping, 2-1/2 in Jaw Opening, Steel Body, 700 lb
Kant-Twist® K025RD Deep Reach Round Handle Cantilever Clamp With Copper Plated Jaw, Screw and T-Handle, 1-3/4 in Opened x 1-13/16 in Closed D Throat, 2-1/2 in Clamping, 2-1/2 in Jaw Opening, Steel Body, 700 lb
Kant-Twist® K025RD Deep Reach Round Handle Cantilever Clamp With Copper Plated Jaw, Screw and T-Handle, 1-3/4 in Opened x 1-13/16 in Closed D Throat, 2-1/2 in Clamping, 2-1/2 in Jaw Opening, Steel Body, 700 lb
- Brand: Kant-Twist®
- Mfr# : K025RD
- Item # : IMI K025RD
- UPC #: 682241319402
- Min. Order Qty: :
- Qty. Interval: :


FEATURES
- Extended reach
- Will not walk-off-center when pressure is applied
- Kant-Twist® eliminates distorting and twisting action of C-clamp
- Cantilever action provides 4:1 clamping ration
- Round handle allows for fine tuning clamping force
- Three different gripping surfaces and built-in V-block for round stock
- Free floating jaws adjust to un-parallel surfaces
- Copper plated jaws, screw and handle are ideal for welding
- Lighter weight than C-clamp
- Greater clamping power
DESCRIPTION
Kant-Twist® cantilever clamps offer several advantages over standard C-clamp they're lighter, stronger and won't walk-off-center, perfect for spot welding, drilling, bolting or anywhere you need to hold two pieces firmly together. The Kant-Twist® innovative cantilever design eliminates the problematic distorting and twisting of your work pieces and provides a strong, 4:1 clamp ratio. The free floating jaws easily adjust to uneven surfaces while offering three different gripping faces to meet your application needs, knurled, smooth and V-slot for holding round stock. For welding applications, choose a Kant-Twist® model with copper plated jaws, screw and handle to prevent weld spatter from sticking. If you need precise control over the holding pressure on your material, choose the round handle for fine tuning capability. The deep reach throat model gives you farther reach onto your material for better holding and the stainless steel model is ideal for clamping material in corrosive or sanitary environments or for use in magnetic applications. Non-marring clamps have soft round pads for holding soft materials like wood, plastic, synthetics, aluminum or fine finish/polished metals. No turning, twisting or digging into surfaces like screw type clamps.
Kant-Twist® Cantilever Clamp, Deep Reach Round Handle, 1-3/4 in Opened x 1-13/16 in Closed Throat Depth, 2-1/2 in Clamping, 2-1/2 in Jaw Opening, Copper Plated Steel Jaw, Steel Body, 700 lb Clamping, 4-1/2 in L x 4-1/16 in W x 7/8 in THK Dimensions
SPECIFICATIONS
Jaw Material | : Copper Plated Steel |
Dimensions | : 4-1/2 in L x 4-1/16 in W x 7/8 in THK |
Type | : Deep Reach Round Handle |
Throat Depth | : 1-3/4 in Opened x 1-13/16 in Closed |
Clamping Capacity | : 2-1/2 in |
Jaw Opening | : 2-1/2 in |
Body Material | : Steel |
Clamping Pressure | : 700 lb |
APPLICATION INFO
Application | : For use in spot welding, drilling and bolting applications |
Country of Origin | : US |
