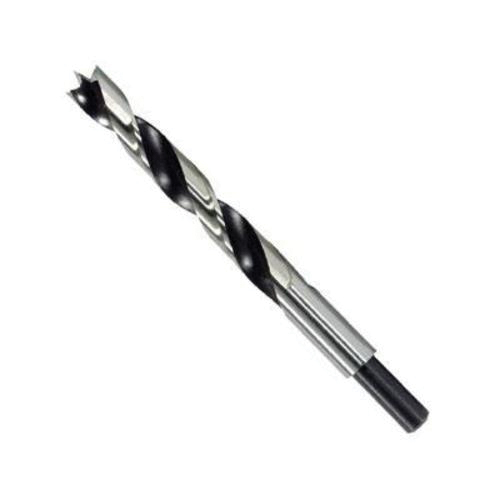

Irwin® 49617 Brad Point Drill Bit, 7/16 in Dia, 5-19/32 in OAL, 3-11/16 in L Spiral Flute, 3/8 in Shank
Irwin® 49617 Brad Point Drill Bit, 7/16 in Dia, 5-19/32 in OAL, 3-11/16 in L Spiral Flute, 3/8 in Shank
Irwin® 49617 Brad Point Drill Bit, 7/16 in Dia, 5-19/32 in OAL, 3-11/16 in L Spiral Flute, 3/8 in Shank
- Brand: Irwin®
- Mfr# : 49617
- Item # : IRW 49617
- UPC #: 024721496171
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Brad point tip provides accurate positioning for starting the hole
- Bit is precision-ground for use in furniture making, doweling, cabinetry and other wood working applications where an exact hole size is required
- Spurs reduce splintering and ensure a smooth, clean hole
- Wide flutes provide a fast, continuous flow of chip ejection
- Brad+spur+cutter point shape
DESCRIPTION
IRWIN Tools Brad Point Drill Bit, 7/16-Inch (49617), Brad Point Drill Bits, Brad point tip provides accurate positioning for starting the hole, Bit is precision ground for use in furniture making, doweling, cabinetry and other woodworking applications where an exact hole size is required.
Irwin® Brad Point Drill Bit, Drill Style: Brad Point, 7/16 in Diameter, 5-19/32 in Overall Length, 2 Flutes, Spiral Flute, 3-11/16 in Flute Length, 3/8 in Shank, Reduced Shank, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Uncoated
SPECIFICATIONS
| Drill Style | : Brad Point |
| Diameter | : 7/16 in |
| Overall Length | : 5-19/32 in |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Flute Length | : 3-11/16 in |
| Shank Size | : 3/8 in |
| Shank Type | : Reduced |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSS |
| Material | : HSS |
| Finish | : Uncoated |
APPLICATION INFO
| Application | : Furniture Making, Doweling, Cabinetry and Other Wood Working Applications |
| Country of Origin | : CN |
