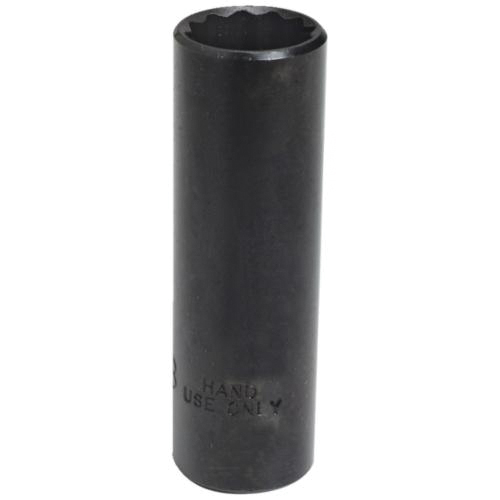

Proto® TorquePlus™ ProtoBlack™ J5014B Deep Length Socket, Imperial, 3/8 in Square Drive, 7/16 in
Proto® TorquePlus™ ProtoBlack™ J5014B Deep Length Socket, Imperial, 3/8 in Square Drive, 7/16 in
- Brand: Proto®
- Mfr# : J5014B
- Item # : STP J5014B
- UPC #: 662679290030
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Hand use only
DESCRIPTION
Proto® TorquePlus™ ProtoBlack™ Socket, Deep Length, Measurement System: Imperial, Square Drive, 3/8 in Drive, 7/16 in Socket, 2-1/8 in Overall Length, 7/16 in Opening Depth, 41/64 in Drive End Width, 41/64 in Socket End Width, Ball Locking, 12 Points, 1-3/8 in Bolt Clearance Depth, Alloy Steel, Black Oxide
SPECIFICATIONS
| Type | : Deep Length |
| Measurement System | : Imperial |
| Drive Type | : Square |
| Drive Size | : 3/8 in |
| Socket Size | : 7/16 in |
| Overall Length | : 2-1/8 in |
| Opening Depth | : 7/16 in |
| Drive End Width | : 41/64 in |
| Socket End Width | : 41/64 in |
| Locking Type | : Ball |
| Number of Points | : 12 |
| Bolt Clearance Depth | : 1-3/8 in |
| Material | : Alloy Steel |
| Finish | : Black Oxide |
APPLICATION INFO
| Standard/Approvals | : ASME B107.110-2012|AS954E S3.8.1 |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
