Call Us at (800) 875-4811

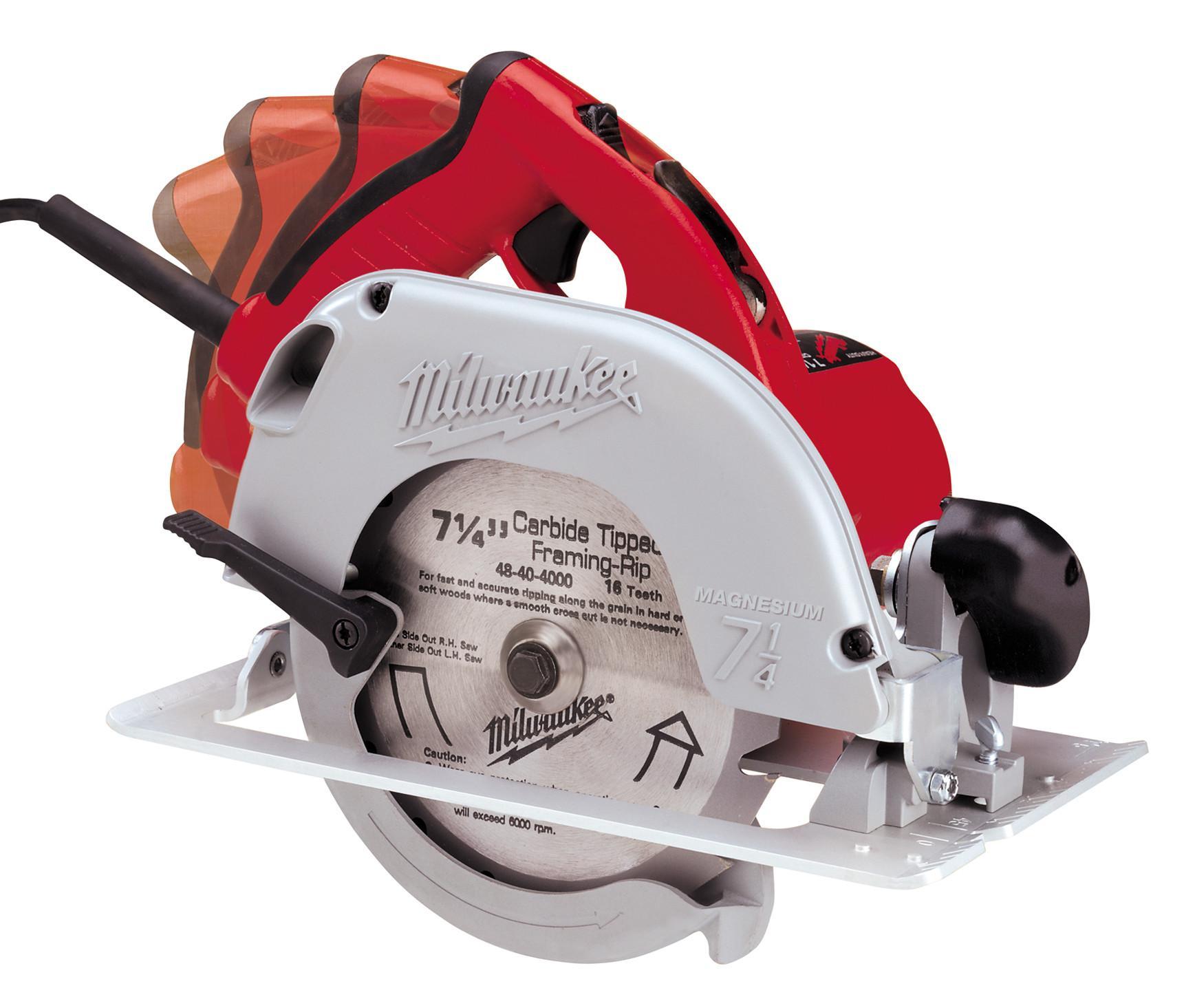

Milwaukee® TILT-LOK 6390-21 Corded Circular Saw Kit, 7-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 2-9/16 in at 90 deg Cutting, Right Blade Side
Milwaukee® TILT-LOK 6390-21 Corded Circular Saw Kit, 7-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 2-9/16 in at 90 deg Cutting, Right Blade Side
Milwaukee® TILT-LOK 6390-21 Corded Circular Saw Kit, 7-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 2-9/16 in at 90 deg Cutting, Right Blade Side
- Brand: Milwaukee®
- Mfr# : 6390-21
- Item # : MIL 6390-21
- UPC #: 045242049585
- Min. Order Qty: :
- Qty. Interval: :
Full Engineering Drawing
FEATURES
- New exclusive Tilt-Lok™ main handle adjusts to the work or most comfortable work position
- 15 A, 3.25 peak horsepower motor - most powerful circle saw cuts tough materials including headers, micro lams and wet lumber with ease
- Wide, clear sight line - superior blade visibility from either side
- 10.4 Lb net weight - lightest 7-1/4 in, 3.25 maximum horsepower saw reduces operator fatigue, easier to handle
DESCRIPTION
The Tilt-Lok™ handle on Milwaukee's 6390-20 is the most revolutionary concept for circular saws in years. The eight position cushioned top handle adjusts to any cutting application maximizing comfort and control. Weighing in at 10.4 Lb. and delivering 3.25 maximum horsepower, this tool offers the best power to weight ratio in the industry. The blade can bevel to 50 degrees and offers superior visibility and a clear sight line from either side. Helical steel gears and a 22 amp switch are just two of the features that ensure the Milwaukee's reputation for durability.
Milwaukee® TILT-LOK Corded Circular Saw Kit, 7-1/4 in Dia Blade, Blade Side Right, 5/8 in Arbor/Shank, 5800 rpm Speed, Cutting Capacity: 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 2-9/16 in at 90 deg, 45/50/90 deg Cutting Angle, Bevel Capacity: 50 deg, Aluminum Shoe, 3-1/4 hp, 120 VAC/VDC, 15 A, Plastic Housing Material, Front Palm/Soft Grip/Top D-Handle, Fixed Double Insulated Cord, On/Off Control, 13-3/4 in L Dimensions
SPECIFICATIONS
| Tool/Kit | : Kit |
| Blade Size | : 7-1/4 in Dia |
| Blade Side | : Right |
| Arbor/Shank Size | : 5/8 in |
| Speed | : 5800 rpm |
| Cutting Capacity | : 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 2-9/16 in at 90 deg |
| Cutting Angle | : 45/50/90 deg |
| Bevel Capacity | : 50 deg |
| Shoe Material | : Aluminum |
| Horsepower | : 3-1/4 hp |
| Voltage Rating | : 120 VAC/VDC |
| Amperage Rating | : 15 A |
| Housing Material | : Plastic |
| Handle Type | : Front Palm/Soft Grip/Top D-Handle |
| Cord Type | : Fixed Double Insulated |
| Control Type | : On/Off |
| Dimensions | : 13-3/4 in L |
APPLICATION INFO
| Standard/Approvals | : CSA Certified|UL Listed |
| Application | : Wood Cutting Applications |
| Country of Origin | : CN |
