Milwaukee® 2854-20 M18™ FUEL™ Cordless Variable Compact Impact Wrench With Friction Ring, 3/8 in, 250 ft-lb Torque, 18 V, 4.8 in OAL

Milwaukee® 2854-20 M18™ FUEL™ Cordless Variable Compact Impact Wrench With Friction Ring, 3/8 in, 250 ft-lb Torque, 18 V, 4.8 in OAL

Milwaukee® 2854-20 M18™ FUEL™ Cordless Variable Compact Impact Wrench With Friction Ring, 3/8 in, 250 ft-lb Torque, 18 V, 4.8 in OAL


  • Brand: Milwaukee®
  • Mfr# : 2854-20
  • Item # : MIL 2854-20
  • UPC #: 045242568819
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_285420_Line_Drawing.pdf
  • pdf Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_285420_Service_Manual.pdf

FEATURES

  • 4.8 in in length provides most access in tight spaces
  • The POWERSTATE brushless motor delivers up to 250 ft lbs of nut-busting torque

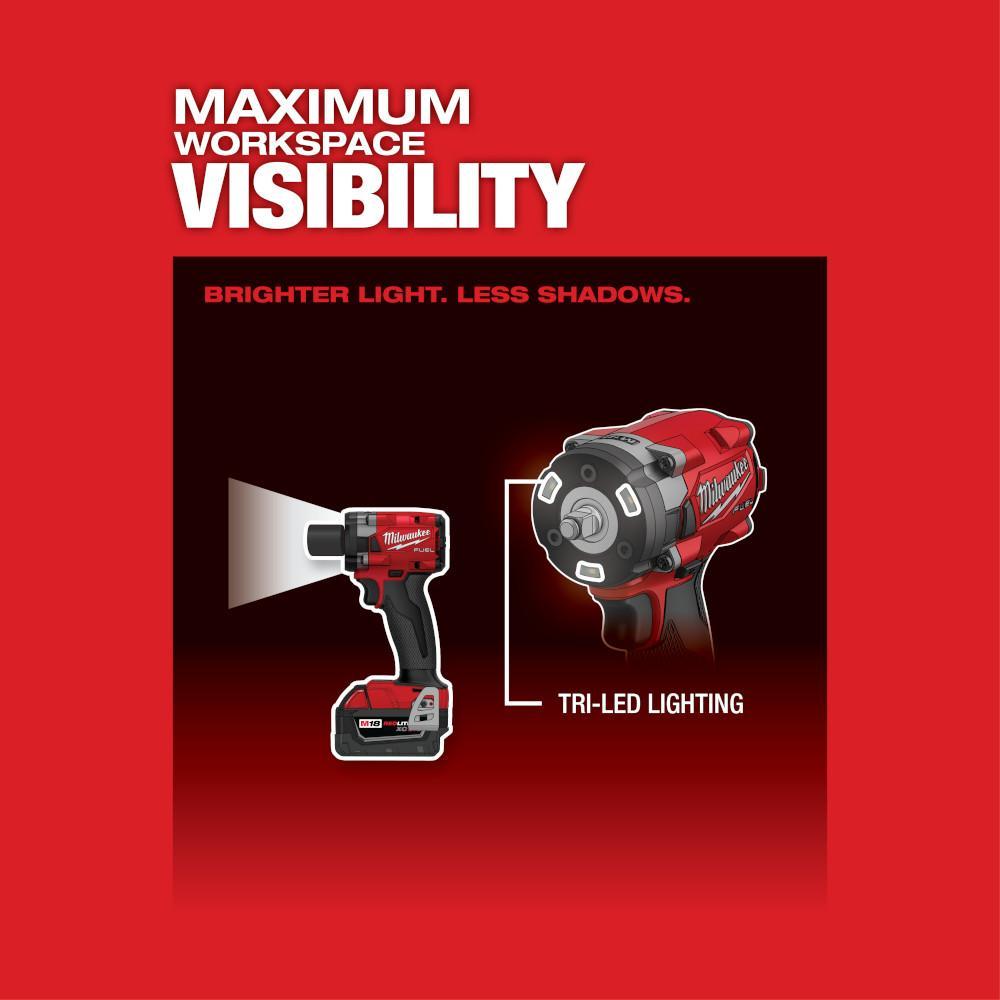

  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 20 ft lbs of torque
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened
  • REDLINK PLUS Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • Works in up to to 69kV environments
  • Compatible with all M18 Batteries and Chargers

DESCRIPTION

The MILWAUKEE® M18 FUEL™ 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. The Milwaukee cordless impact wrench measures only 4.8" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The Milwaukee 3/8" impact wrench has tri-LEDs that surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18™ REDLITHIUM™ battery pack (not included) fits M18™ tools, delivering more work per charge and more work over the life of the pack.

Milwaukee® Compact Impact Wrench, Cordless Variable, Bare Tool/Kit: Bare Tool, Series: M18™ FUEL™, 3/8 in Drive, 250 ft-lb Torque, 2400 rpm Speed, 18 V, Lithium-Ion Battery, Battery Included: No, Aluminum Housing Material, Forward/Reverse Rocker Switch Control, 4.8 in Overall Length

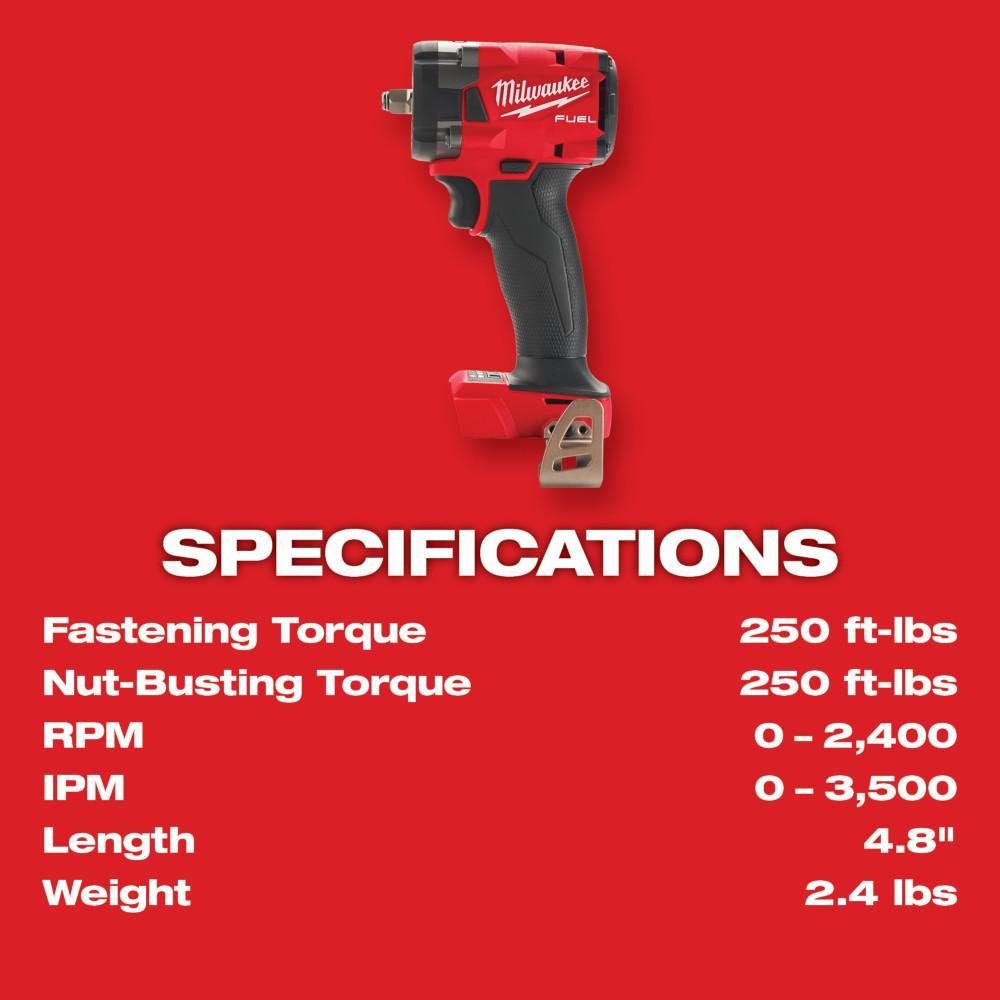

SPECIFICATIONS

Bare Tool/Kit      :    Bare Tool
Type      :    Cordless Variable
Series      :    M18™ FUEL™
Drive Size      :    3/8 in
Torque Rating      :    250 ft-lb
Speed      :    2400 rpm
Voltage Rating      :    18 V
Battery Type      :    Lithium-Ion
Battery Included      :    No
Housing Material      :    Aluminum
Control Type      :    Forward/Reverse Rocker Switch
Overall Length      :    4.8 in

APPLICATION INFO

Standard/Approvals      :    CSA Certified|UL Listed
Country of Origin      :    VN

Documents

  • pdf Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_285420_Line_Drawing.pdf
  • pdf Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_285420_Service_Manual.pdf
