Milwaukee® 2203-20 Non-Contact Voltage Detector, 10 to 1000 V AC, LED Indicator, Cat IV 1000 V AC, Plastic
Milwaukee® 2203-20 Non-Contact Voltage Detector, 10 to 1000 V AC, LED Indicator, Cat IV 1000 V AC, Plastic
Milwaukee® 2203-20 Non-Contact Voltage Detector, 10 to 1000 V AC, LED Indicator, Cat IV 1000 V AC, Plastic
- Brand: Milwaukee®
- Mfr# : 2203-20
- Item # : MIL 2203-20
- UPC #: 045242334056
- Min. Order Qty: :
- Qty. Interval: :


FEATURES
- Different colors identify voltage range

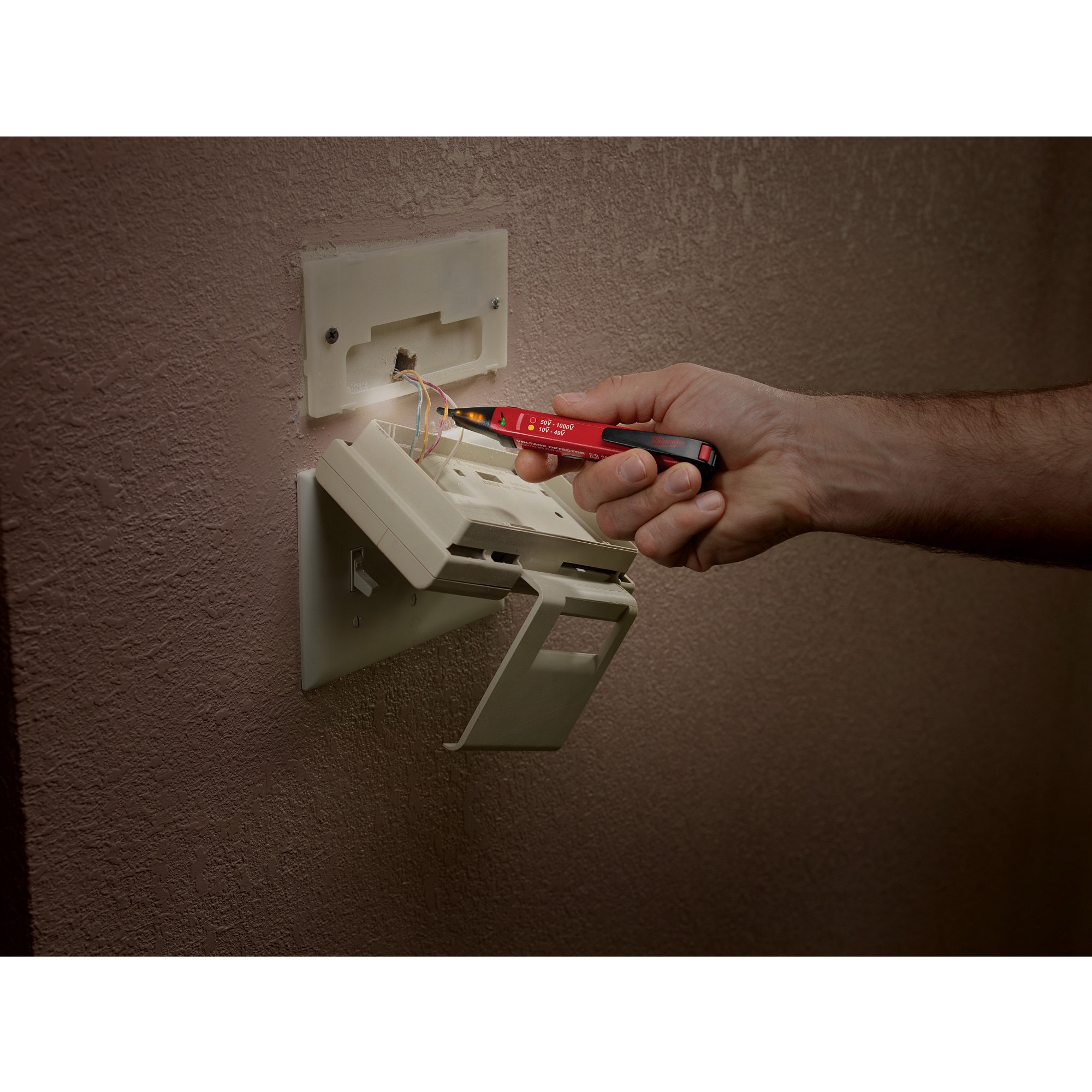

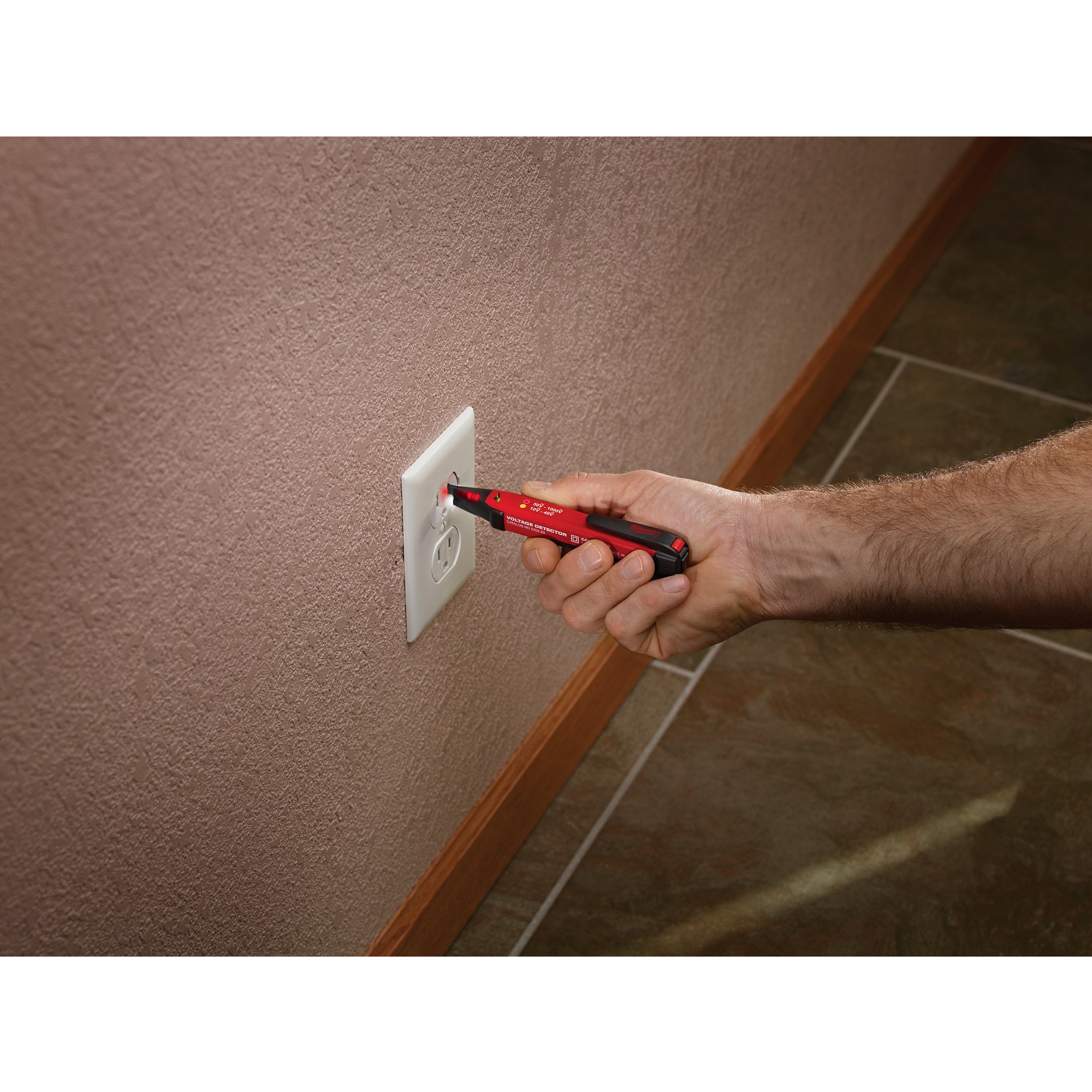

- Blade-tip for checking outlets
- Pocket clip
- The expanded sensitivity range of 10 to 49 V offers the ability to detect voltage in common systems that would normally go undetected when using a standard voltage detector
- These systems include LED lighting, fire detection and suppression systems, HVAC controls and security and access controls, along with many others
- The 10 to 1000 V dual range voltage detector not only detects, but also differentiates 10 to 49 V from the standard voltage range of 50 to 1000 V
- Automatically differentiates 10-49V and 50-1000V
DESCRIPTION
The Milwaukee 10-1000V dual range voltage detector is the first non-contact voltage detector with the ability to light up, detect, and differentiate automatically. The expanded sensitivity range of 10-49V offers the ability to detect voltage in common systems that would normally go undetected when using a standard voltage detector. These systems include: LED lighting, fire detection & suppression systems, HVAC controls, and security & access controls, along with many others. The 10-1000V dual range voltage detector not only detects, but also differentiates 10-49V from the standard voltage range of 50 to 1000 V. it does so by using a uniquely colored LED indicators and audible tones, delivering the clearest indication of these two voltage ranges. A built-in LED work light allows for increased visibility in low-lit areas, and automatic shut-off after 5 minutes helps preserve battery life. The 10-1000V dual range voltage detector is a best-in-class voltage detection solution for any electrician, HVAC technician, or facilities maintenance technician.
Milwaukee® Voltage Detector, Non-Contact, 10 to 1000 V AC, LED Indicator, AAA Alkaline Battery Power Source, Automatic Cut-Off Switch, Safety Rating: Cat IV 1000 V AC, 14 to 122 deg F, 5.92 in L x 0.68 in W x 0.91 in H Dimensions, Plastic, Red
SPECIFICATIONS
Type | : Non-Contact |
Voltage Rating | : 10 to 1000 VAC |
Indicator | : LED |
Power Source | : AAA Alkaline Battery |
Switch Type | : Automatic Cut-Off |
Safety Rating | : Cat IV 1000 VAC |
Temperature Rating | : 14 to 122 deg F |
Dimensions | : 5.92 in L x 0.68 in W x 0.91 in H |
Material | : Plastic |
Color | : Red |
APPLICATION INFO
Application | : Electrician, HVAC Technician and Facilities Maintenance Technician Applications |
Country of Origin | : TW |
