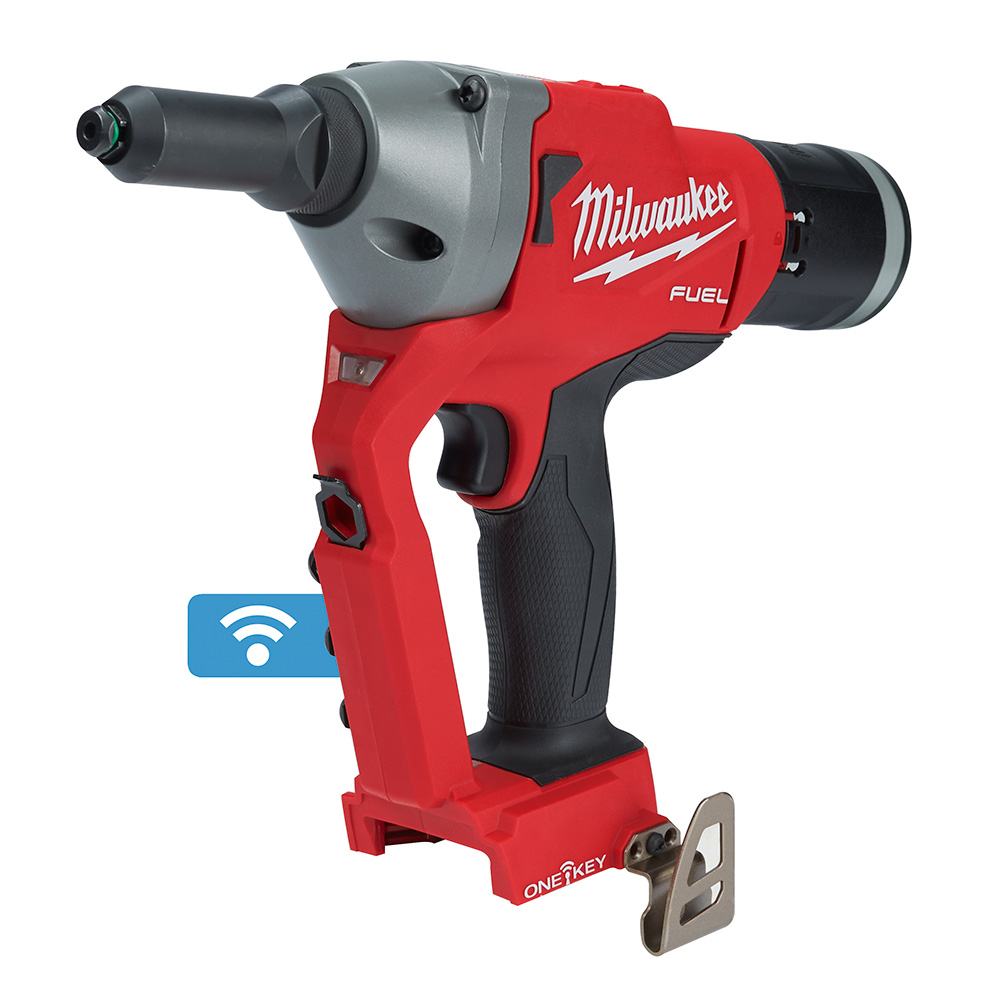

Milwaukee® 2660-20 M18 FUEL™ Blind Rivet Tool, 1/4 in Rivet, 4500 lb Pulling, Li-Ion Battery

Milwaukee® 2660-20 M18 FUEL™ Blind Rivet Tool, 1/4 in Rivet, 4500 lb Pulling, Li-Ion Battery

Milwaukee® 2660-20 M18 FUEL™ Blind Rivet Tool, 1/4 in Rivet, 4500 lb Pulling, Li-Ion Battery


  • Brand: Milwaukee®
  • Mfr# : 2660-20
  • Item # : MIL 2660-20
  • UPC #: 045242572748
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_266020_Full_Engineering_Drawing.pdf
  • pdf Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_266020_Manual.pdf
  • link VIDEO LINK https://players.brightcove.net/5736494073001/r1tg8ngpM_default/index.html?videoId=6221875155001

FEATURES

  • Fastest Cordless Riveting
  • Up to 50 Percent faster than cordless competitors
  • Maximum tool and jaw durability provide up to 3X longer life
  • Eliminates compressors and hoses providing lower cost of ownership, greater productivity, more portability and more safety
  • Installs 3/16 in (4.8mm), 7/32 in (6.0mm), 1/4 in (6.4mm) and 9/32 in (7.0mm) aluminum, steel, and stainless steel rivets
  • Installs up to 500 1/4 in aluminum blind rivets on one REDLITHIUM CP 2.0Ah battery charge
  • POWERSTATE Brushless Motor delivers 4,500 lbs (20kN) of pulling force for high strength blind rivets in all materials

DESCRIPTION

The MILWAUKEE® M18 FUEL™ 1/4” Blind Rivet Tool w/ ONE-KEY™ is the fastest cordless rivet tool. It eliminates the need for hoses and compressors while delivering up to 3X longer life than other cordless riveters. This rivet gun significantly increases productivity, installing rivets up to 50% faster than cordless competitors. The premium steel alloy 3-jaw design delivers more work between jaw changes. While lightweight, this Milwaukee rivet gun was designed to withstand harsh shop or assembly plant environments, manufactured with an all-metal gearcase, impact strength plastics, and protective over-mold. The POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials. This rivet tool pulls up to 900 3/16” aluminum or 500 1/4” aluminum blind rivets on one charge with an M18™ REDLITHIUM™ CP2.0 battery (not included). M18™ REDLITHIUM™ Battery Packs fit M18™ tools, providing more work per charge and more work over the battery life. REDLINK PLUS™ Intelligence ensures maximum performance and protects the rivet tool and battery against overloads, over-heating, and over-discharge. ONE-KEY™ compatibility allows for tracking and managing tools.

Milwaukee® Rivet Tool, Blind, Bare Tool/Kit: Bare Tool, Series: M18 FUEL™, 1/4 in, 4500 lb Pulling, 1.18 in Stroke, 3.13 in Nosepiece size, Li-Ion Battery, 2 Ah Battery, 2-1/2 in W x 9-1/2 in H

SPECIFICATIONS

Bare Tool/Kit      :    Bare Tool
Type      :    Blind
Series      :    M18 FUEL™
Rivet Size      :    1/4 in
Pulling Capacity      :    4500 lb
Stroke Length      :    1.18 in
Nosepiece Size      :    3.13 in
Battery Type      :    Li-Ion
Battery Capacity      :    2 Ah
Dimensions      :    2-1/2 in W x 9-1/2 in H

APPLICATION INFO

Country of Origin      :    VN
