Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
- Brand: Milwaukee®
- Mfr# : 2206-20
- Item # : MIL 2206-20
- UPC #: 045242173747
- Min. Order Qty: :
- Qty. Interval: :
Full Engineering Drawing
FEATURES
- Measures up to 200 A, wide 0.63 in jaw opening
- Wide voltage range to 1000 VAC/DC
- True-RMS for accurate measurement in all applications
- 600 UA DC for flame rectification
- Built-in voltage detector and LED work light
- Thermocouple (dual banana) input for contact temperature measurement
- Rugged over-molding increases durability and user grip
DESCRIPTION
The Milwaukee fork meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.
Milwaukee® Fork Meter, Heavy Duty Digital, 200 A, 1000 V AC/DC Electrical Rating, 40 mOhm Resistance, 50/60 Hz Frequency, 5/8 in Jaw, 4000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% +/-5 Digits AC Current Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, -40 to 752 deg F Operating, 8 in L Dimensions
SPECIFICATIONS
| Type | : Heavy Duty Digital |
| Electrical Ratings | : 200 A, 1000 V AC/DC |
| Resistance | : 40 mOhm |
| Frequency Rating | : 50/60 Hz |
| Jaw Capacity | : 5/8 in |
| Counts | : 4000 |

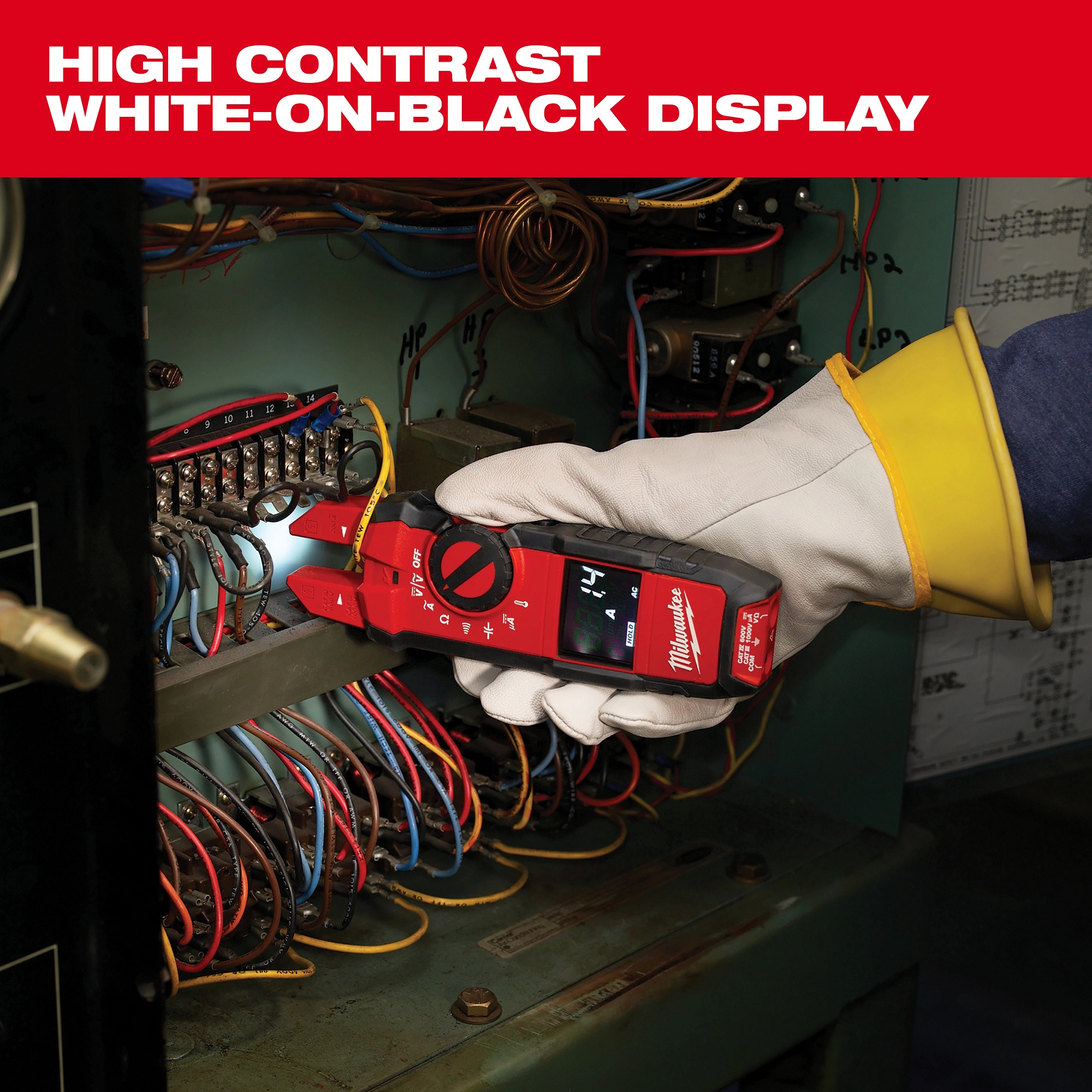

| Display Type | : High Contrast White on Black LCD |
| AC Response | : True RMS |
| AC Current Accuracy | : +/-2% +/-5 Digits |
| Safety Rating | : CAT IV 600 V, CAT III 1000 V |
| Power Source | : AA Alkaline Battery |
| Operating Temperature | : -40 to 752 deg F |
| Dimensions | : 8 in L |
APPLICATION INFO
| Standard/Approvals | : UL Listed |
| Application | : For HVAC/R 2206-20, professional residential, commercial and industrial applications |
| Country of Origin | : TW |
