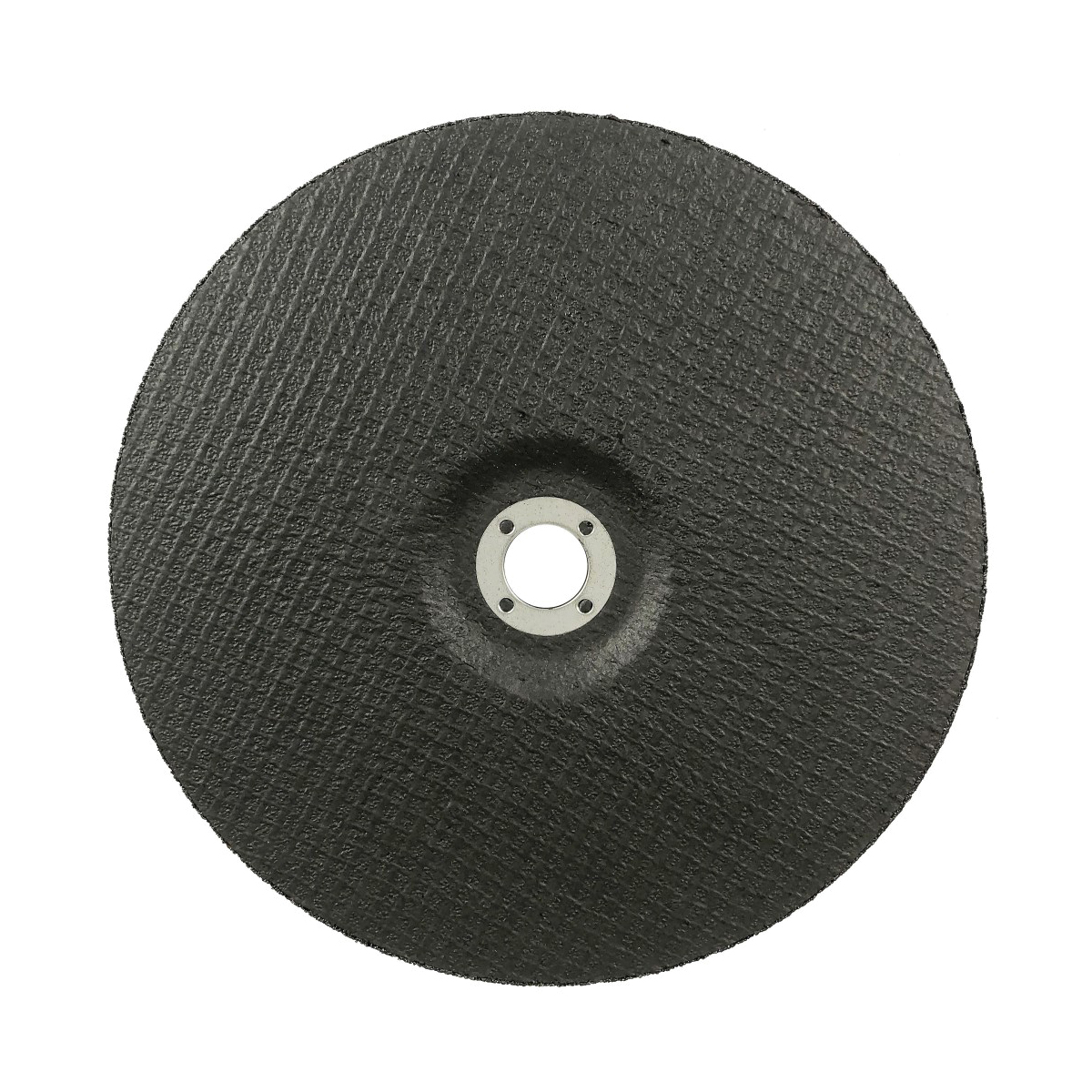

Tiger® Ceramic 68390 Long Life Maximum Performance Superior Cut Grinding Wheel, 9 in Dia x 1/8 in THK, 7/8 in Center Hole, 30 Grit

Tiger® Ceramic 68390 Long Life Maximum Performance Superior Cut Grinding Wheel, 9 in Dia x 1/8 in THK, 7/8 in Center Hole, 30 Grit

Tiger® Ceramic 68390 Long Life Maximum Performance Superior Cut Grinding Wheel, 9 in Dia x 1/8 in THK, 7/8 in Center Hole, 30 Grit


  • Brand: Tiger® Ceramic
  • Mfr# : 68390
  • Item # : WEI 68390
  • UPC #: 012382683900
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Weiler_68370_Catalog.pdf

FEATURES

  • Cool cutting ceramic grain cut at lower temperature and with less friction, reducing heat discoloration of the work piece
  • Less pressure is required to achieve consistent material removal rate for over the life of the wheel, reducing operator fatigue
  • Contaminant-free wheel offer a worry-free solution for stainless steel application
  • Designed with fiberglass cut back from the edge to provide instant aggressive grinding right out of the box
  • Triple fiberglass reinforcement provide added strength for aggressive stock removal
  • Ultra fine microstructure allow the ceramic grain to self-sharpen for ultra high metal removal rate and optimal productivity
  • Unmatched life means more material is removed over the life of the abrasive
  • Advanced anti chipping technology improve safety through the reduction of high energy debris emitted during the grinding process
  • The 1/8 in thickness makes these wheels ideal for light grinding applications as well as blending parting lines, removing flash, and cutting gates and risers
  • Combination wheels offer flexibility and efficiency when switching between cutting and grinding applications
  • Open arbor offers a cost-effective mounting option when using adapting nuts
  • Best for use on cast iron, ductile iron, white iron, gray iron, cast steel, high nickel alloy and stainless steel

DESCRIPTION

Tiger® Ceramic 9 in type 27 depressed center combo wheel deliver the next evolution in technology for portable foundry grinding. The bond is formulated to eliminate uneven edge breakage or chipping on the wheel edge. This technology advancement improve operator safety by reducing high energy debris during the grinding process, eliminate the need to dress the wheel to regain a workable edge and provide longer wheel life and increased consistency. The ceramic grain leverage an engineered ultra fine microstructure that self sharpens for ultra fast grinding. Along with the high metal removal rate, the low specific cutting energy of Tiger® Ceramic result in a significant increase in product life. Combination wheel offer flexibility and efficiency when switching between cutting and grinding application. The 1/8 in thickness make them ideal for light grinding application as well as blending parting line, removing flash and cutting gate and risers with a right angle grinder. Increase production efficiency, reduce downtime and lower overall process cost with Tiger® Ceramic.

Tiger® Ceramic Grinding Wheel, Long Life Maximum Performance Superior Cut, 9 in Wheel Diameter, 1/8 in Wheel, 7/8 in Center Hole, Arbor Connector, 30 Grit, CER30T Grade, Wheel Type Number: Type 27, 6650 rpm Maximum, Resin Bond, Applicable Materials: Armored Steel/Cast Iron/Cast Steel/Ductile Iron/Hard to Grind/High Nickel Alloy/Inconel/Stainless Steel/Steel/Titanium/Tool Steel, Wheel Hardness: T, Black Wheel, Reinforced: Yes, Specifications Met: ANSI B7.1

SPECIFICATIONS

Type      :    Long Life Maximum Performance Superior Cut
Wheel Diameter      :    9 in
Wheel Thickness      :    1/8 in
Center Hole Size      :    7/8 in
Connector Type      :    Arbor
Grit      :    30
Grade      :    CER30T
Wheel Type Number      :    Type 27
Maximum Speed      :    6650 rpm
Bond Type      :    Resin
Applicable Materials      :    Armored Steel/Cast Iron/Cast Steel/Ductile Iron/Hard to Grind/High Nickel Alloy/Inconel/Stainless Steel/Steel/Titanium/Tool Steel
Wheel Hardness      :    T
Wheel Color      :    Black
Reinforced      :    Yes
Specifications Met      :    ANSI B7.1

APPLICATION INFO

Standard/Approvals      :    PROP65: This product can expose you to chemicals including Silica, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Application      :    Foundry Industries, High Frequency Grinder and Right Angle Grinder Applications
Country of Origin      :    SI
