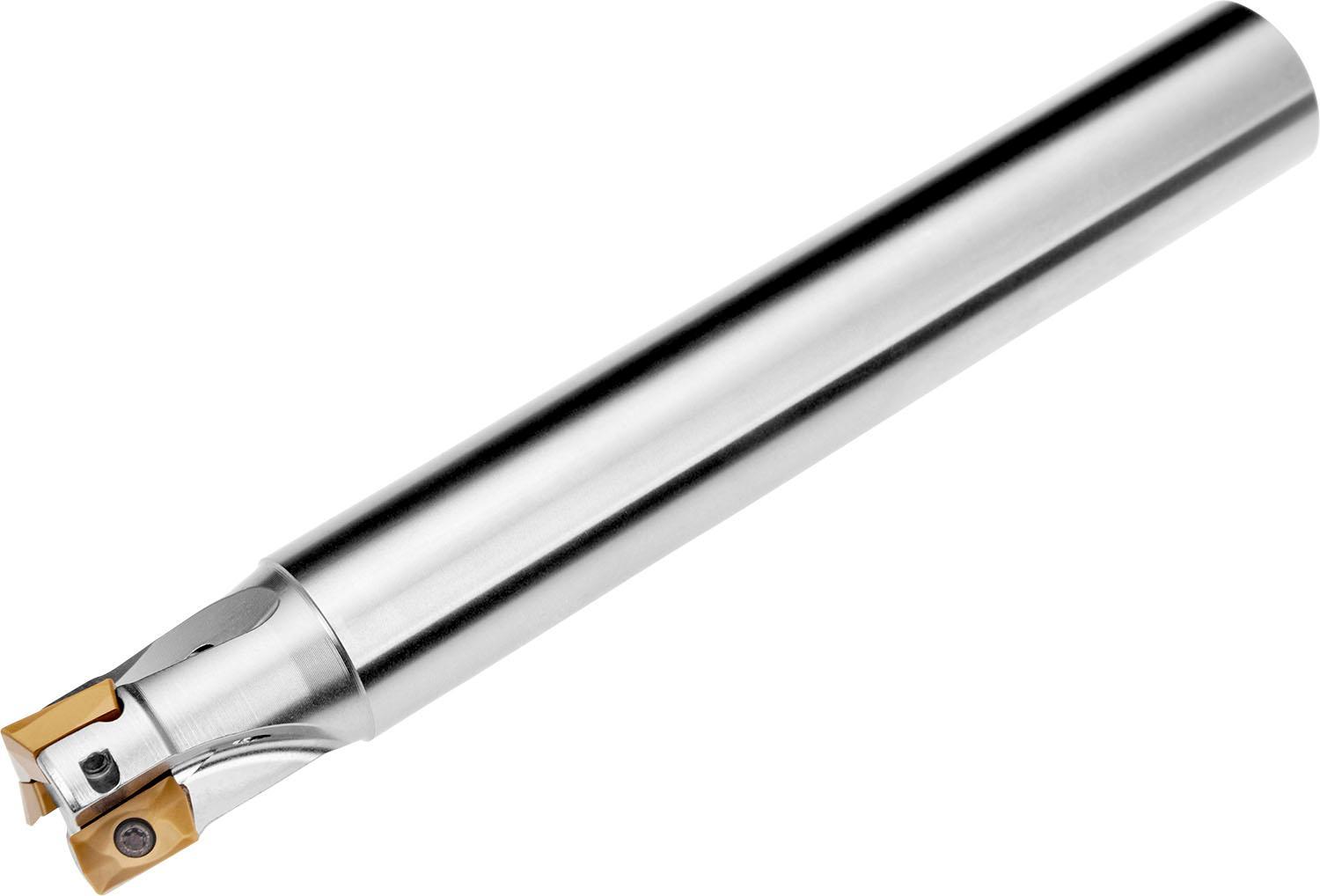

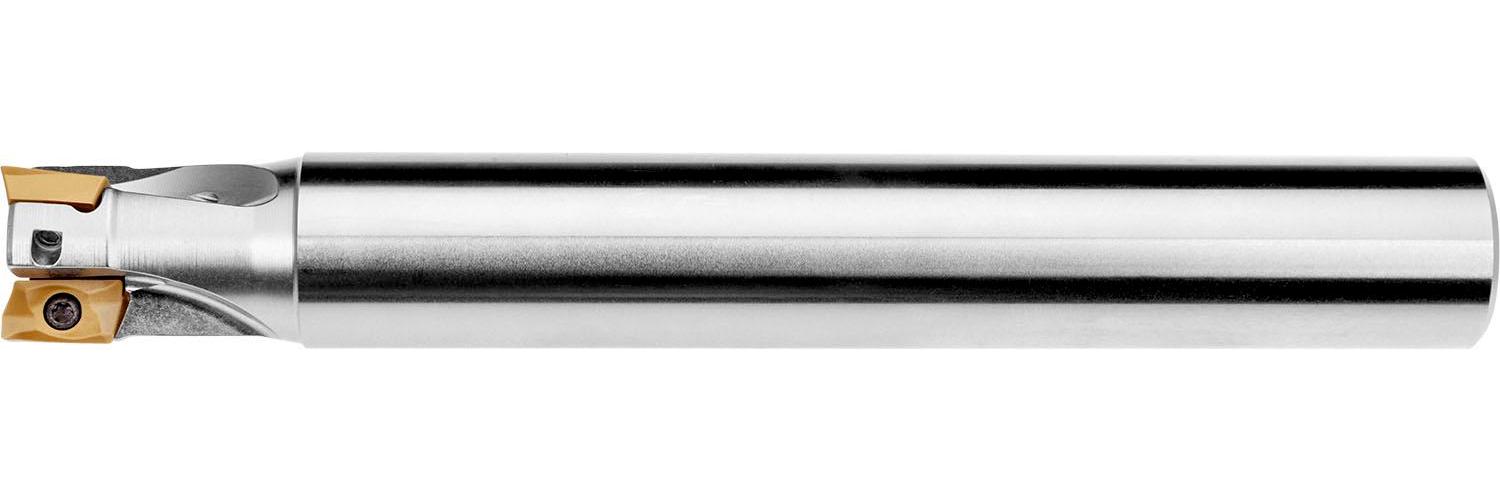

Pramet 6790702 FORCE AD ISAD11E Indexable Square Shoulder Mill, 3/4 in Dia Cutting, Straight Shank, ADMX/ADEX Insert, Right Hand Cutting, 90 deg Lead Angle, 0.354 in Max Depth of Cut
Pramet 6790702 FORCE AD ISAD11E Indexable Square Shoulder Mill, 3/4 in Dia Cutting, Straight Shank, ADMX/ADEX Insert, Right Hand Cutting, 90 deg Lead Angle, 0.354 in Max Depth of Cut
Pramet 6790702 FORCE AD ISAD11E Indexable Square Shoulder Mill, 3/4 in Dia Cutting, Straight Shank, ADMX/ADEX Insert, Right Hand Cutting, 90 deg Lead Angle, 0.354 in Max Depth of Cut
- Brand: Pramet
- Mfr# : 6790702
- Item # : DPT 6790702
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Finishing - very good surface quality
- Medium machining - good surface quality
- Roughing - unlimited surface roughness
DESCRIPTION

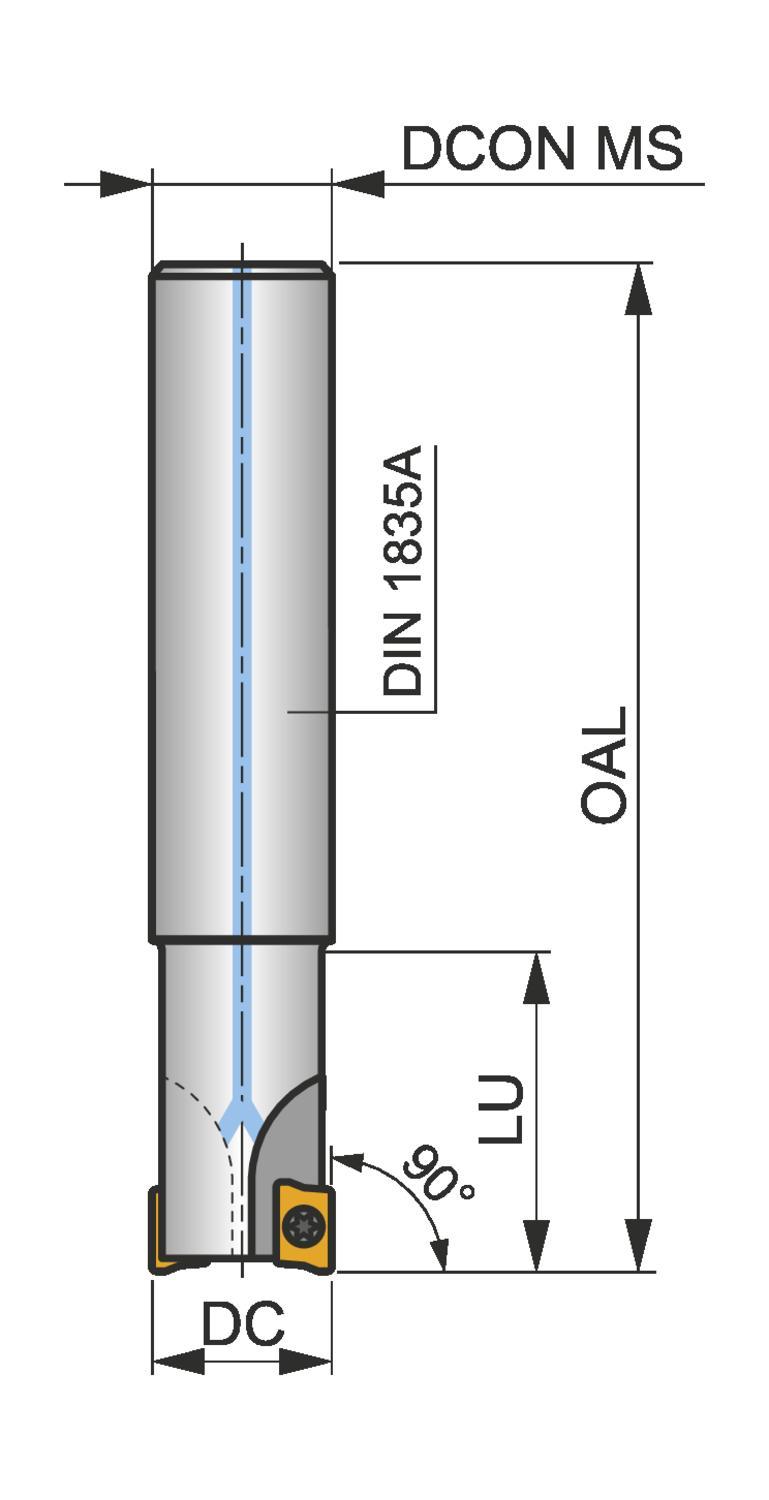

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter .750 in with 90 deg approach angle and .750 in parallel shank according to DIN 1835A, 1.142 in functional and 5.906 in overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354 in.
Pramet Indexable Square Shoulder Mill, Series: FORCE AD ISAD11E, 3/4 in Cutting Dia, 5.906 in Overall Length, 0.354 in Maximum Depth of Cut, ADMX/ADEX Insert, 3 Inserts, Insert Compatibility: ADMX 11SR-F/ADMX 11SR-M/ADMX 11PR-R/ADMX 11T316SR-M/ADMX 11T330SR-M/ADEX HF and ADEX FR-FA, 1.142 in Head Length, 3/4 in Shank Dia, Straight Shank, Right Hand Cutting, ISO Code: 075A3R114C075-ISAD11E-C, US 2505-T08P Insert Gage Screw, 90 deg Lead Angle, Yes Through Coolant (Yes/No), Carbide, Bright/Uncoated
SPECIFICATIONS
| Series | : FORCE AD ISAD11E |
| Cutting Diameter | : 3/4 in |
| Overall Length | : 5.906 in |
| Maximum Depth of Cut | : 0.354 in |
| Insert Style | : ADMX/ADEX |
| Number of Inserts | : 3 |
| Insert Compatibility | : ADMX 11SR-F/ADMX 11SR-M/ADMX 11PR-R/ADMX 11T316SR-M/ADMX 11T330SR-M/ADEX HF and ADEX FR-FA |
| Head Length | : 1.142 in |
| Shank Diameter | : 3/4 in |
| Shank Type | : Straight |
| Cutting Direction | : Right Hand |
| ISO Code | : 075A3R114C075-ISAD11E-C |
| Insert Gage Screw | : US 2505-T08P |
| Lead Angle | : 90 deg |
| Through Coolant (Yes/No) | : Yes |
| Material | : Carbide |
| Finish | : Bright/Uncoated |
APPLICATION INFO
| Standard/Approvals | : DIN 1835-1|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov |
| Application | : For low shoulder milling and plunge milling |
| Country of Origin | : CZ |
