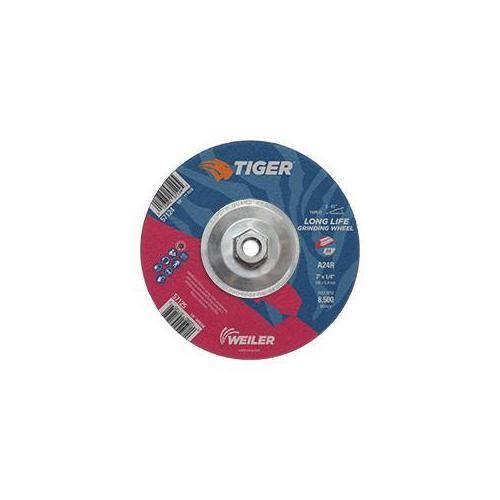

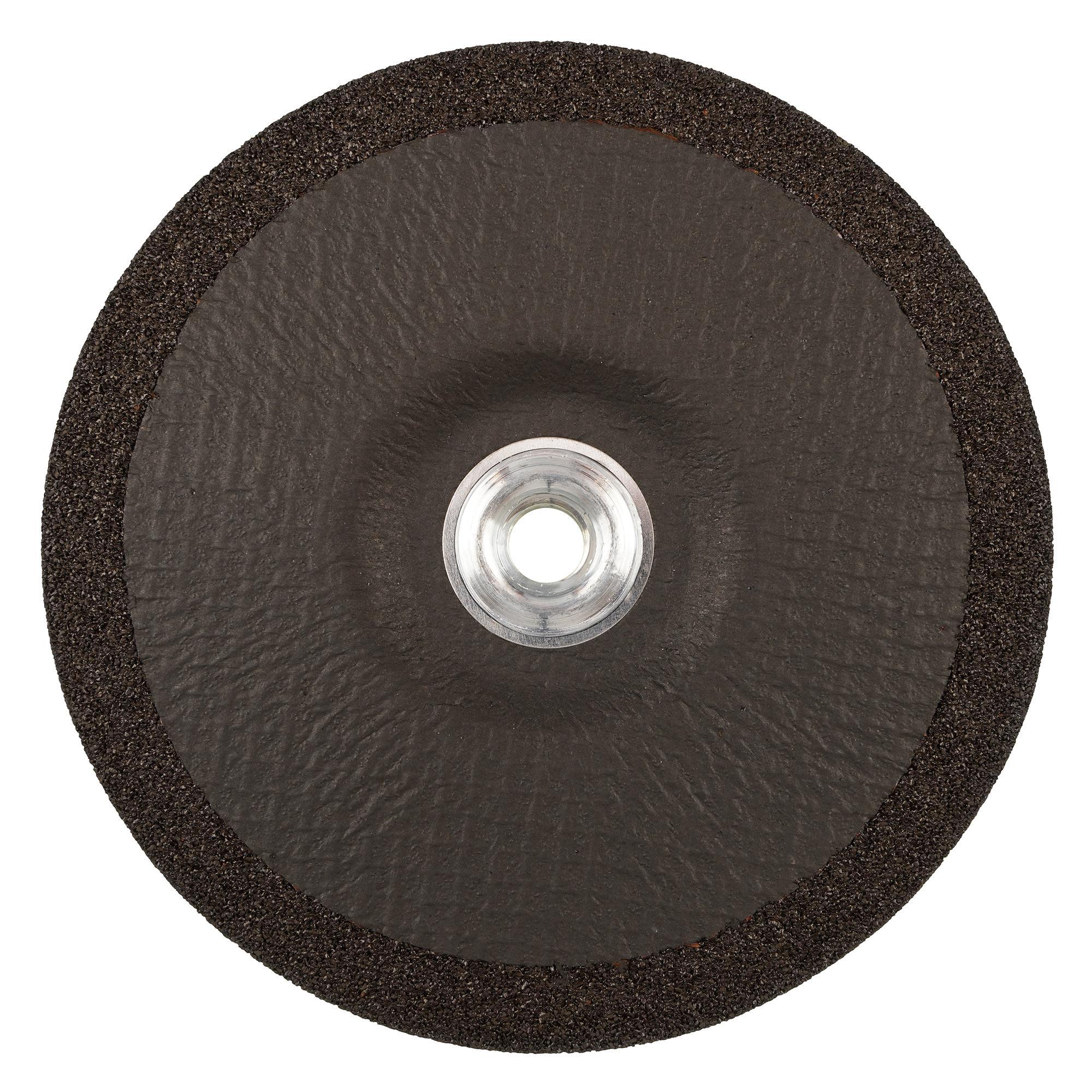

Tiger® 57124 Performance Line Depressed Center Grinding Wheel, 7 in Dia x 1/4 in THK, 24 Grit, Premium Aluminum Oxide Abrasive
Tiger® 57124 Performance Line Depressed Center Grinding Wheel, 7 in Dia x 1/4 in THK, 24 Grit, Premium Aluminum Oxide Abrasive
Tiger® 57124 Performance Line Depressed Center Grinding Wheel, 7 in Dia x 1/4 in THK, 24 Grit, Premium Aluminum Oxide Abrasive
- Brand: Tiger®
- Mfr# : 57124
- Item # : WEI 57124
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Longer wheel life reduces change-overs and removes more material
- Optimum Use Line helps maximize wheel life, improving productivity and sustainability
- Designed with fiberglass cut back from the edge for aggressive grinding right out of the box
- Advanced 2.0 bond formulation reduces uneven edge wear and chipping, improving operator experience and extending wheel life
- 5/8 in - 11 nutted metal hub allows for quick spin-on, spin-off changeover and eliminates cross-threading or sticking to spindle due to heat build-up
DESCRIPTION
Weiler® high quality line of grinding wheels help metal fabrication professionals get the most demanding jobs done right and done fast.
Tiger® Depressed Center Grinding Wheel, Performance Line, 7 in Wheel Dia, 1/4 in, Quick-Change Connector, 24 Grit, Coarse Grade, Premium Aluminum Oxide Abrasive, Wheel Type Number: Type 27, 8500 rpm Maximum, Resin Bond, Applicable Materials: Carbon Steel, Structural Steel, Cast Iron and General Purpose Metals, 5/8-11 Center Hole Thread Size, Wheel Hardness: R, Reinforced: Yes, ANSI B7.1-2010
SPECIFICATIONS
| Type | : Performance Line |
| Wheel Diameter | : 7 in |
| Wheel Thickness | : 1/4 in |
| Connector Type | : Quick-Change |
| Grit | : 24 |
| Grade | : Coarse |
| Abrasive Material | : Premium Aluminum Oxide |
| Wheel Type Number | : Type 27 |
| Maximum Speed | : 8500 rpm |
| Bond Type | : Resin |
| Applicable Materials | : Carbon Steel, Structural Steel, Cast Iron and General Purpose Metals |
| Center Hole Thread Size | : 5/8-11 |
| Wheel Hardness | : R |
| Reinforced | : Yes |
| Specifications Met | : ANSI B7.1-2010 |
APPLICATION INFO
| Standard/Approvals | : ANSI B7.1-2010|CSA Approved |
| Application | : Grinding, Heavy Stock Removal, Scale Removal, Weld Removal, Weld Blending, Grinders, Edge Beveling and Torch-Cut Softening |
| Country of Origin | : SI |
