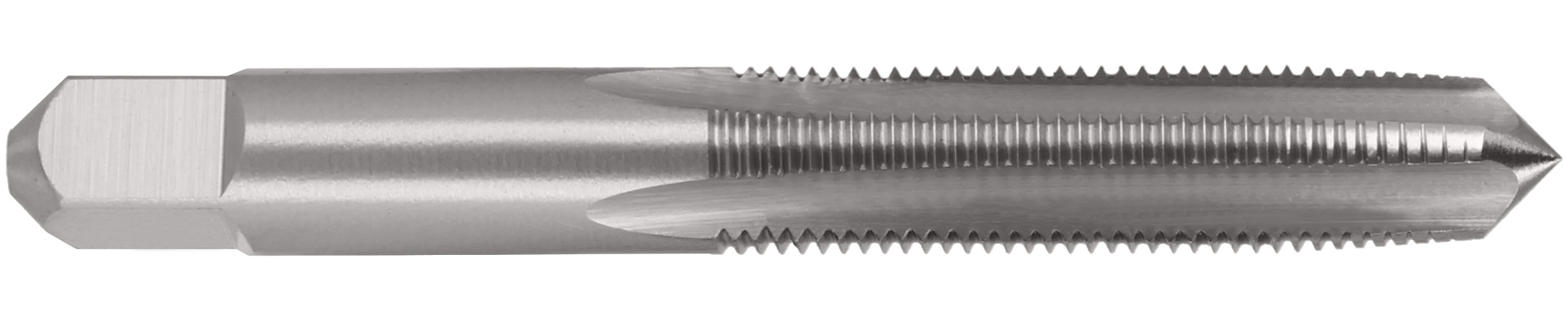

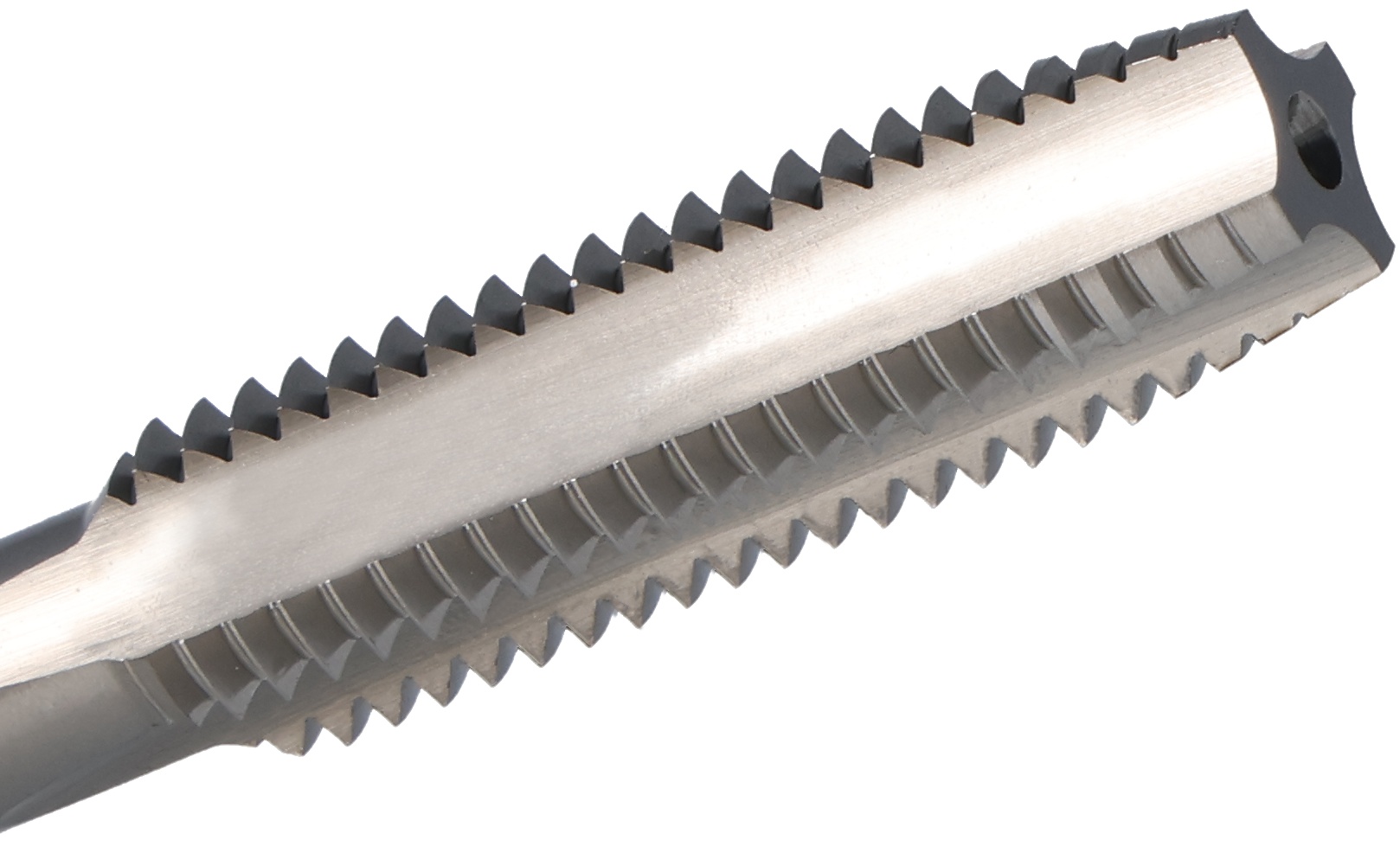

Greenfield Threading Vermont Tap and Die® 328422 HTGP General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, M6x1 Thread, D5 Thread Limit, Tapered Chamfer, 4 Flutes, Uncoated, HSS
Greenfield Threading Vermont Tap and Die® 328422 HTGP General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, M6x1 Thread, D5 Thread Limit, Tapered Chamfer, 4 Flutes, Uncoated, HSS
Greenfield Threading Vermont Tap and Die® 328422 HTGP General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, M6x1 Thread, D5 Thread Limit, Tapered Chamfer, 4 Flutes, Uncoated, HSS
- Brand: Greenfield Threading
- Mfr# : 328422
- Item # : GRE 328422
- UPC #: 662355147818
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Bright finish adds lubricity and is ideal for drilling in non-ferrous materials like aluminum
- Taper shank is sized according to American Standards
- Straight-flute drill bits have increased edge strength, good size control, and superior hole surface finish
DESCRIPTION
Chicago-Latrobe HTGP Taps are general-purpose straight flute hand taps for through or blind holes. In HSS with a Bright finish, and available in taper, plug, and bottoming styles. Optimized for precise tapping speeds.
Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP, Measurement System: Metric, Ground/Coarse Thread Standard, M6x1 Thread, Tapered Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 6H, Right Hand Cutting Direction, 16 mm Thread Length, 63.5 mm Overall Length, 6.48 mm Shank Diameter, Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials Material Application, D5 Thread Limit
SPECIFICATIONS
| Type | : General Purpose Standard |
| Series | : HTGP |
| Measurement System | : Metric |
| Thread Standard | : M |
| Thread Size | : M6x1 |
| Chamfer Type | : Tapered |
| Number of Flutes | : 4 |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |
| Thread Length | : 16 mm |
| Overall Length | : 63.5 mm |
| Shank Diameter | : 6.48 mm |
| Material Application | : Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials |
| Thread Limit | : D5 |
APPLICATION INFO
| Standard/Approvals | : USCTI 302A |
| Application | : For blind hole applications |
| Country of Origin | : US |
