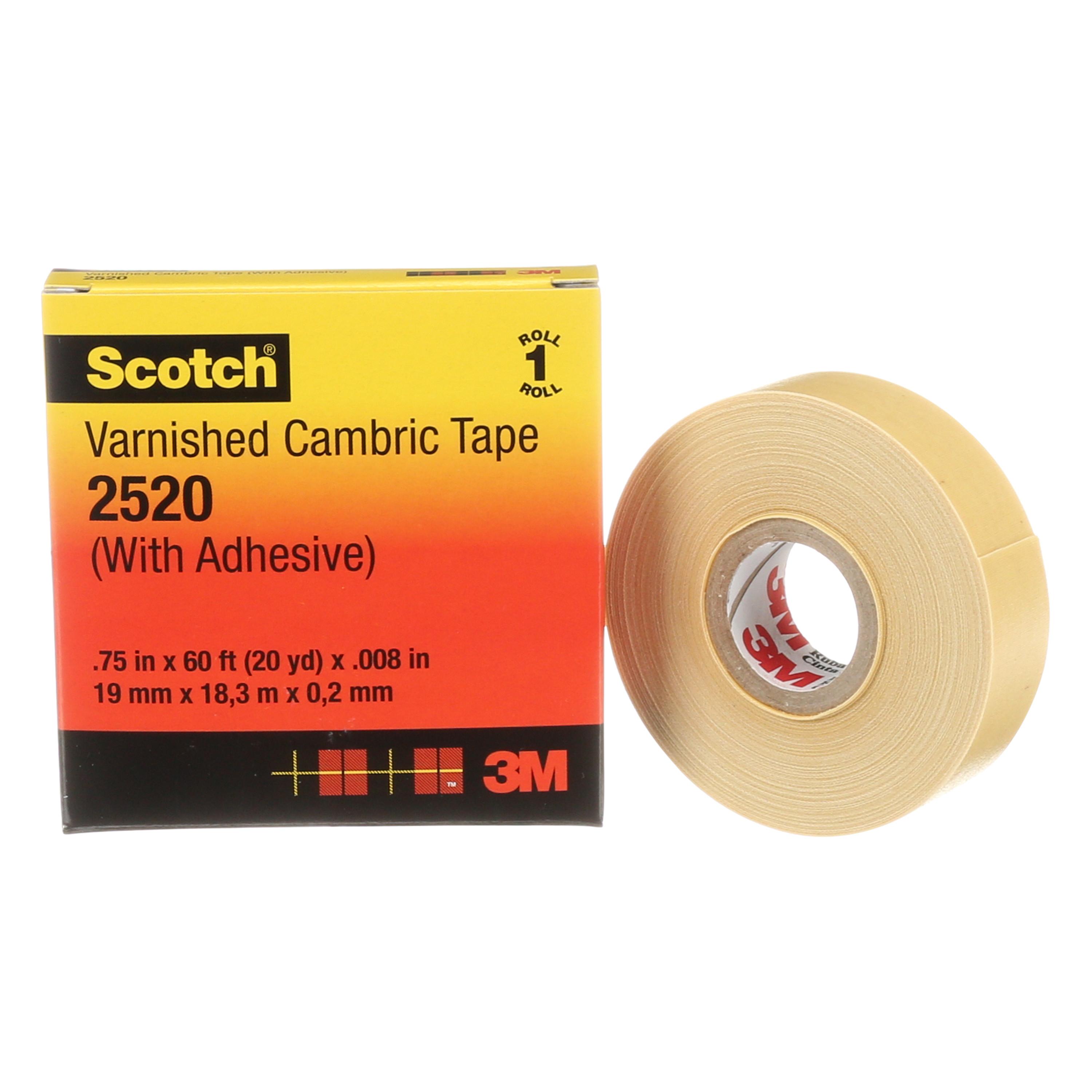

Scotch® 7000031629 Electrical Maintenance Tape, 20 yd L 0.75 in W, 8 mil THK, Rubber Resin Adhesive, Cotton Cloth Backing, Yellow
Scotch® 7000031629 Electrical Maintenance Tape, 20 yd L 0.75 in W, 8 mil THK, Rubber Resin Adhesive, Cotton Cloth Backing, Yellow
Scotch® 7000031629 Electrical Maintenance Tape, 20 yd L 0.75 in W, 8 mil THK, Rubber Resin Adhesive, Cotton Cloth Backing, Yellow
- Brand: Scotch®
- Mfr# : 7000031629
- Item # : MMM 2520-3/4X60
- UPC #: 054007048367
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES

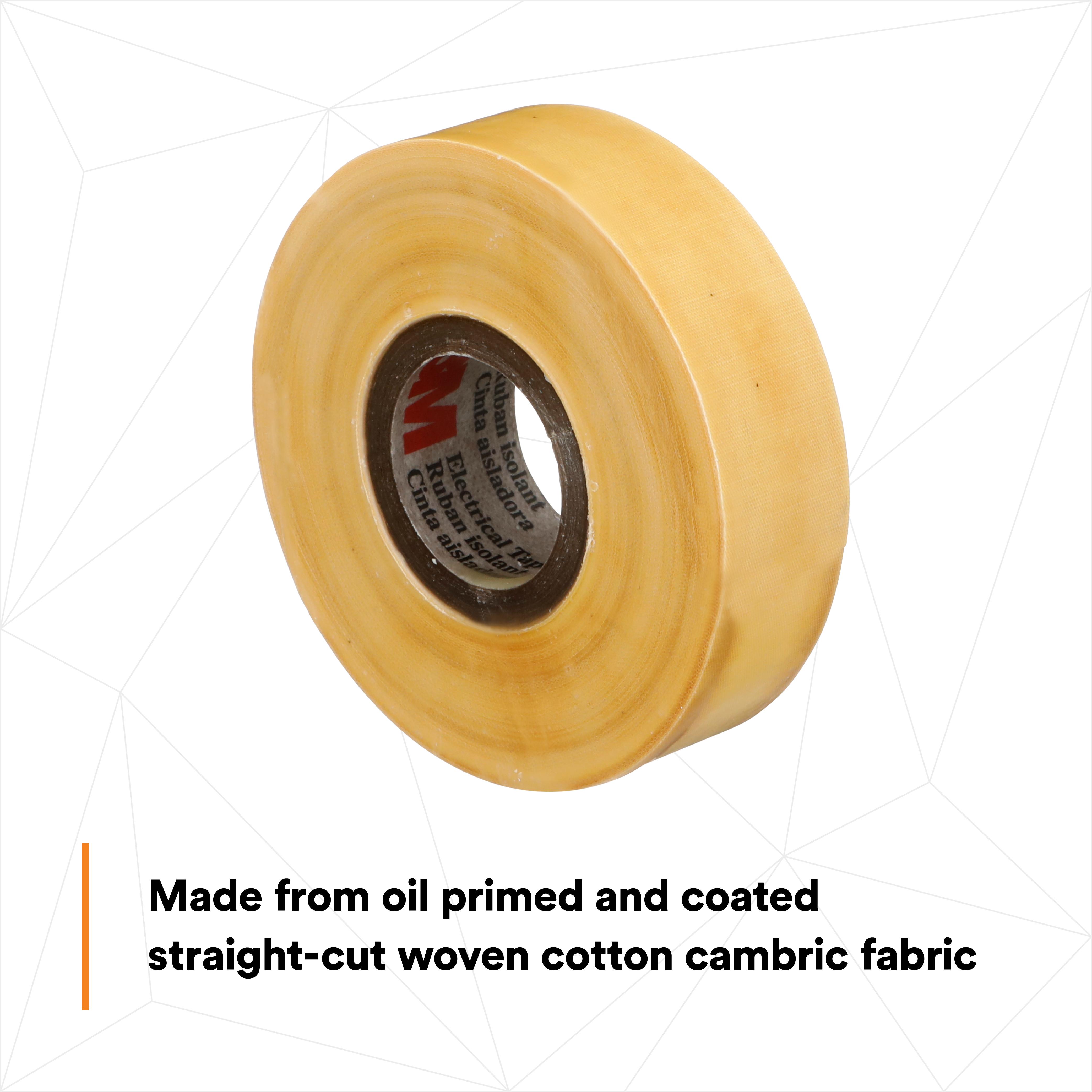

- Tape is made from oil primed and coated straight-cut woven cotton cambric fabric
- This varnished cambric tape is rated up to 221F (105C)
- Non-corrosive pressure-sensitive adhesive holds tape in position until jacketing is applied
- This tape should not be used as primary insulation for splicing and terminating PILC Cable
DESCRIPTION

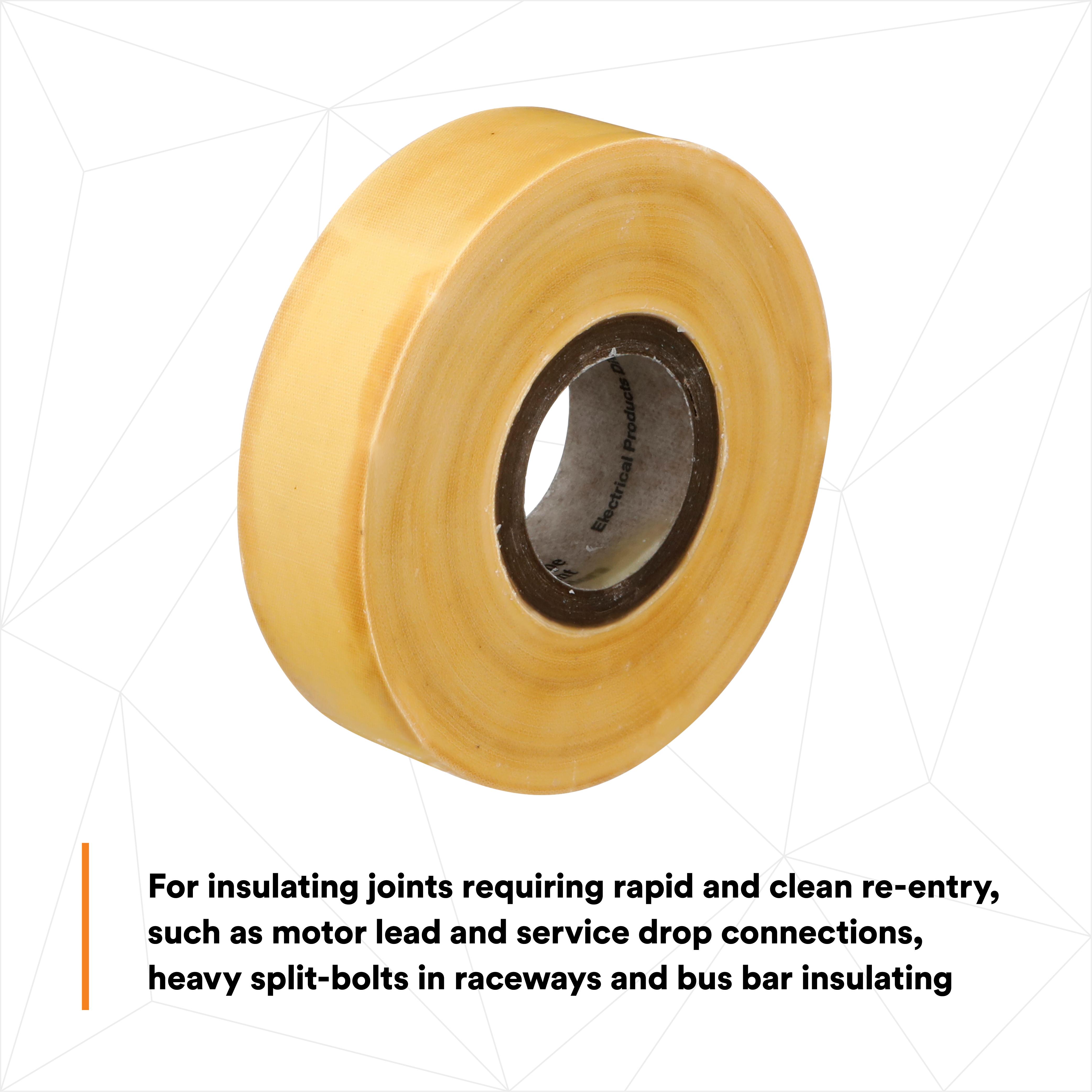

Scotch Varnished Cambric Tape 2520 is an 8-mil thick conformable tape with a non-corrosive, pressure-sensitive adhesive that is suitable for bus bar, motor leads and service drop connections. Varnished Cambric tapes are flexible, electrically insulating and moisture resistant with a smooth finish. The tape is made from straight-cut woven cotton cambric fabric that is oil primed and coated with a high-grade yellow electrical insulating varnish.
Scotch®, 7000031629, Tape, Electrical Maintenance, 20 yd Length, 0.75 in Width, 8 mil Thickness, Yellow, Rubber Resin Adhesive, Cotton Cloth Backing, 800 V/mil Dielectric Strength, 876 N/100 mm Tensile Strength, 221 deg F Maximum Operating
SPECIFICATIONS

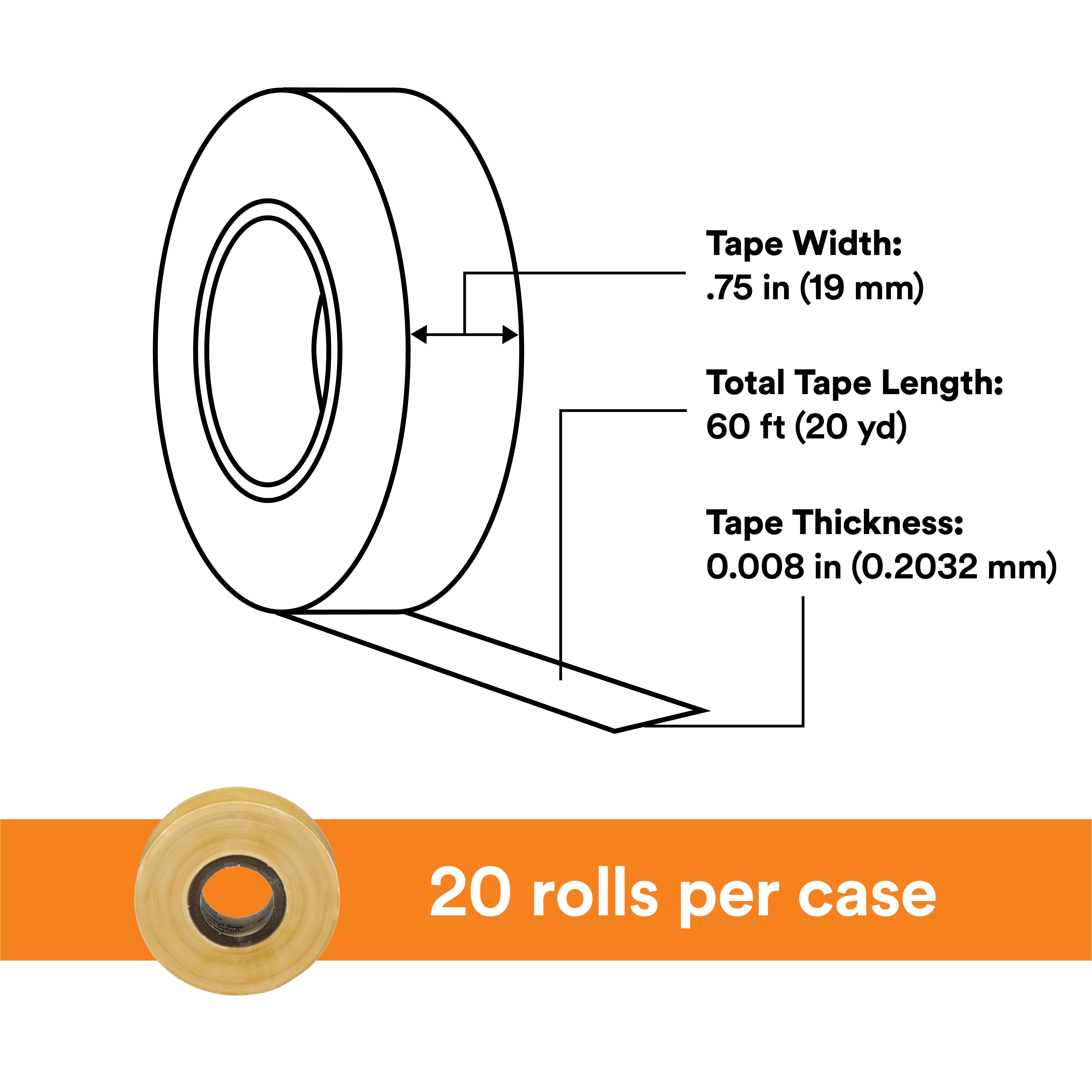

| Type | : Electrical Maintenance |
| Length | : 20 yd |
| Width | : 0.75 in |
| Thickness | : 8 mil |
| Material Type | : Cambric Fabric |
| Color | : Yellow |
| Adhesive Material | : Rubber Resin |
| Backing Material | : Cotton Cloth |
| Adhesion Strength | : 13 in-oz |
| Dielectric Strength | : 800 V/mil |
| Tensile Strength | : 876 N/100 mm |
| Maximum Operating Temperature | : 221 deg F |
| Specifications Met | : ASTM D 1000, ASTM D 374, ASTM D 295 |
APPLICATION INFO
| Standard/Approvals | : RoHS 2011/65/EU Compliant |
| Application | : For Electrical Maintenance |
| Country of Origin | : US |
