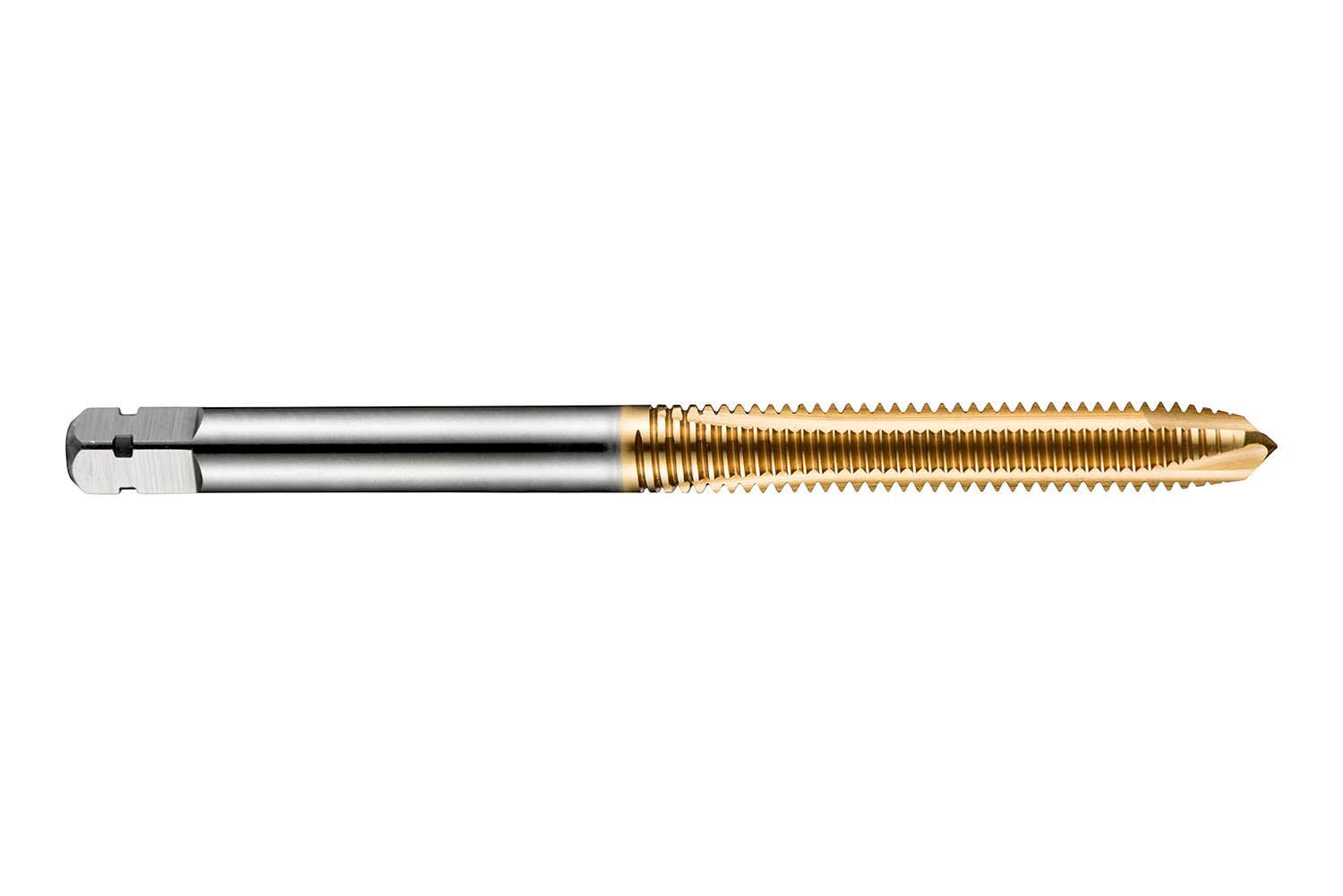

Dormer 6196638 E000TIN Spiral Point Tap, Right Hand Cutting, M6x1 Thread, D5 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS-E
Dormer 6196638 E000TIN Spiral Point Tap, Right Hand Cutting, M6x1 Thread, D5 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS-E
Dormer 6196638 E000TIN Spiral Point Tap, Right Hand Cutting, M6x1 Thread, D5 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS-E
- Brand: Dormer
- Mfr# : 6196638
- Item # : DPT 6196638
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Premium substrate for through hole tapping in tough or abrasive materials
- Bronze oxide body and shank reduces rust and corrosion
DESCRIPTION
Dormer Spiral Point Tap, Series: E000TIN, Measurement System: Metric, Coarse, M6x1, Plug Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 6H, Right Hand Cutting, 13 mm Thread Length, 66 mm Overall Length, 6.3 mm Shank Dia, Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, D5 Thread Limit
SPECIFICATIONS
| Series | : E000TIN |
| Measurement System | : Metric |
| Thread Standard | : Coarse |
| Thread Size | : M6x1 |
| Chamfer Type | : Plug |
| Number of Flutes | : 3 |
| Material | : HSS-E |
| Finish/Coating | : TiN Coated |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |
| Thread Length | : 13 mm |
| Overall Length | : 66 mm |
| Shank Diameter | : 6.3 mm |
| Material Application | : Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials |
| Thread Limit | : D5 |
APPLICATION INFO
| Standard/Approvals | : ISO 529|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov |
| Application | : For through hole and multi applications |
| Country of Origin | : IN |
