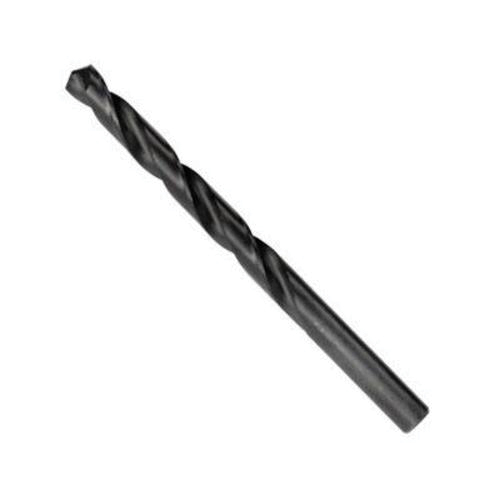

Irwin® 63507 Heavy Duty Jobber Length Drill Bit, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, 135 deg Point, M2 HSS, Black Oxide
Irwin® 63507 Heavy Duty Jobber Length Drill Bit, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, 135 deg Point, M2 HSS, Black Oxide
Irwin® 63507 Heavy Duty Jobber Length Drill Bit, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, 135 deg Point, M2 HSS, Black Oxide
- Brand: Irwin®
- Mfr# : 63507
- Item # : IRW 63507
- UPC #: 042526635076
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Bit is constructed of M-2 high speed steel for the best combination of strength, heat resistance and wear resistance
- Black oxide coating resists corrosion
- 135 deg split point ensures a true start and eliminates bit walking
DESCRIPTION
Irwin® Jobber Length Drill Bit, Heavy Duty, Series: 635, Imperial, 7/64 in Drill - Fraction, 0.1094 in Drill - Decimal Inch, 2-5/8 in Overall Length, 1-1/2 in Cutting Depth, 1 Flutes, Spiral Flute, 1-1/2 in Flute Length, 7/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M2 HSS Cutting Edge, No Through Coolant, M2 HSS, Black Oxide, Applicable Materials: Metal, Plastic and Wood
SPECIFICATIONS
| Type | : Heavy Duty |
| Series | : 635 |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Fraction | : 7/64 in |
| Drill Size - Decimal Inch | : 0.1094 in |
| Overall Length | : 2-5/8 in |
| Cutting Depth | : 1-1/2 in |
| Number of Flutes | : 1 |
| Flute Type | : Spiral |
| Flute Length | : 1-1/2 in |
| Shank Size | : 7/64 in |
| Shank Type | : Straight |
| Point Angle | : 135 deg |
| Point Type | : Split |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : M2 HSS |
| Through Coolant (Yes/No) | : No |
| Material | : M2 HSS |
| Finish | : Black Oxide |
| Applicable Materials | : Metal, Plastic and Wood |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : For general purpose applications |
