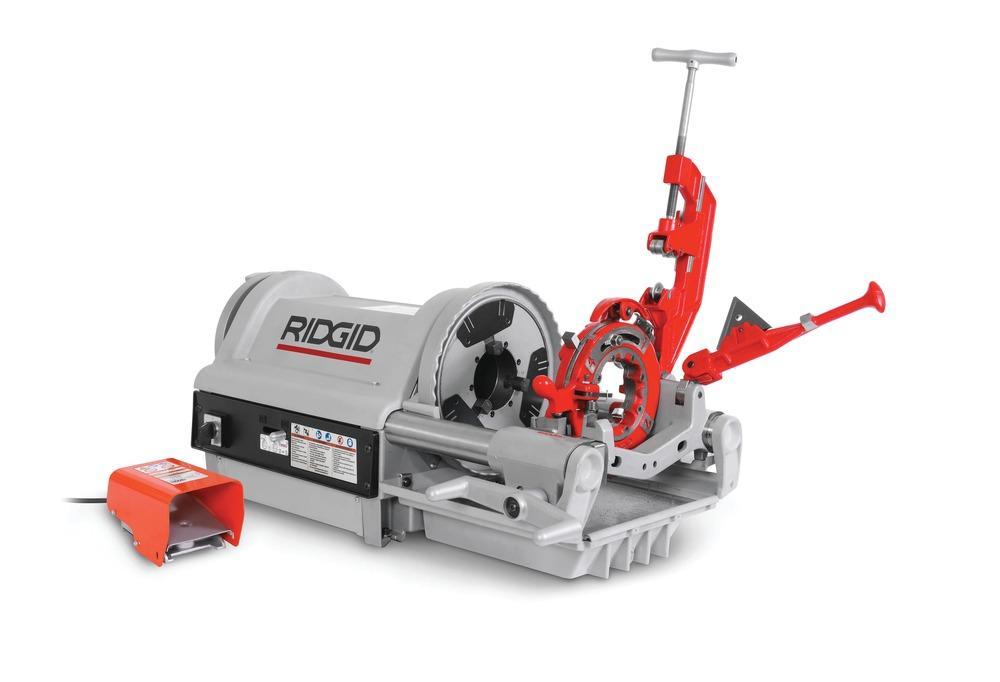

RIDGID® 26092 Threading Machine Kit, 1/2 to 4 in Pipe, 18-1/2 in L 72-1/2 in W, 1/4 to 2 in Bolt, 120 V AC, 1.5 hp, 36/12 rpm Speed, Yes
RIDGID® 26092 Threading Machine Kit, 1/2 to 4 in Pipe, 18-1/2 in L 72-1/2 in W, 1/4 to 2 in Bolt, 120 V AC, 1.5 hp, 36/12 rpm Speed, Yes
RIDGID® 26092 Threading Machine Kit, 1/2 to 4 in Pipe, 18-1/2 in L 72-1/2 in W, 1/4 to 2 in Bolt, 120 V AC, 1.5 hp, 36/12 rpm Speed, Yes
- Brand: RIDGID®
- Mfr# : 26092
- Item # : RID 26092
- UPC #: 095691260925
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Two-speed gear box with a 3:1 ratio
- Quiet operation: an induction motor insures sound levels well within the limits set by OSHA
- Cam action rear centering device
- A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
- Low voltage operation: special start/run capacitors allow operation in less than ideal conditions
- Hammer-type chuck with replaceable rocker action jaw inserts
- 1/4 to 2 in universal die head, 2-1/2 to 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT connection/BSPP threads
- An induction motor helps minimize noise
- The Model: 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C
- Self-priming, gerotor type, automatic-reversing, constant flow oiling pump
- Constant and proper lubrication of dies and workpiece with through head oiling
DESCRIPTION
The RIDGID® model 1224 is the industry standard 4 in threading machine. Thousands of satisfied customers around the world give testimony of its dependability.
RIDGID®, 26092, Threading Machine Kit, Bare Tool/Kit: Kit, 1/2 to 4 in Pipe, 36/12 rpm Speed, 1.5 hp, 120 V AC, 15 A, 1/4 to 2 in Bolt, 18-1/2 in Overall Length, 72-1/2 in Overall Width, Reversing: Yes, Polyethylene Housing Material, Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch Control, 72-1/2 in W Dimensions
SPECIFICATIONS
| Bare Tool/Kit | : Kit |
| Pipe Capacity | : 1/2 to 4 in |
| Speed | : 36/12 rpm |
| Horsepower | : 1.5 hp |
| Voltage Rating | : 120 V AC |
| Amperage Rating | : 15 A |
| Bolt Size | : 1/4 to 2 in |
| Overall Length | : 18-1/2 in |
| Overall Width | : 72-1/2 in |
| Reversing | : Yes |
| Housing Material | : Polyethylene |
| Control Type | : Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch |
| Dimensions | : 72-1/2 in W |
APPLICATION INFO
| Country of Origin | : US |
