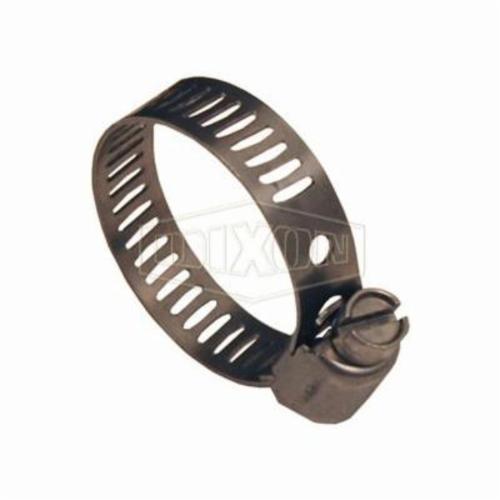

Dixon® MAH4 Miniature Worm Gear Clamp, 14/64 to 40/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic
Dixon® MAH4 Miniature Worm Gear Clamp, 14/64 to 40/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic
Dixon® MAH4 Miniature Worm Gear Clamp, 14/64 to 40/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic
- Brand: Dixon®
- Mfr# : MAH4
- Item # : HHR MAH4
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- 1/4 in slotted hex head screw design
- SAE 300 series stainless steel
- Maximum recommended torque is 15 in. lbs
- Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp
- Wash hands after handling
DESCRIPTION
Dixon® Worm Gear Clamp, Miniature, Series: MAH, Clamping Range: 14/64 to 40/64 in, 5/16 in Width, 1/4 in Bolt, 15 in-lb, Grade:300, Stainless Steel Band, Stainless Steel Screw, Domestic
SPECIFICATIONS
| Type | : Miniature |
| Series | : MAH |
| Clamping Range | : 14/64 to 40/64 in |
| Width | : 5/16 in |
| Bolt Size | : 1/4 in |
| Grade | : 300 |
| Torque Rating | : 15 in-lb |
| Band Material | : Stainless Steel |
| Bolt Material | : Stainless Steel Screw |
| Domestic/Import | : Domestic |
APPLICATION INFO
| Standard/Approvals | : SAE J1508 |
| Country of Origin | : US |
