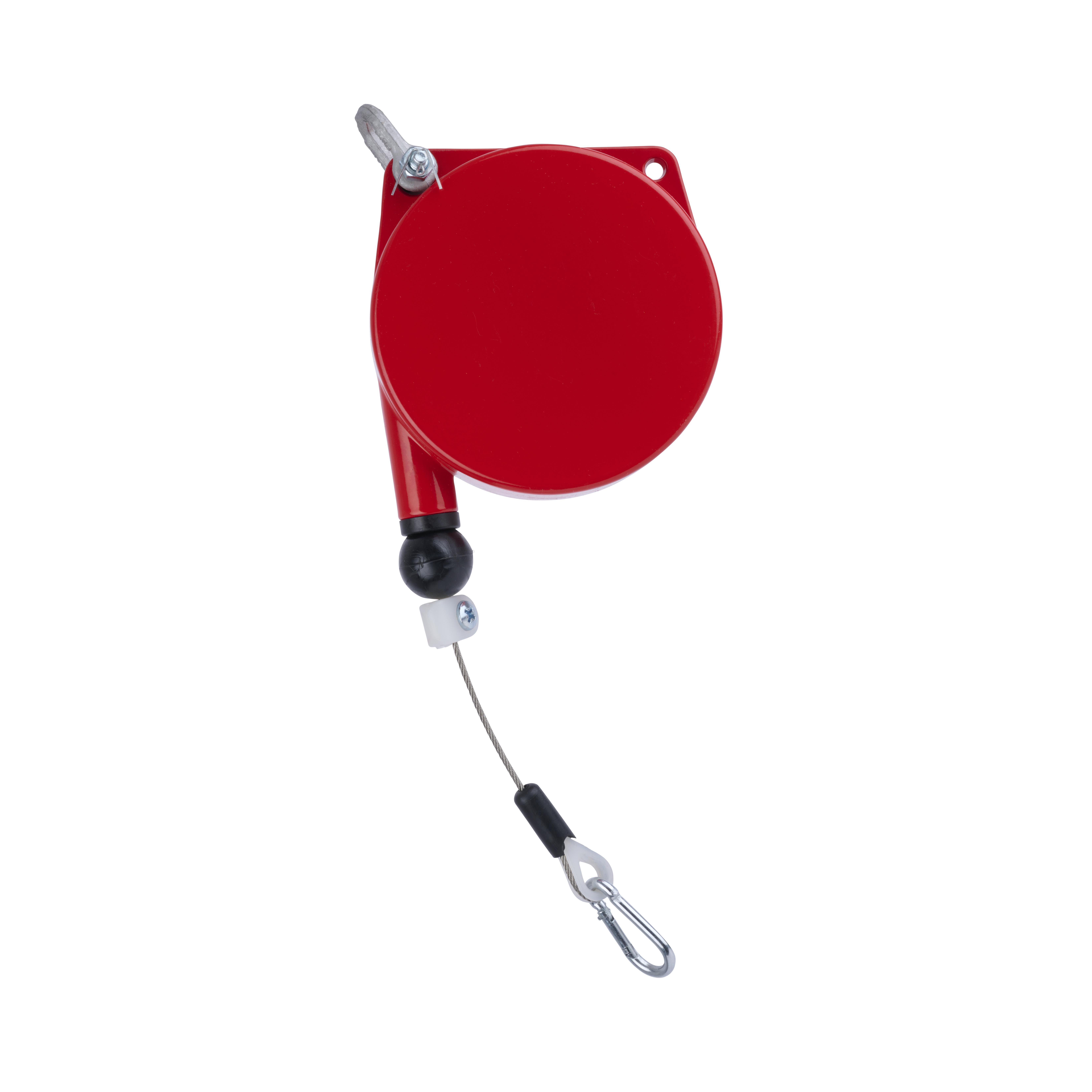

ARO® BLD1 Light Duty Balancer, 0.9 to 2.2 lb Load, 5.2 ft L Cable, Rotation Tension Adjustment
ARO® BLD1 Light Duty Balancer, 0.9 to 2.2 lb Load, 5.2 ft L Cable, Rotation Tension Adjustment
- Brand: ARO®
- Mfr# : BLD1
- Item # : ARO BLD1
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Rugged construction, cast aluminum body
- Adjustable capacity and stroke limiting device
- 4-sided 6-way adjustment knob for smoother response and better ergonomics
- Cable guide in anti-friction material
- Flat casing on the back of the balancer to make it easier to pack on rails
- New rope mouth bushing to help reduce wear and tear
DESCRIPTION
With more than 50 models to choose from, there's an Ingersoll-Rand balancer to satisfy virtually any balancing requirement. These balancers are ruggedly built of die cast aluminum for strength and reduced weight. They feature easy-to-use controls that allow for accurate spring adjustment.
ARO® Balancer, Light Duty, Series: BLD, 0.9 to 2.2 lb, 5.2 ft Cable Length, 1.3 lb Reel Weight, Rotation Tension Adjustment, 11-1/2 in Height, 4.3 in Width, 2.2 in D, 304 Stainless Steel Cable, Cast Aluminum Housing, Non-Locking Locking, Rotating Hook Mount
SPECIFICATIONS
| Type | : Light Duty |
| Series | : BLD |
| Load Capacity | : 0.9 to 2.2 lb |
| Cable Length | : 5.2 ft |
| Reel Weight | : 1.3 lb |
| Tension Adjustment | : Rotation |
| Height | : 11-1/2 in |
| Width | : 4.3 in |
| Depth | : 2.2 in |
| Cable Material | : 304 Stainless Steel |
| Housing Material | : Cast Aluminum |
| Locking Type | : Non-Locking |
| Mounting Type | : Rotating Hook |
APPLICATION INFO
| Country of Origin | : IT |
