RIDGID® 66947 300 Compact Kit Threading Machine Kit, 1/8 to 2 in Pipe, 1/4 to 2 in Bolt, 115 VAC, 1/2 hp, 36 rpm Speed

RIDGID® 66947 300 Compact Kit Threading Machine Kit, 1/8 to 2 in Pipe, 1/4 to 2 in Bolt, 115 VAC, 1/2 hp, 36 rpm Speed

RIDGID® 66947 300 Compact Kit Threading Machine Kit, 1/8 to 2 in Pipe, 1/4 to 2 in Bolt, 115 VAC, 1/2 hp, 36 rpm Speed


  • Brand: RIDGID®
  • Mfr# : 66947
  • Item # : RID 66947
  • UPC #: 095691669476
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Emerson_Electric_54412_Data_Sheet.pdf
  • pdf Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f46eba2ef71a9145cecf1bb47e052b7873d005de71622f88a1e184340fcda903.pdf

FEATURES

  • Heavy duty proven performance
  • Lightweight, portable design
  • Fast transport and set-up
  • Self-contained oil system with adjustable flow control
  • Versatility for threading and grooving
  • Quiet operation
  • Hammer-type chuck with replaceable rocker action jaw inserts
  • Through-the-head, with integral oil reservoir with self-priming, constant flow, gerotor pump oiling system

DESCRIPTION

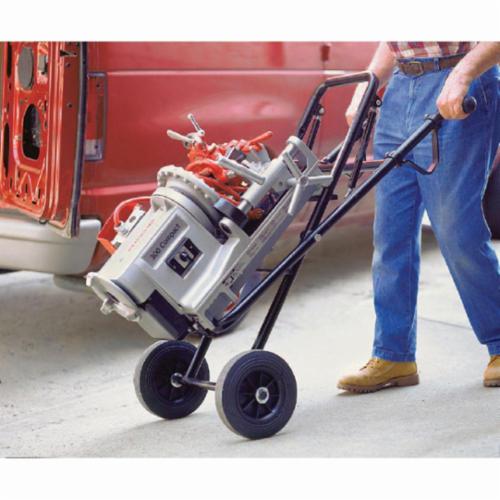

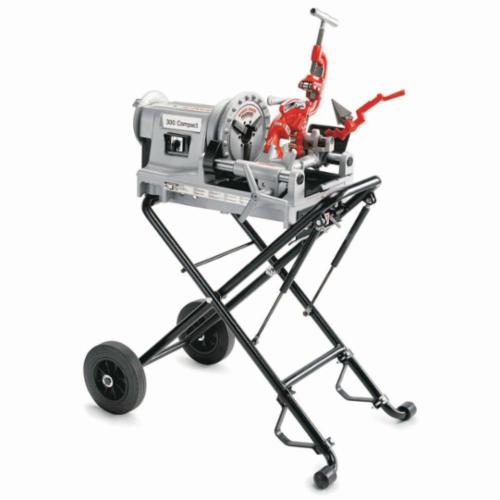

The 300 compact 1/8 to 2 in threading machine is a proven performer! ideal for the field, the 300 compact is the perfect machine for service trucks and in-house maintenance, or any application where portability and versatility are needed. And at only 115 lb, the 300 compact is the lightest, most portable 2 in capacity threading machine in the RIDGID® product line. When teamed with the optional model 250 folding wheel stand, you have a highly portable 160 lb. Field machine. The 300 compact is versatile: the optional model 916 groover adapter Bracket accepts the 300 power drive version of the model 916 and allows grooving of 2 to 6 in pipe. With an integral oiling system and reservoir seal to prevent spills during transport, transmission and covers designed to reduce noise, 1 /2 hp motor for powerful operation, and foot switch storage clip for safety, the 300 compact offers rugged dependability where you need it most: in the field.

RIDGID® Threading Machine Kit, Kit, 1/8 to 2 in, 36 rpm, 1/2 hp, 115 VAC, 15 A, 1/4 to 2 in Bolt, Reversing: Yes, Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch Control

SPECIFICATIONS

Bare Tool/Kit      :    Kit
Pipe Capacity      :    1/8 to 2 in
Speed      :    36 rpm
Horsepower      :    1/2 hp
Voltage Rating      :    115 V AC
Amperage Rating      :    15 A
Bolt Size      :    1/4 to 2 in
Reversing      :    Yes
Control Type      :    Heavy Duty Rotary Forward/Off/Reverse/Integral Foot Switch

APPLICATION INFO

Country of Origin      :    US
