TTC 08-203-240 D54 Coarse Pitch Non-Center Cutting Round Profile Single End Mill, 1-1/2 in Dia Cutter, 2 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 4-1/2 in OAL, TiN
TTC 08-203-240 D54 Coarse Pitch Non-Center Cutting Round Profile Single End Mill, 1-1/2 in Dia Cutter, 2 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 4-1/2 in OAL, TiN
TTC 08-203-240 D54 Coarse Pitch Non-Center Cutting Round Profile Single End Mill, 1-1/2 in Dia Cutter, 2 in Length of Cut, 6 Flutes, 1-1/4 in Dia Shank, 4-1/2 in OAL, TiN
- Brand: TTC
- Mfr# : 08-203-240
- Item # : MCT 08-203-240
- UPC #: 662995029870
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- For higher productivity
- Allows for higher feeds and speeds
- Extended life expectancy as much as 800%
DESCRIPTION

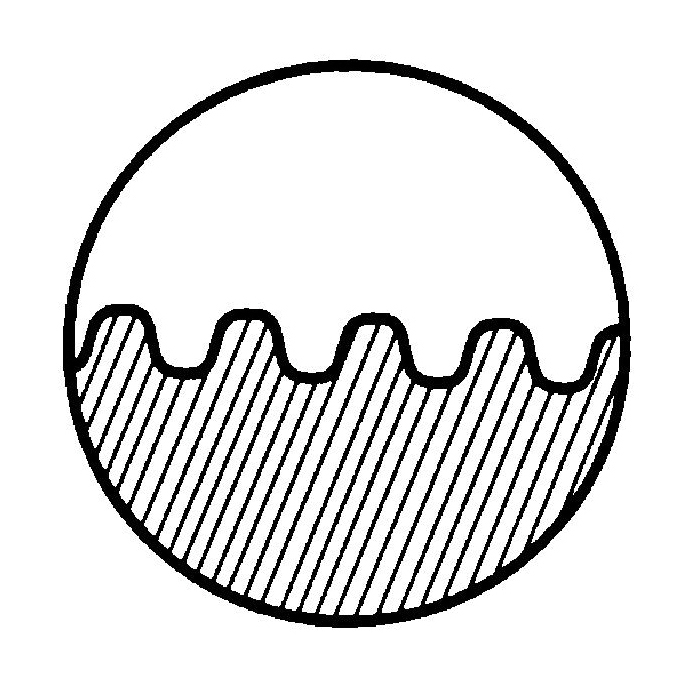

TTC End Mill, Coarse Pitch Non-Center Cutting Round Profile Single End, Series: Modle D54, 1-1/2 in Cutter Dia, 4-1/2 in Overall Length, 2 in Length of Cut, 6 Flutes, Knuckle Flute, 1-1/4 in Shank Dia, 30 deg Helix Angle, M42 HSS-Co 8, TiN
SPECIFICATIONS
| Type | : Coarse Pitch Non-Center Cutting Round Profile Single End |
| Series | : D54 |
| Cutter Diameter | : 1-1/2 in |
| Overall Length | : 4-1/2 in |
| Length of Cut | : 2 in |
| Number of Flutes | : 6 |

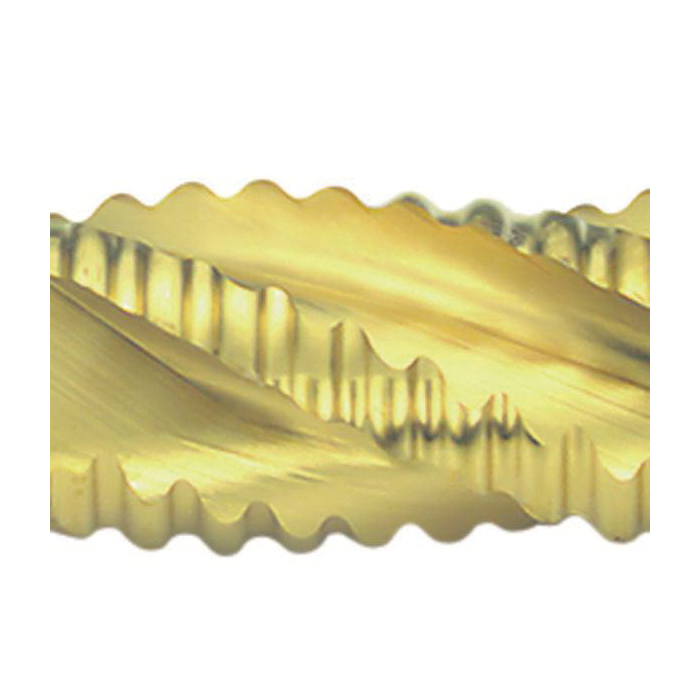

| Flute Type | : Knuckle |
| Shank Diameter | : 1-1/4 in |
| Helix Angle | : 30 deg |
| Material | : M42 HSS-Co 8 |
| Finish | : TiN |
APPLICATION INFO

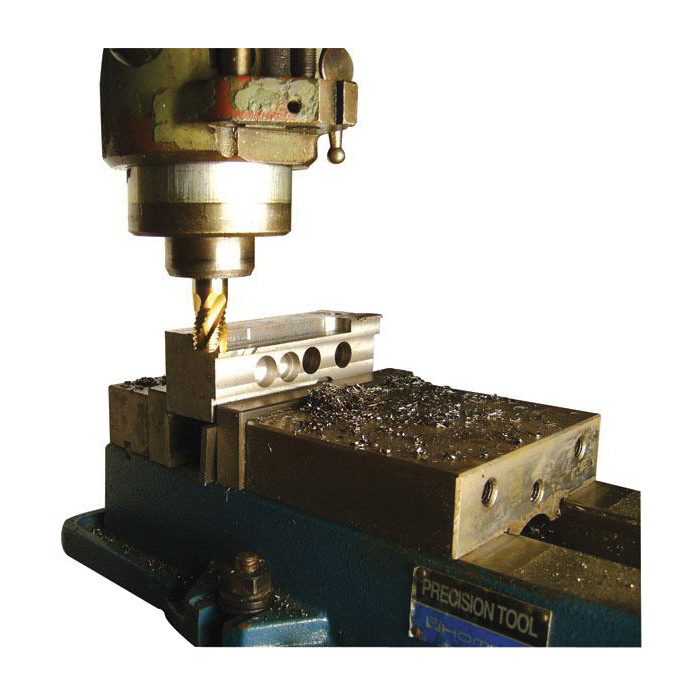

| Application | : For roughing, general purpose machining and heavy stock removal in deep slotting and side cut applications where high metal removal rates are required |
