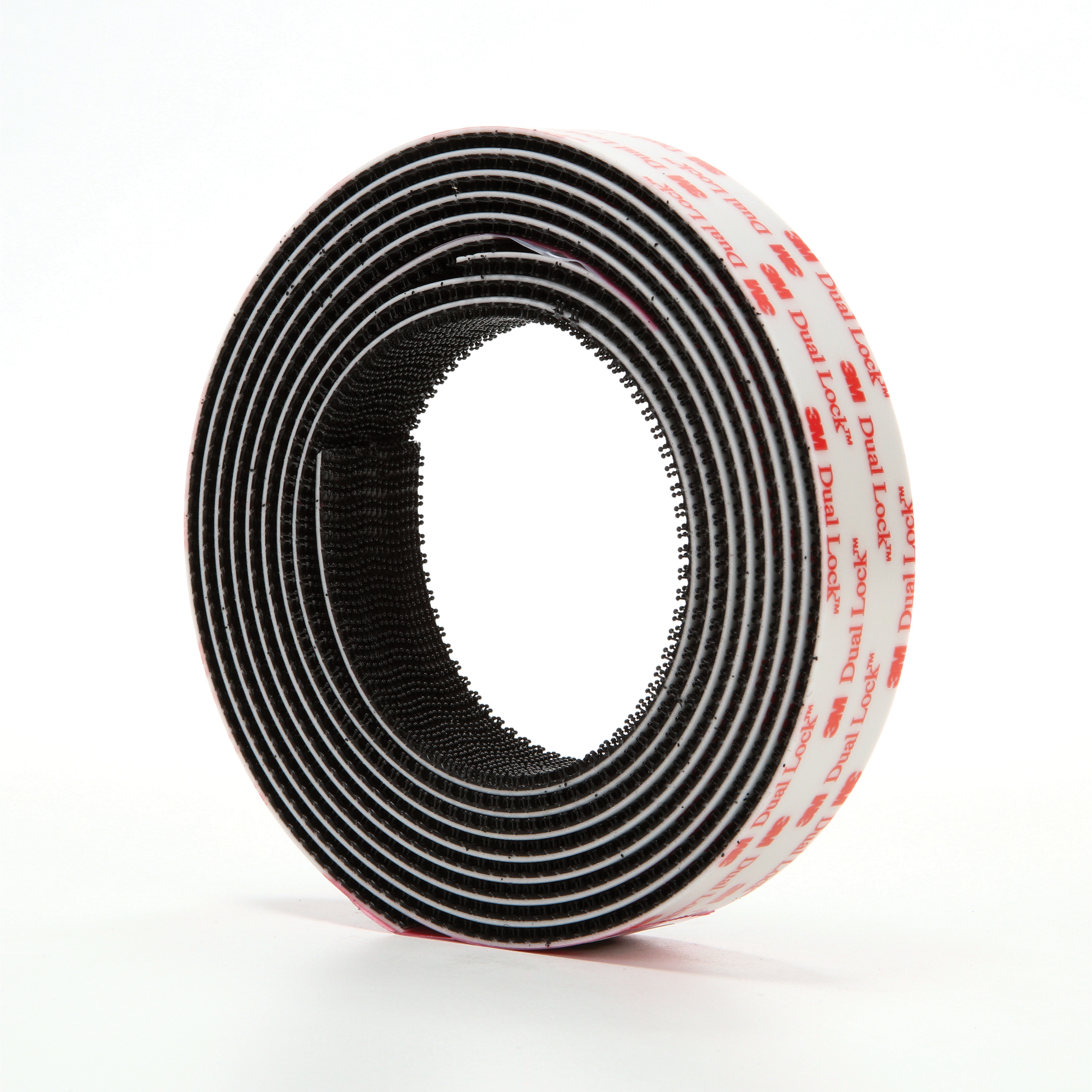

Dual Lock™ 7000144741 Type 250 Reclosable Fastener, 10 ft L x 1 in W, 0.23 in THK Engaged, Acrylic Adhesive, Black

Dual Lock™ 7000144741 Type 250 Reclosable Fastener, 10 ft L x 1 in W, 0.23 in THK Engaged, Acrylic Adhesive, Black

Dual Lock™ 7000144741 Type 250 Reclosable Fastener, 10 ft L x 1 in W, 0.23 in THK Engaged, Acrylic Adhesive, Black


  • Brand: Dual Lock™
  • Mfr# : 7000144741
  • Item # : MMM 97627
  • UPC #: 051111976296
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual_Lock_051111_97629_Catalog.pdf
  • link VIDEO LINK https://youtu.be/CllWfW1UHe4

FEATURES

  • Great for small jobs, prototyping and design evaluation
  • Black, interlocking mushroom shaped heads (250 stem density/sq-in) provide strong, reliable and durable fastening that can be opened and closed multiple times
  • Mates with type 170, type 250 or type 400 stem densities to provide different strength combinations
  • Strong fastener secures with an audible snap, verifying closure
  • Best suited for indoor and outdoor use

DESCRIPTION

3M™ Dual Lock™ reclosable fastener TB3550 is the convenient alternative to traditional fastening methods, such as screws, nuts or bolts. It is designed to deliver a durable, reclosable fastening solution (which can be opened and closed multiple times) that bonds to a variety of substrates including metals and plastics such as acrylics, polycarbonate and ABS. 3M™ Dual Lock™ reclosable fasteners are available in three stem densities to customize for the strength requirements of your project. We designed this fastener with a white, acrylic, conformable foam tape protected by a removable, film liner. This solid, pressure sensitive foam tape features a strong, durable bond that is heat, chemical and UV resistant. With 3M™ Dual Lock™ reclosable fastener TB3550, there is no need for any drilling, screwing or sewing tools which makes for quick installation. 3M™ Dual Lock™ reclosable fastener TB3550 consists of interlocking mushroom shaped heads that easily slide over each other, allowing for positioning of parts before being snapped together. This fastening process creates a durable attachment and provides fast product assembly with great design flexibility. Our reclosable fasteners can also engage with different stem densities for varying levels of strength and system performance. 3M™ Dual Lock™ reclosable fastener trial bags provide a simplified "go-to" selection that has proven successful for most common applications, along with just the right length. Hundreds of reattachments in a snap when two pieces of 3M™ Dual Lock™ reclosable fasteners mate, the stems flex and the mushroom heads slide past each other. After passing the opposing mating piece, the stems snap back into their original position and the opposing mushroom heads interlock. These fasteners can provide high tensile strength but can be opened by simply cleaving or peeling open the closure. This product is well suited for many indoor and outdoor applications where a high strength and versatile reclosable fastening system is required. Delivers long lasting performance. Not all design requirements are easily satisfied, but you can simplify your attachments. When you need a strong, reliable, yet removable closure, 3M™ Dual Lock™ reclosable fasteners are the easy alternative to traditional fastening methods such as screws, nuts or bolts.

Dual Lock™, 7000144741, Reclosable Fastener, Type 250, 10 ft Length, 1 in Width, 0.23 in THK Engaged, Black, Acrylic Adhesive, 200 deg F Maximum Operating, 250 sq-in Stem Density, Specifications Met: ASTM E-162/E-595/E-662

SPECIFICATIONS

Type      :    Mushroom Shaped Reclosable Trial Bag
Length      :    10 ft
Width      :    1 in
Engaged Thickness      :    0.23 in
Color      :    Black
Adhesive Material      :    Acrylic
Maximum Operating Temperature      :    200 deg F
Stem Density      :    250 sq-in
Specifications Met      :    ASTM E-162/E-595/E-662

APPLICATION INFO

Standard/Approvals      :    BSS-7239|FAR 25.853|FMVSS-302|Military Specification MIL-F-21840, Type II Class 1
Application      :    Access Panels, Graphic Attachment, Specialty Vehicles (Interior Attachments), General Industrial attachment and Small Components Applications
Country of Origin      :    US
