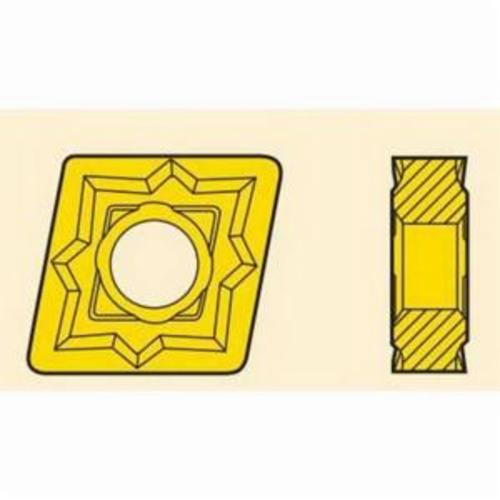

The Turning insert CNMG120408-MF1 TS2000 features a clearance angle major of 0 degrees and a negative type geometry. With a carbide PVD grade TS2000, the insert has four cutting edges and a corner radius of 0.8 mm. The cutting edge effective length is 12.1 mm, and the insert hand is neutral. This insert is designed primarily for machining superalloys and titanium as well as hard materials, with partial applicability to steel and stainless steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Seco Turning Insert, CNMG Insert, 120408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF1 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TS2000, ANSI Code: CNMP432-MF1 TS2000, ISO Code: CNMG120408-MF1 TS2000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiAlN/TiN, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys
