WIDIA METAL REMOVAL 2740362 CG-4 Center Cutting General Purpose Single End End Mill, 3/16 in Dia Cutter, 5/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 1-1/2 in OAL, Uncoated

WIDIA METAL REMOVAL 2740362 GRE M33440

WIDIA METAL REMOVAL 2740362 CG-4 Center Cutting General Purpose Single End End Mill, 3/16 in Dia Cutter, 5/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 1-1/2 in OAL, Uncoated

WIDIA METAL REMOVAL 2740362 CG-4 Center Cutting General Purpose Single End End Mill, 3/16 in Dia Cutter, 5/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 1-1/2 in OAL, Uncoated

  • Brand: WIDIA METAL REMOVAL
  • Mfr# : 2740362
  • Item # : GRE M33440
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • 10% cobalt submicron grain carbide substrate
  • Stiffer construction results in minimal deflection
  • 4-flute provide good wear resistance for excellent size control
  • Applicable on cast iron, steel and stainless steel

DESCRIPTION

WIDIA METAL REMOVAL End Mill, Center Cutting General Purpose Single End, Series: CG-4, 3/16 in Diameter Cutter, 1-1/2 in Overall Length, 5/16 in Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, ANSI Code: M33440, ISO Code: M33440, Solid Carbide, Uncoated

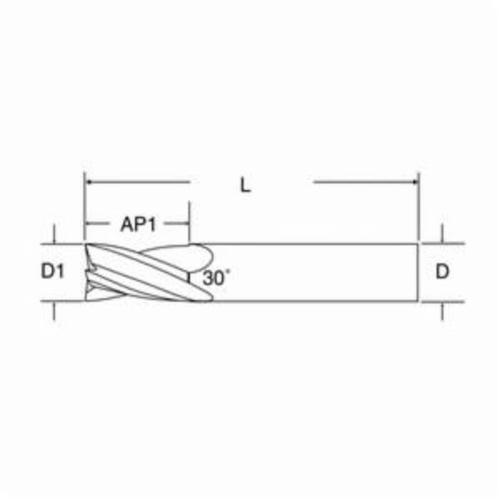

SPECIFICATIONS

Type      :    Center Cutting General Purpose Single End
Series      :    CG-4
Cutter Diameter      :    3/16 in
Overall Length      :    1-1/2 in
Length of Cut      :    5/16 in
Number of Flutes      :    4
Flute Type      :    Spiral
Shank Diameter      :    3/16 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
ANSI Code      :    M33440
ISO Code      :    M33440
Material      :    Solid Carbide
Finish      :    Uncoated

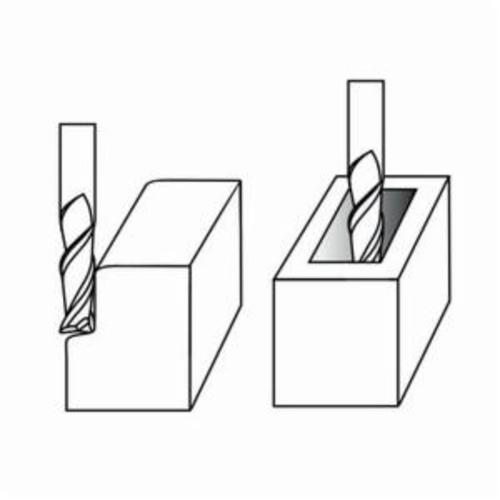

APPLICATION INFO

Application      :    For profiling and finishing applications
