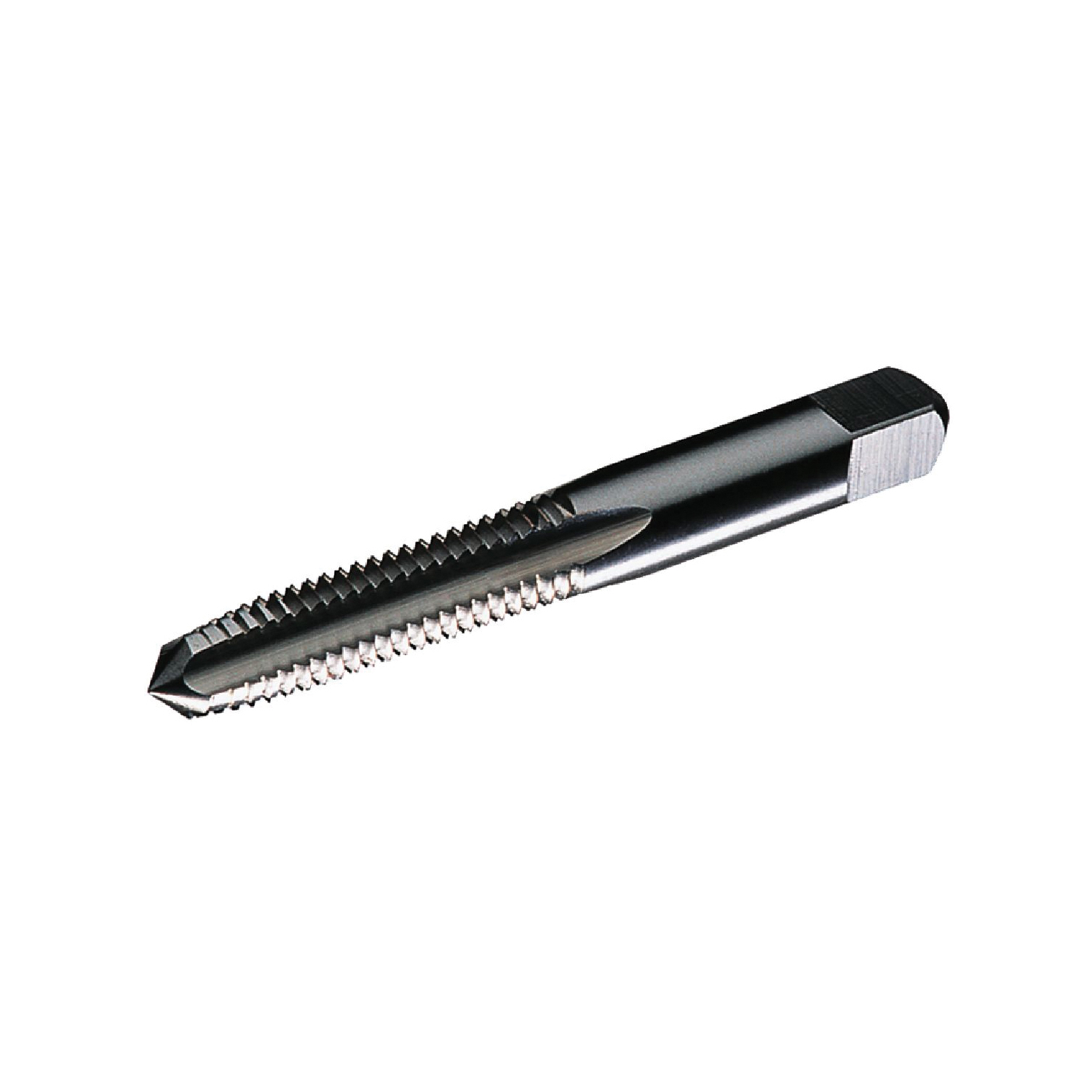

WIDIA GTD 2748787 5305 Straight Flute Hand Tap, Right Hand Cutting, #8-32 Thread, H3 Thread Limit, Tapered Chamfer, 4 Flutes, Uncoated, HSS
WIDIA GTD 2748787 5305 Straight Flute Hand Tap, Right Hand Cutting, #8-32 Thread, H3 Thread Limit, Tapered Chamfer, 4 Flutes, Uncoated, HSS
WIDIA GTD 2748787 5305 Straight Flute Hand Tap, Right Hand Cutting, #8-32 Thread, H3 Thread Limit, Tapered Chamfer, 4 Flutes, Uncoated, HSS
- Brand: WIDIA GTD
- Mfr# : 2748787
- Item # : GRE 15283
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Store chips in their flutes during threading, which protects the workpiece
DESCRIPTION
WIDIA GTD Straight Flute Hand Tap, Series: 5305, Measurement System: Imperial, UNC Thread Standard, #8-32 Thread, Tapered Chamfer, 4 Flutes, HSS, Uncoated, Right Hand Cutting Direction, 3/4 in Thread Length, 2.13 in Overall Length, 0.168 in Shank Diameter, H3 Thread Limit, Yes Through Coolant
SPECIFICATIONS
| Series | : 5305 |
| Measurement System | : Imperial |
| Thread Standard | : UNC |
| Thread Size | : #8-32 |
| Chamfer Type | : Tapered |
| Number of Flutes | : 4 |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Cutting Direction | : Right Hand |
| Thread Length | : 3/4 in |
| Overall Length | : 2.13 in |
| Shank Diameter | : 0.168 in |
| Thread Limit | : H3 |
| Through Coolant (Yes/No) | : Yes |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : For UNJ aerospace internal threading, through hole and blind hole in general machining applications |
| Country of Origin | : US |
