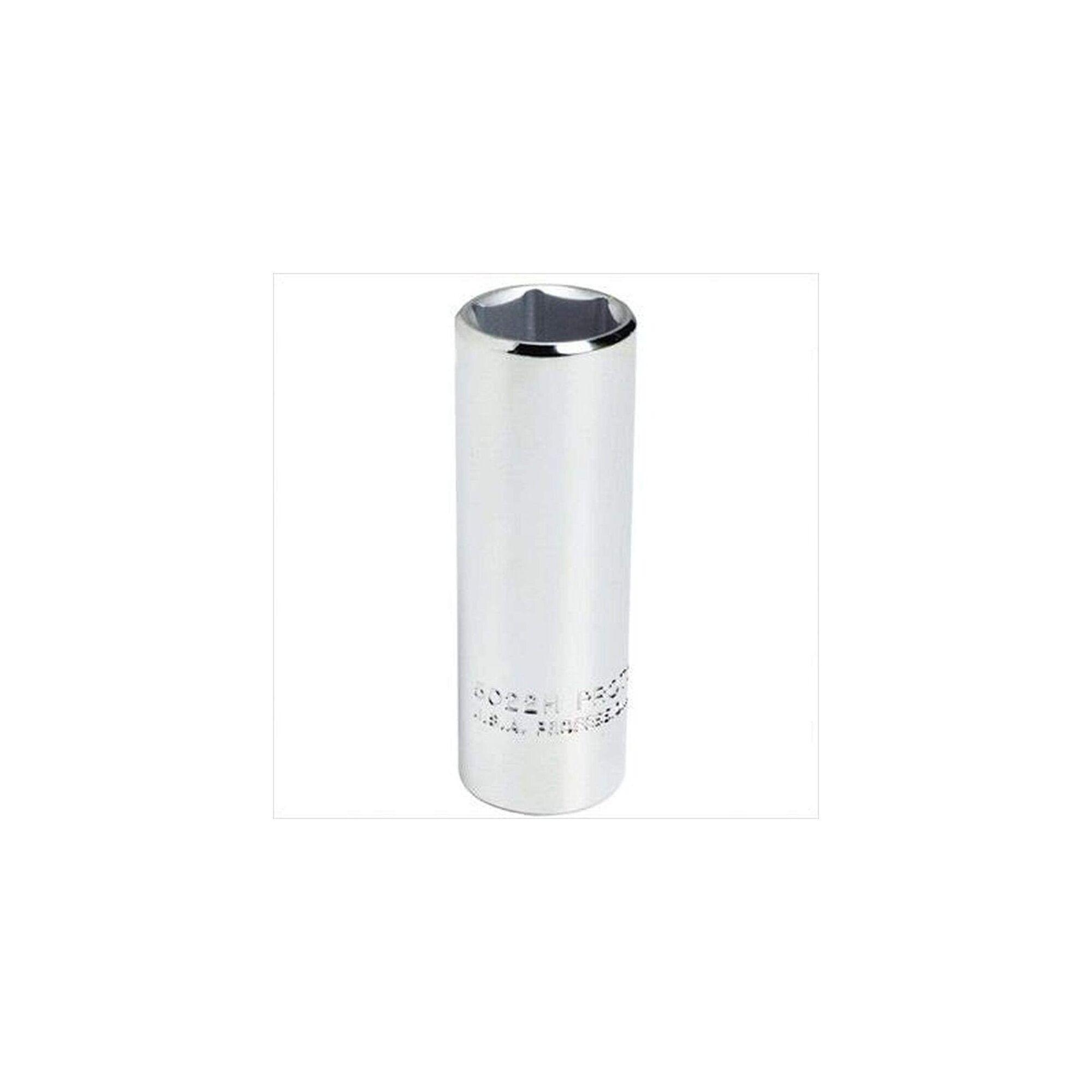

Proto® TorquePlus™ J5016H Deep Length Socket, Imperial, 3/8 in Square Drive, 1/2 in
Proto® TorquePlus™ J5016H Deep Length Socket, Imperial, 3/8 in Square Drive, 1/2 in
- Brand: Proto®
- Mfr# : J5016H
- Item # : STP J5016H
- UPC #: 662679160869
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- The TorquePlus™ design allows more torque to be put on the fastener while reducing fastener rounding
DESCRIPTION
Proto® TorquePlus™ Socket, Deep Length, No Impact Rated, Measurement System: Imperial, Square Drive, 3/8 in Drive, 1/2 in Socket, 2-1/64 in Overall Length, 33/64 in Opening Depth, 23/32 in Drive End Width, 23/32 in Socket End Width, Ball Locking, 6 Points, 1-11/16 in Bolt Clearance Depth, Alloy Steel, Full Polished
SPECIFICATIONS
| Type | : Deep Length |
| Impact Rated | : No |
| Measurement System | : Imperial |
| Drive Type | : Square |
| Drive Size | : 3/8 in |
| Socket Size | : 1/2 in |
| Overall Length | : 2-1/64 in |
| Opening Depth | : 33/64 in |
| Drive End Width | : 23/32 in |
| Socket End Width | : 23/32 in |
| Locking Type | : Ball |
| Number of Points | : 6 |
| Bolt Clearance Depth | : 1-11/16 in |
| Material | : Alloy Steel |
| Finish | : Full Polished |
APPLICATION INFO
| Standard/Approvals | : ANSI B107.1|ASME B107.110-2012|Federal Specification GGG-W-641E |
| Application | : For use on stubborn or damaged fasteners and also on fasteners made from soft materials |
| Country of Origin | : US |
