Cleveland® C59252 1092 CNC General Purpose Machine Forming Tap, #10-24 Thread, H6 Thread Limit
Cleveland® C59252 1092 CNC General Purpose Machine Forming Tap, #10-24 Thread, H6 Thread Limit
- Brand: Cleveland®
- Mfr# : C59252
- Item # : GRE C59252
- UPC #: 697334592525
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Ground thread for economical tapping
- Straight with square shank configuration
- Applicable on steel, stainless steel and non-ferrous materials
DESCRIPTION
Cleveland® Machine Forming Tap, CNC General Purpose, Series: 1092, Measurement System: Imperial, #10-24 Thread, UNC Thread Standard, Bottoming Chamfer, 1/2 in Thread Length, 2-3/8 in Overall Length, Right Hand Cutting Direction, Class of Fit: 2B/3B, 0.152 in Shank Diameter, 0.152 in Square, HSS, Bright, H6 Thread Limit

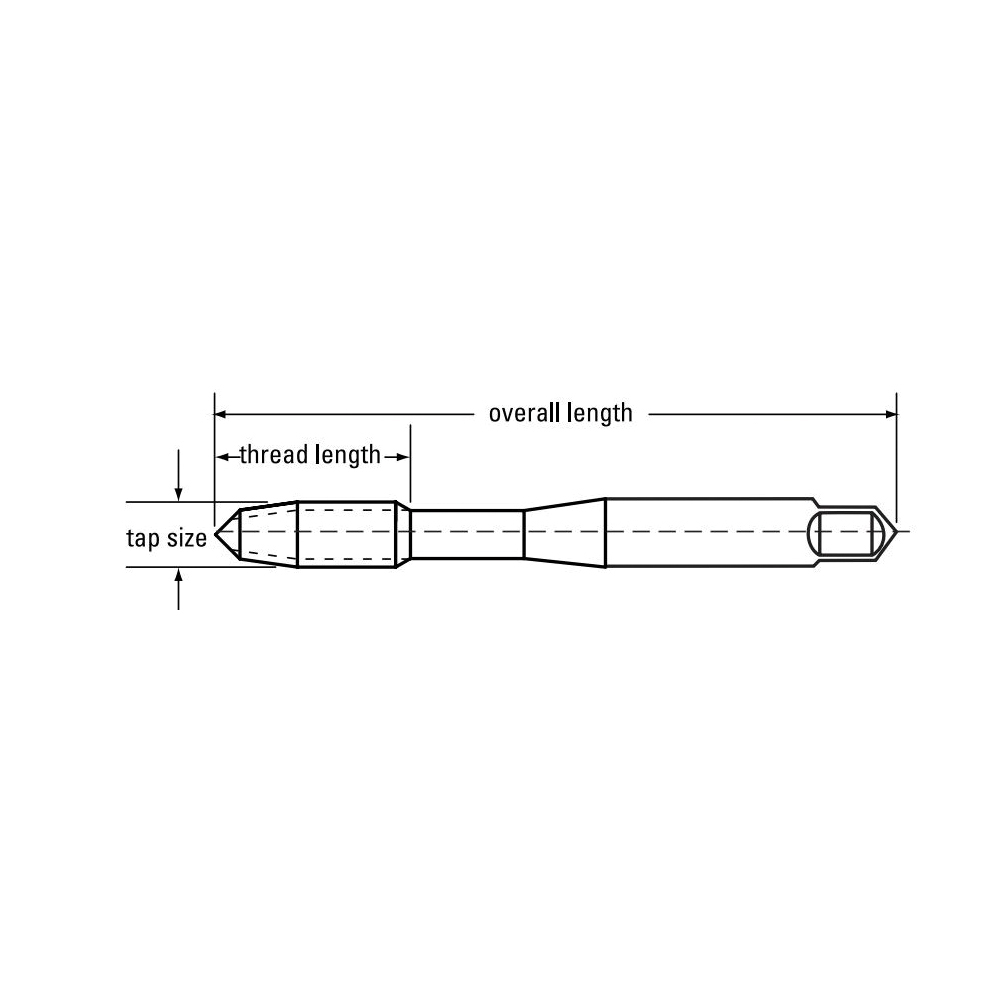

SPECIFICATIONS
| Type | : CNC General Purpose |
| Series | : 1092 |
| Measurement System | : Imperial |
| Thread Size | : #10-24 |
| Thread Standard | : UNC |
| Chamfer Type | : Bottoming |
| Thread Length | : 1/2 in |
| Overall Length | : 2-3/8 in |
| Cutting Direction | : Right Hand |
| Class of Fit | : 2B/3B |
| Shank Diameter | : 0.152 in |
| Square Size | : 0.152 in |
| Material | : HSS |
| Finish/Coating | : Bright |
| Thread Limit | : H6 |
APPLICATION INFO
| Standard/Approvals | : USCTI 302A |
| Application | : For bottoming hole applications |
| Country of Origin | : US |
