Klein® KTSB01 Step Drill Bit, 1/8 in Dia Min Hole, 1/2 in Dia Max Hole, Steel, 13 Hole Sizes, 3/8 in Shank
Klein® KTSB01 Step Drill Bit, 1/8 in Dia Min Hole, 1/2 in Dia Max Hole, Steel, 13 Hole Sizes, 3/8 in Shank
Klein® KTSB01 Step Drill Bit, 1/8 in Dia Min Hole, 1/2 in Dia Max Hole, Steel, 13 Hole Sizes, 3/8 in Shank
- Brand: Klein®
- Mfr# : KTSB01
- Item # : KLE KTSB01
- UPC #: 092644591013
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
Catalog
FEATURES

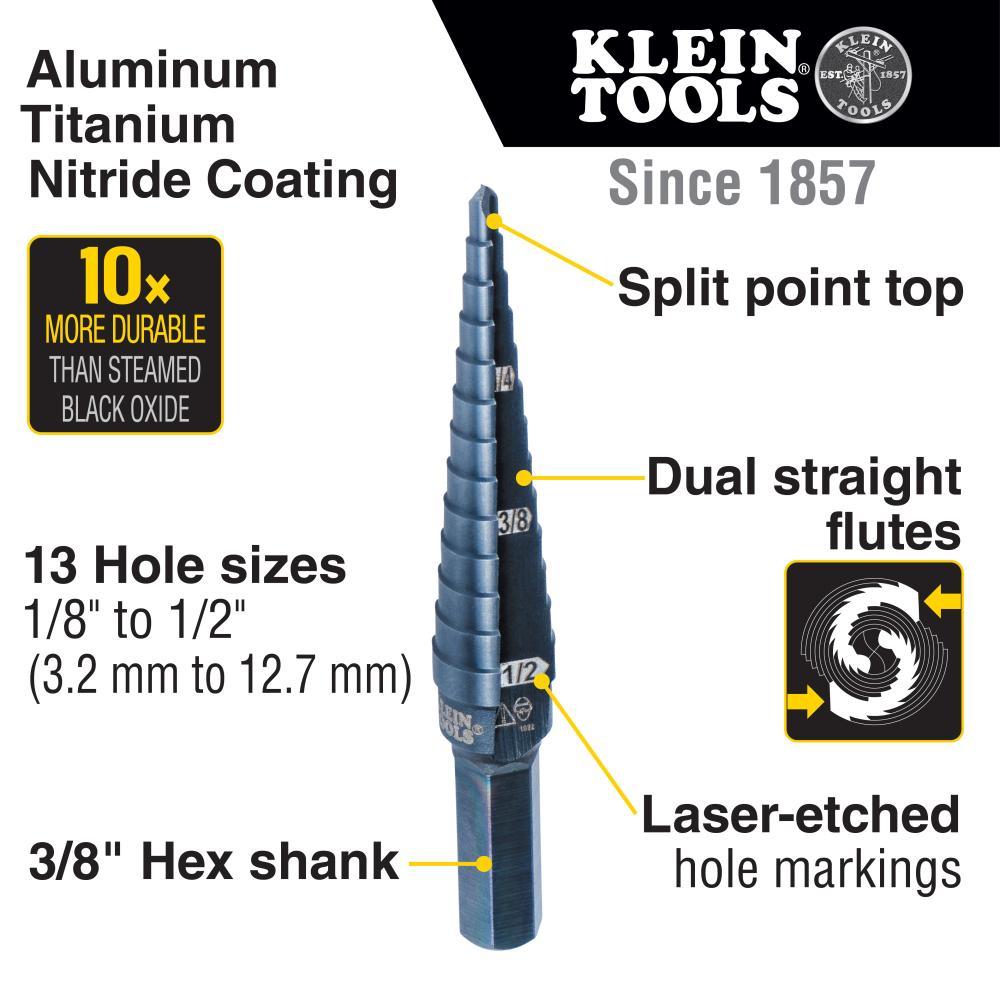

- Two flutes on this Step Drill Bit cut faster and keep bit cooler

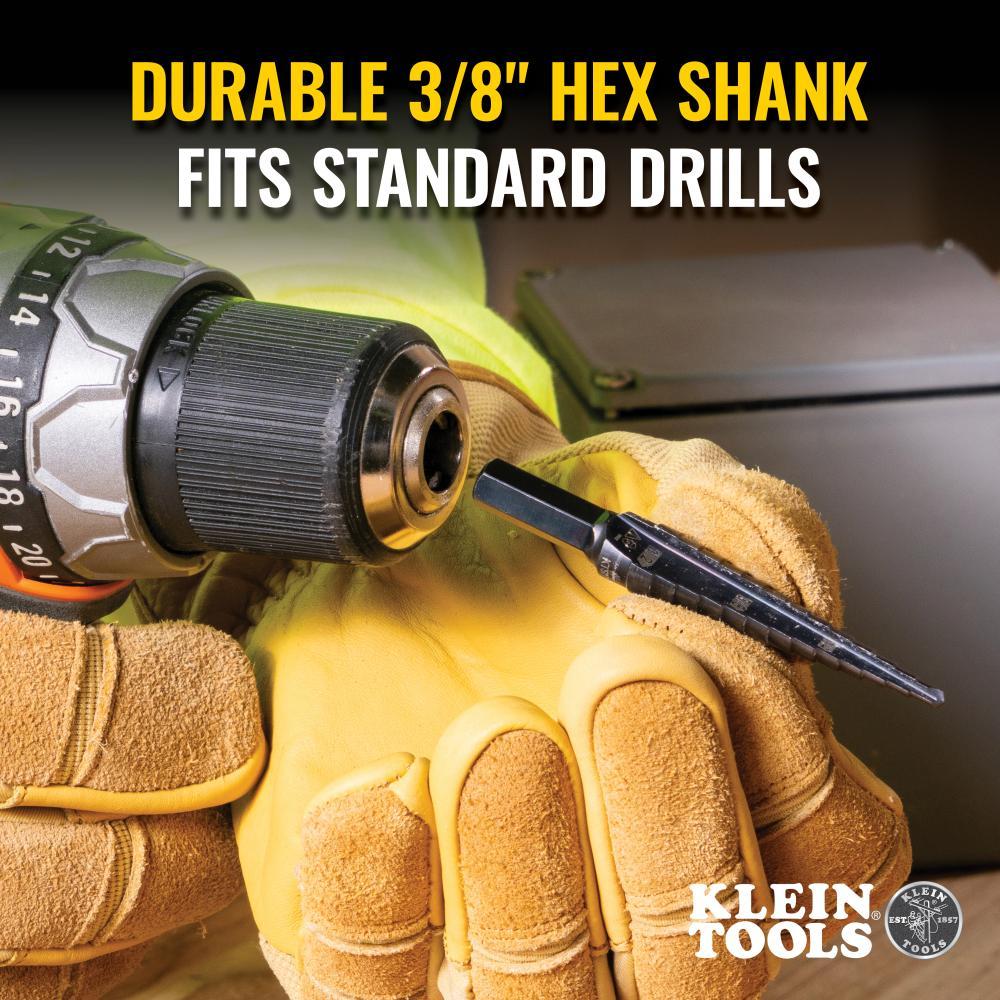

- Thick 3/8 in hex shank provides a firm, positive grip and won't spin out in the drill
- Fast-starting, non-walking drill tip
- High visibility silver step targets for primary hole sizes
- Step bits are coated with aluminum titanium nitride and are 10 times more durable than steamed black oxide coating for longer bit life
- Double, straight flute removes chips for clean cuts and drilling
- Laser markings are easy to read for quick size identification
DESCRIPTION

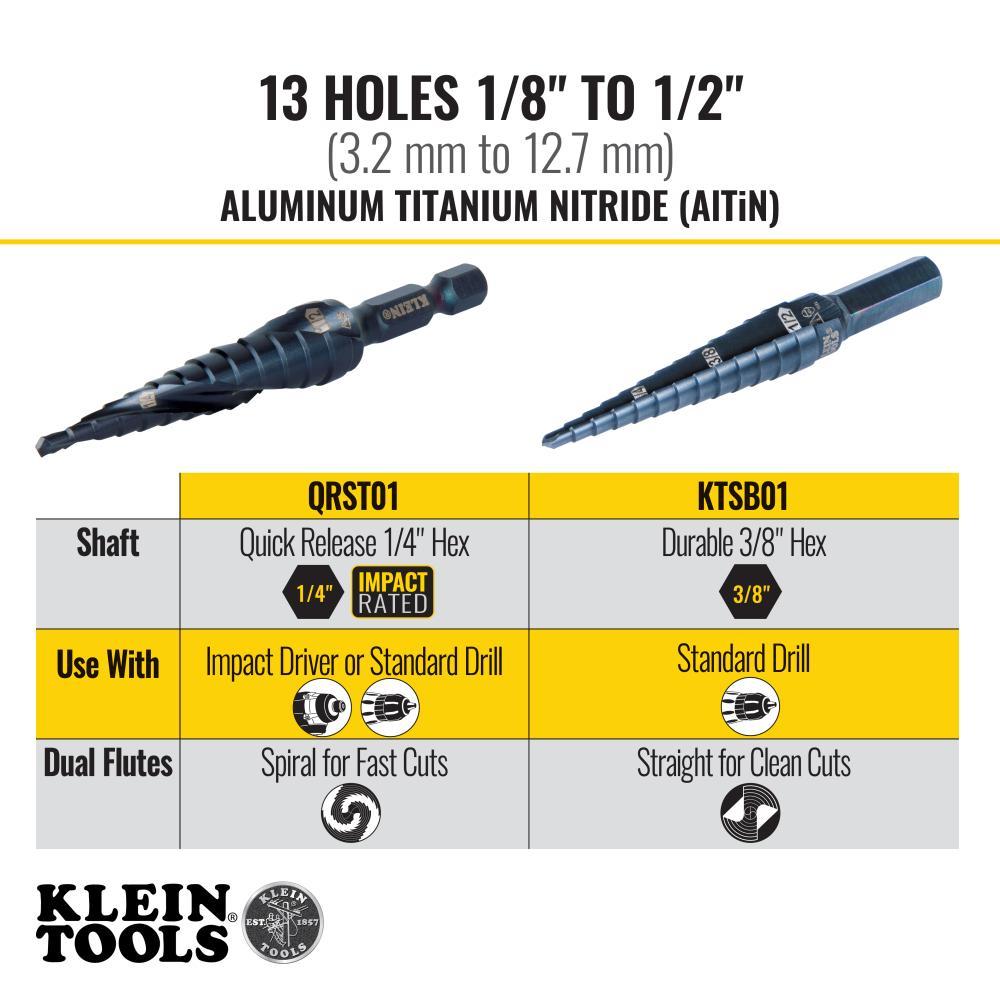

Straight, Double Fluted Step Drill Bits from Klein Tools provide cleaner cutting and drilling. The aluminum titanium coating is 10 times more durable than steamed black oxide for longer bit life. 3/8-Inch hex shank is durable, and has a firm, positive grip. Laser-etched markings provide quick size identification on primary holes. This step bit has 13-hole sizes from 1/8-Inch to 1/2-Inch (3.2 to 12.7 mm).
Klein® Step Drill Bit, Imperial, #1, 1/8 in Minimum Hole Dia, 1/2 in Maximum Hole Dia, 4.77 in Overall Length, 1/32 in Step Depth, 13 Hole Sizes, 2 Flutes, 3/8 in Shank, Hex Shank, Steel
SPECIFICATIONS
| Drill Diameter Measurement System | : Imperial |
| Letter/Wire Size | : #1 |
| Minimum Hole Diameter | : 1/8 in |
| Maximum Hole Diameter | : 1/2 in |
| Overall Length | : 4.77 in |
| Step Depth | : 1/32 in |
| Number of Hole Sizes | : 13 |
| Number of Flutes | : 2 |
| Shank Size | : 3/8 in |
| Shank Type | : Hex |
| Material | : Steel |
APPLICATION INFO
| Standard/Approvals | : PROP65: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information |
| Country of Origin | : CN |
