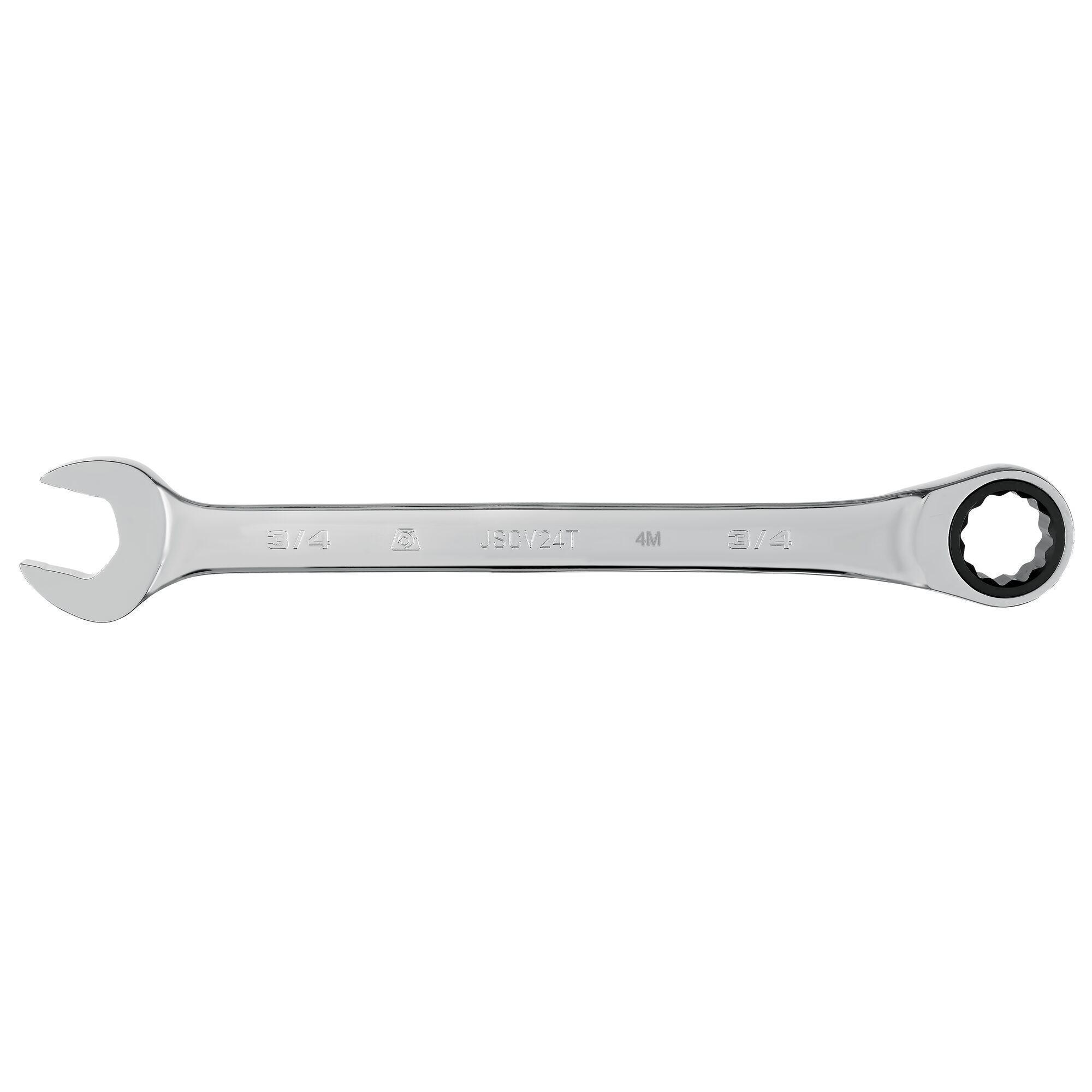

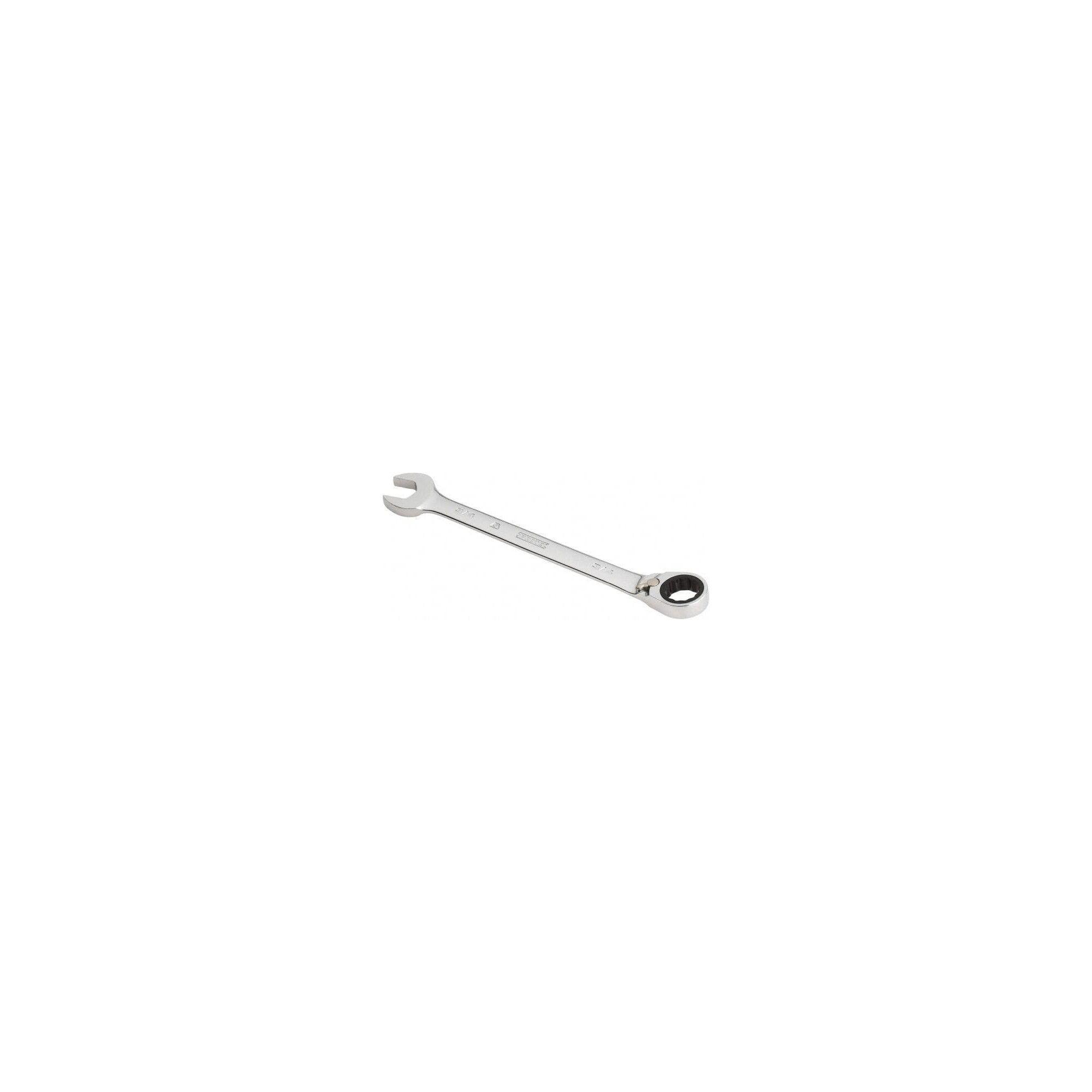

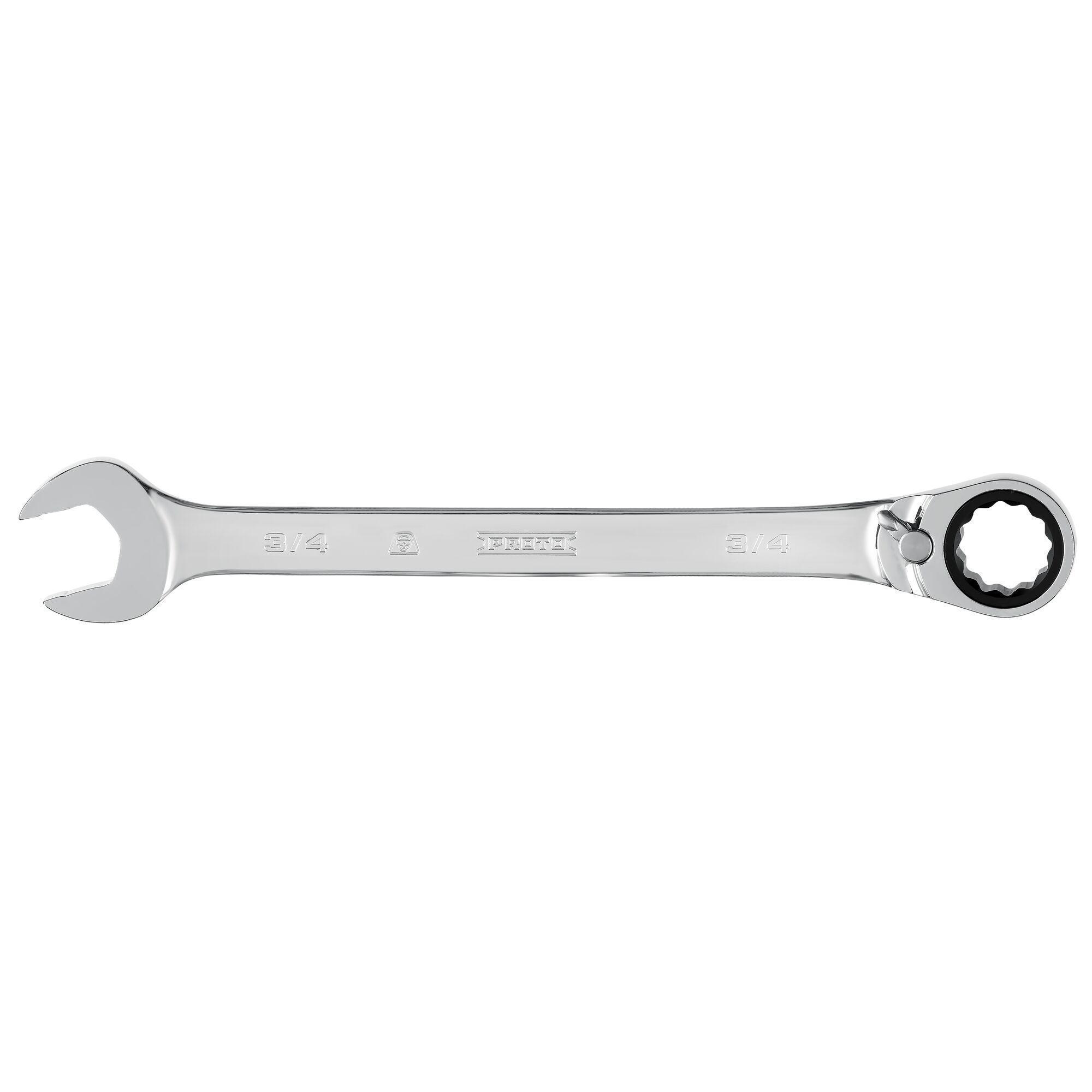

Proto® JSCV24T Reversible Spline Combination Wrench, 3/4 in Wrench, 12 Points, 15 deg Offset, 9-3/4 in OAL, Forged Steel, Full Polished, ASME Specified

Proto® JSCV24T STP JSCV24T

Proto® JSCV24T Reversible Spline Combination Wrench, 3/4 in Wrench, 12 Points, 15 deg Offset, 9-3/4 in OAL, Forged Steel, Full Polished, ASME Specified

Proto® JSCV24T Reversible Spline Combination Wrench, 3/4 in Wrench, 12 Points, 15 deg Offset, 9-3/4 in OAL, Forged Steel, Full Polished, ASME Specified

  • Brand: Proto®
  • Mfr# : JSCV24T
  • Item # : STP JSCV24T
  • UPC #: 662679114534
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Fractional spline wrenches can be used on fractional 4, 6, 12 point spline and Torx fasteners
  • Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
  • Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
  • The high contact surface area which is away from fastener points enables turning of highly rounded fasteners

DESCRIPTION

Proto® Combination Wrench, Reversible Spline, Measurement System: Imperial, Ratcheting Wrench, 3/4 in Wrench Opening, 12 Points, 72 Geared Teeth, 9-3/4 in Overall Length, 15 deg Offset, 1-9/16 in Open End Width, 1/4 in Open End Thickness, 1-21/64 in Box End Width, 1/4 in Box End Thickness, Specifications Met: ASME Specified, Forged Steel, Full Polished

SPECIFICATIONS

Type      :    Reversible Spline
Measurement System      :    Imperial
Wrench Type      :    Ratcheting
Wrench Opening      :    3/4 in
Number of Points      :    12
Number of Geared Teeth      :    72
Overall Length      :    9-3/4 in
Offset Angle      :    15 deg
Open End Width      :    1-9/16 in
Open End Thickness      :    1/4 in
Box End Width      :    1-21/64 in
Box End Thickness      :    1/4 in
Specifications Met      :    ASME Specified
Material      :    Forged Steel
Finish/Coating      :    Full Polished

APPLICATION INFO

Country of Origin      :    TW
