The Turning insert DNMG150408-MR4 TS2500 features a negative type with a clearance angle major of 0 degrees. It is made from a carbide PVD grade TS2500. The insert has four cutting edges and a corner radius of 0.8 mm. With a cutting edge effective length of 14.7 mm, the insert is designed with a neutral hand orientation. Its main application area includes superalloys and titanium, with partial applicability to stainless steel and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

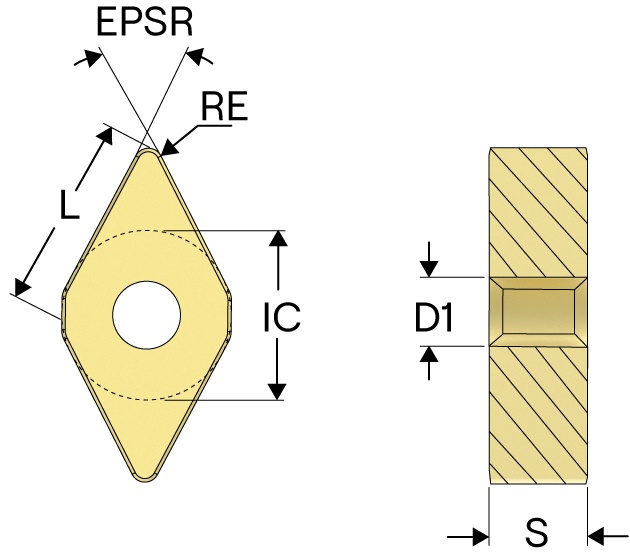

Seco Turning Insert, DNMG Insert, 150408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Negative Rake, MR4 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: TS2500, ANSI Code: DNMG432-MR4 TS2500, ISO Code: DNMG150408-MR4 TS2500, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: S, For Use On: Super Alloys and Titanium
